G10 Installation Guide 7.13.2 69
4
Power On G10 and Configure Network Connectivity
Rev. 005-140228
3. Open a Web browser. In the Web browser Address field, enter http://
172.31.128.1/ and press Enter. A login page appears (Figure 4.10).

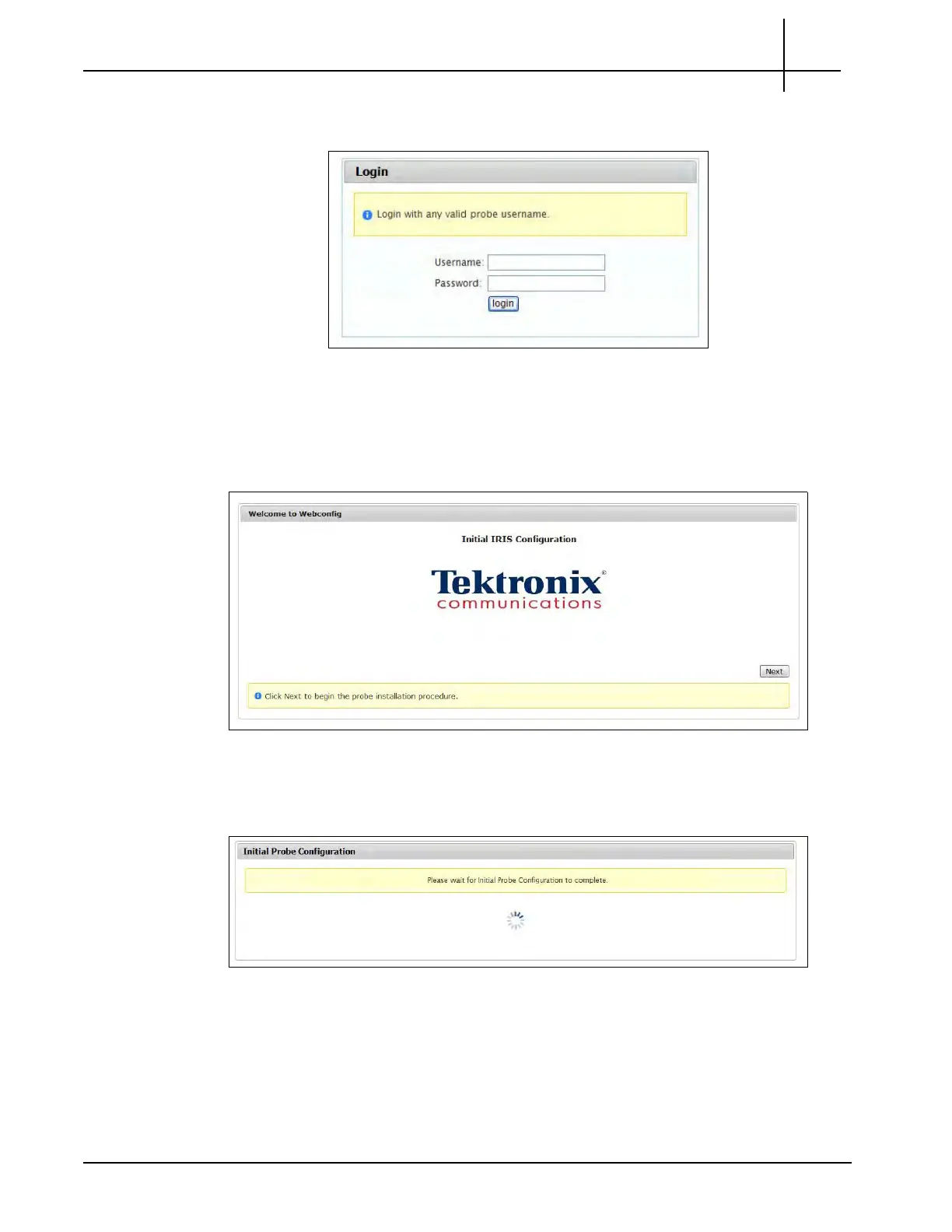

Figure 4.10 - Probe Installation GUI
4. Log in using the user ID and password provided by Tektronix for probe
configu
r
ation.
5. The following Web page appears (Figure 4.11). Click the Next button.
Figure 4.11 - Probe Installation GUI
The software scans the probe (Figure 4.12) to obtain the G10 configuration
format (standalone or multi-chassis).
Figure 4.12 - Initial Probe Scan
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
