G10 Installation Guide 7.13.2 70
4
Power On G10 and Configure Network Connectivity
Rev. 005-140228
6. After the scan completes, the following Web page appears (Figure 4.13). The
fields will either be blank or display the probe configuration data obtained from
the last scan. T
o clear values from all fields, click the Reset button.

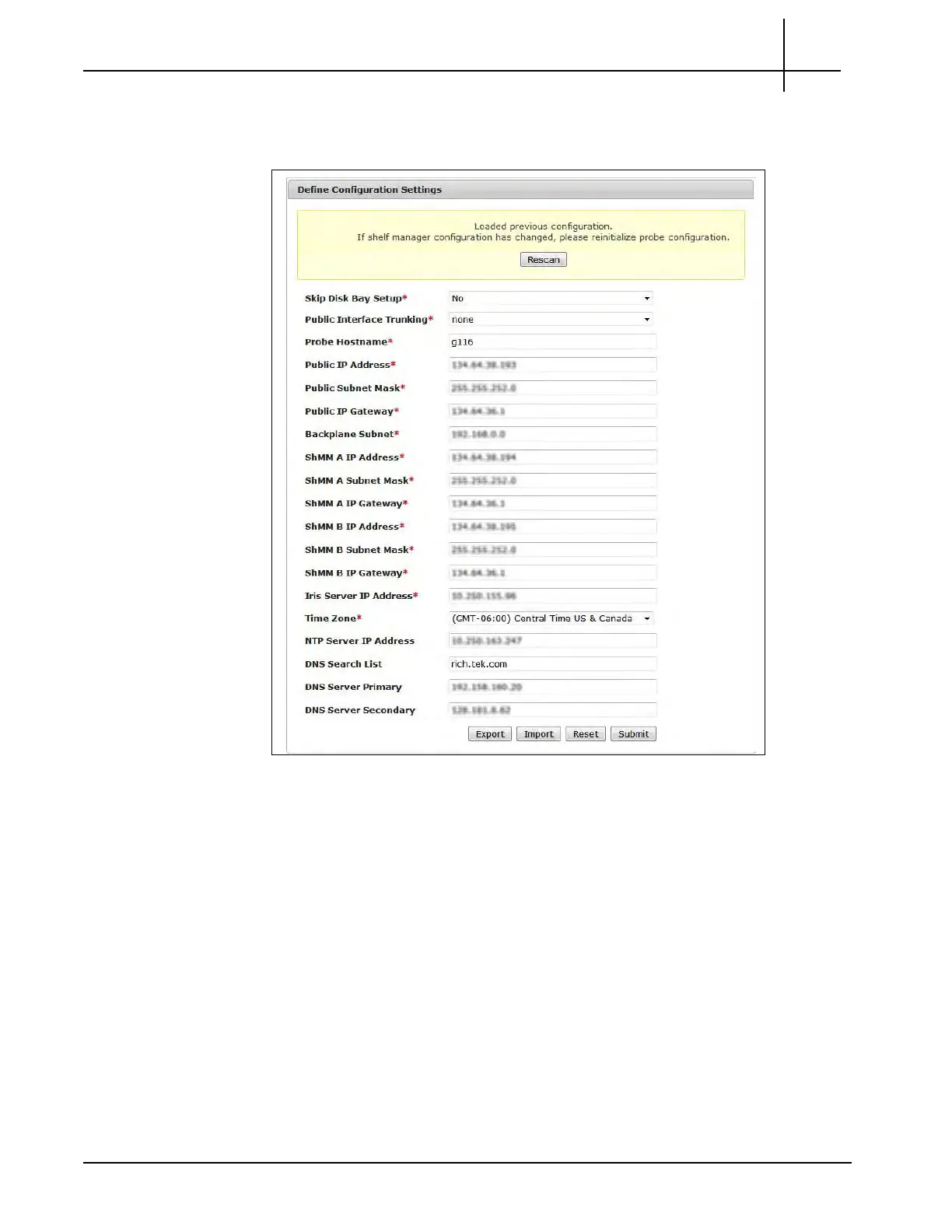

Figure 4.13 - Probe Installati
on GUI - System Information
7. Enter the required information for each field for your net
work. Refer to Network
Connectivity Parameters for details. You can click the Export button
to save the
data to a probesetup.txt comma-separated v
alue (CSV) file for later recall. Click
the Import button to populate the fields with previously saved configuration
settings.
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
