G10 Installation Guide 7.13.2 95
A
Rev. 005-140228

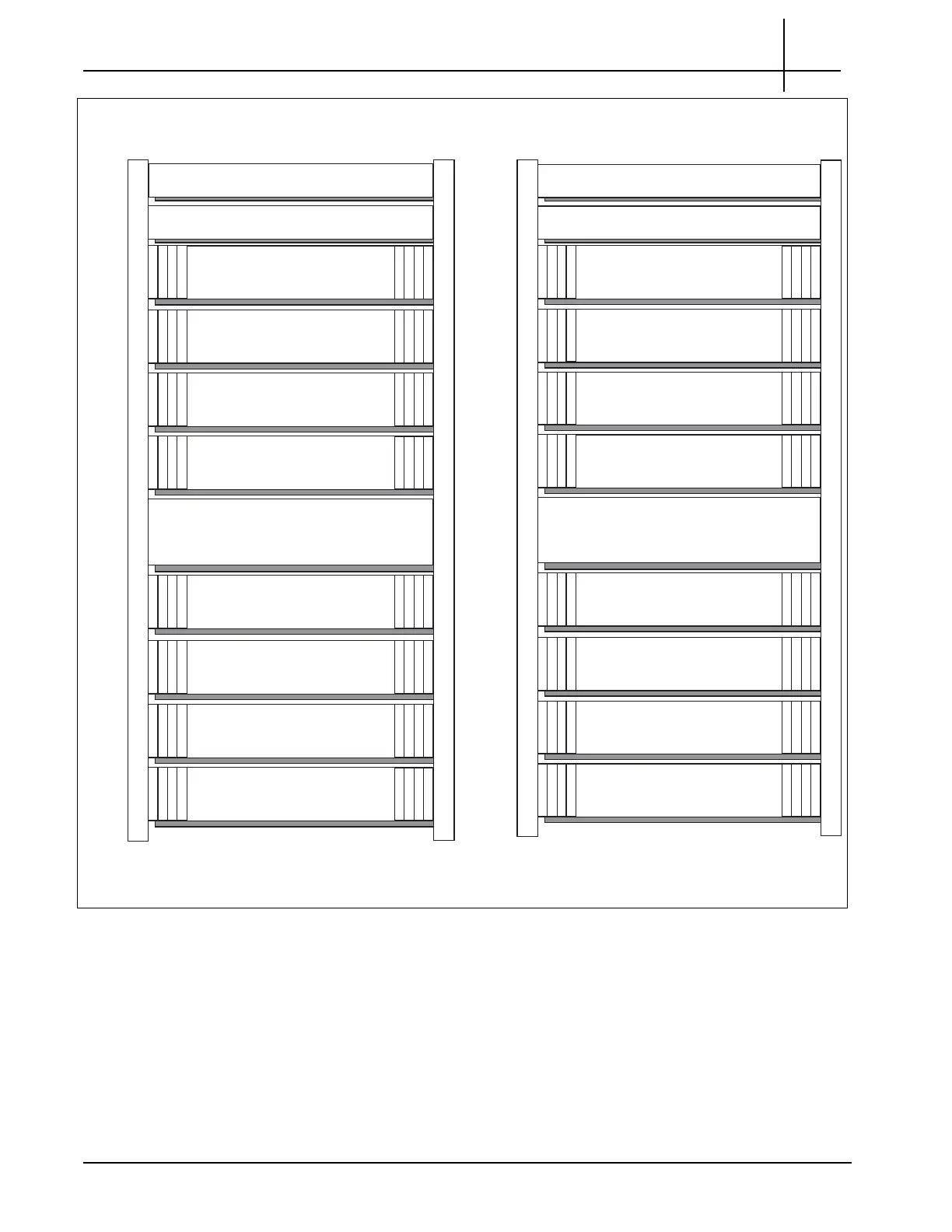

Figure A.2 - Example Expanded Storage Enclosure Rack Installation
G10 Probe
Fuse Panel
SA200R Controller Enclosure 0
3U
2U
1U
SA200J Expansion Enclosure 3
SA200J Expansion Enclosure 2
SA200J Expansion Enclosure 1
SA200J Expansion Enclosure 0
SA200J Expansion Enclosure 6
SA200J Expansion Enclosure 5
SA200J Expansion Enclosure 4
2U
2U
2U
1U
2U
2U
2U
2U
Fuse Panel
*SA200R controller supports up to seven expansion enclosures.
SA200R Configuration SA100R Configuration
G10 Probe
Fuse Panel
SA100R Controller Enclosure 0
3U
2U
1U
SA100R Controller Enclosure 1
SA100J Expansion Enclosure 2
SA100J Expansion Enclosure 1
SA100J Expansion Enclosure 0
SA100J Expansion Enclosure 5
SA100J Expansion Enclosure 4
SA100J Expansion Enclosure 3
2U
2U
2U
1U
2U
2U
2U
2U
Fuse Panel
*SA100R controllers support up to three expansion enclosures.
