Waveform display settings
Displaying and removing a waveform
Use this procedure to turn on or off the display of each channel’s waveform.

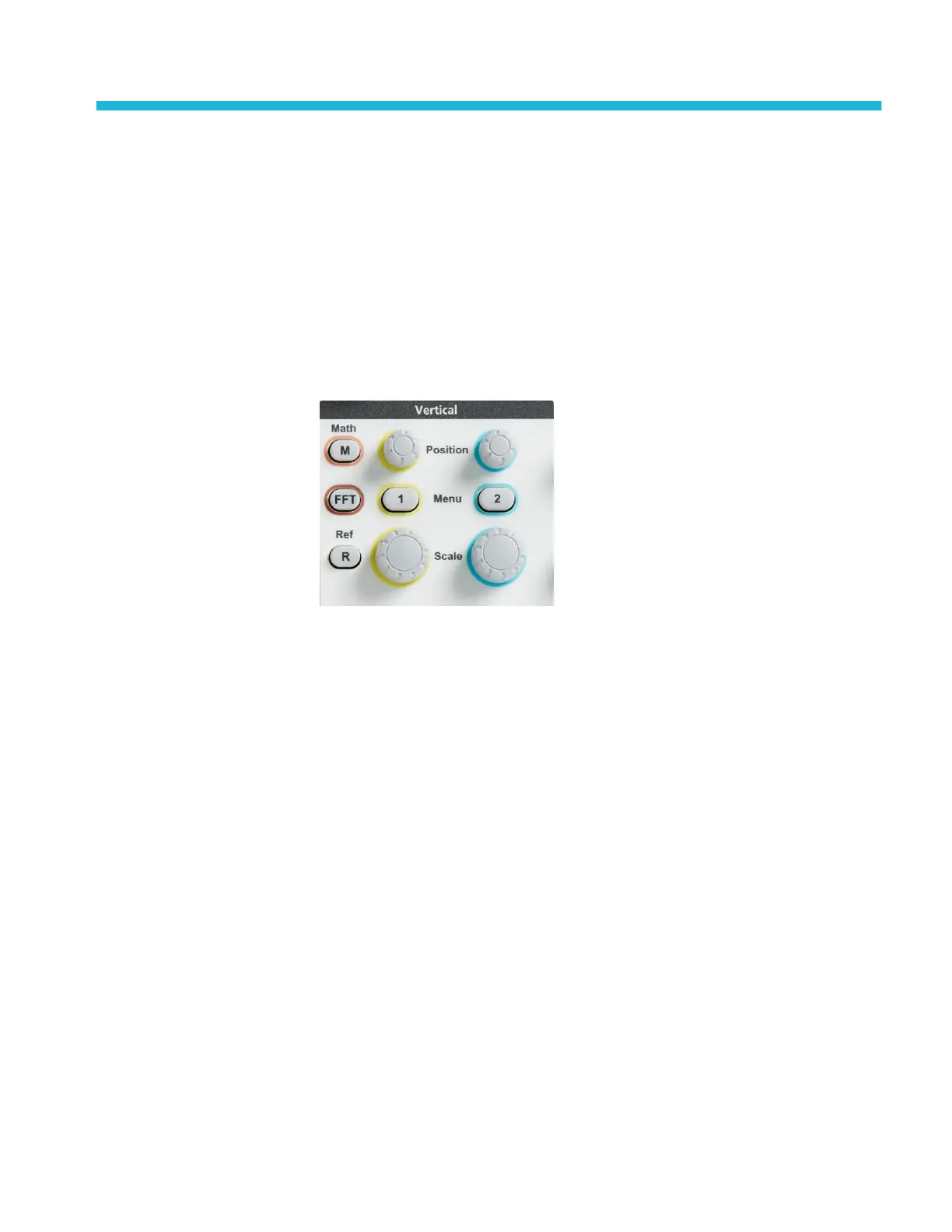

To add or remove a waveform from the display, push the corresponding front-
panel channel Menu button.
If the selected channel is already active, pushing the channel Menu button
removes the waveform.
If the channel is not active, pushing the channel Menu button selects that
channel; another push removes the waveform from the screen.
If more than one waveform is displayed on the screen, selecting a channel brings
the corresponding waveform on top of all other waveforms.
TBS1000C Series Oscilloscopes User Manual 79
