Setting the acquisition mode
Use the Acquisition mode to set how the oscilloscope uses the sampled data
points in each acquisition interval to create and display a waveform. See
Acquisition mode concepts on page 37.

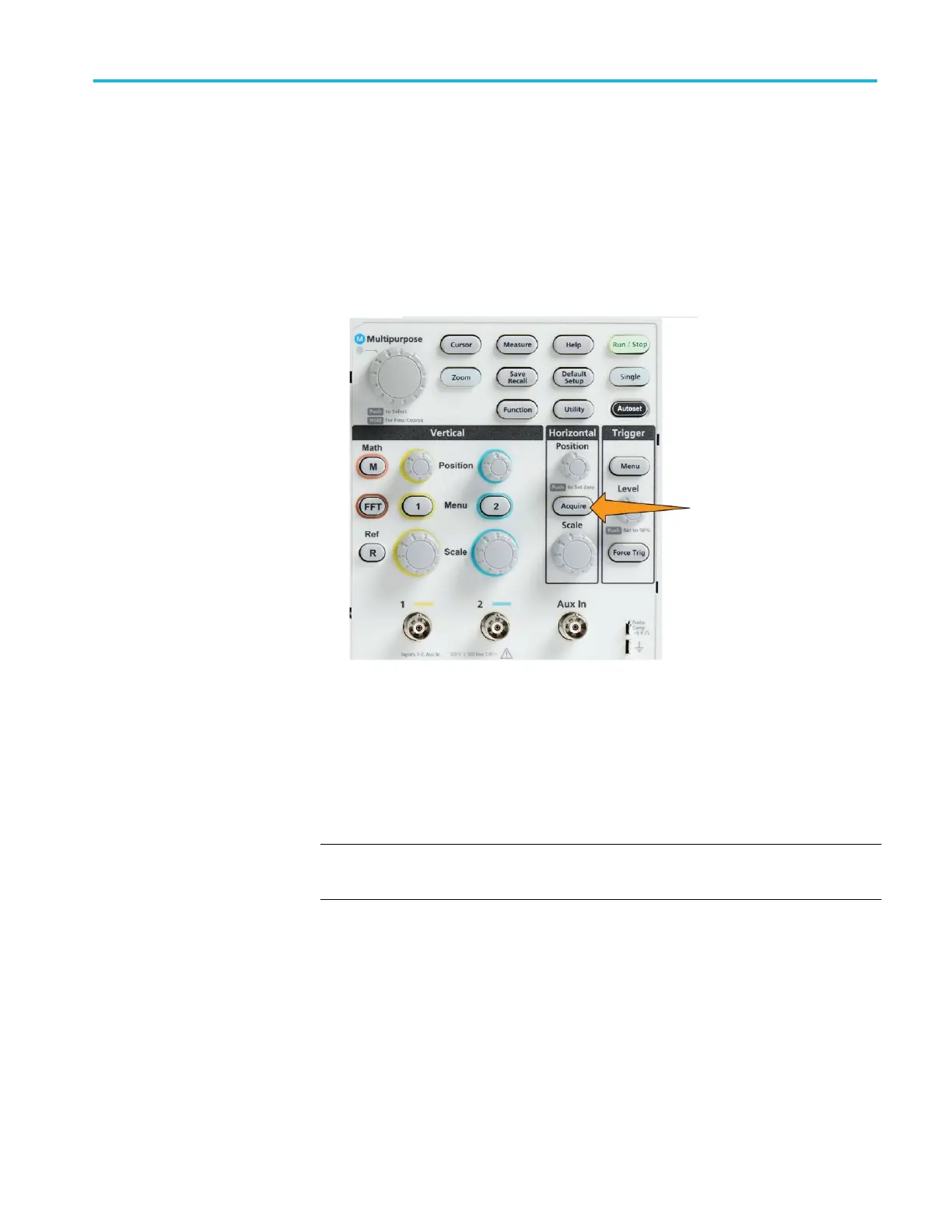

1. Push Acquire.
2. Push the Mode side-menu button.
3. Turn the Multipurpose knob to select a mode (Sample, Peak Detect, Hi res,
Average), then click the Multipurpose knob to enable that mode.
4. If you select Average, use the Multipurpose knob to select of how many
acquisitions to average to create the waveform.
NOTE. Sampling frequency for Peak Detect and Hi res modes are limited to
250MS/s. You can zoom in to view the waveforms in lower horizontal scales.
Acquisition setup
TBS1000C Series Oscilloscopes User Manual 71
