Standard accessories

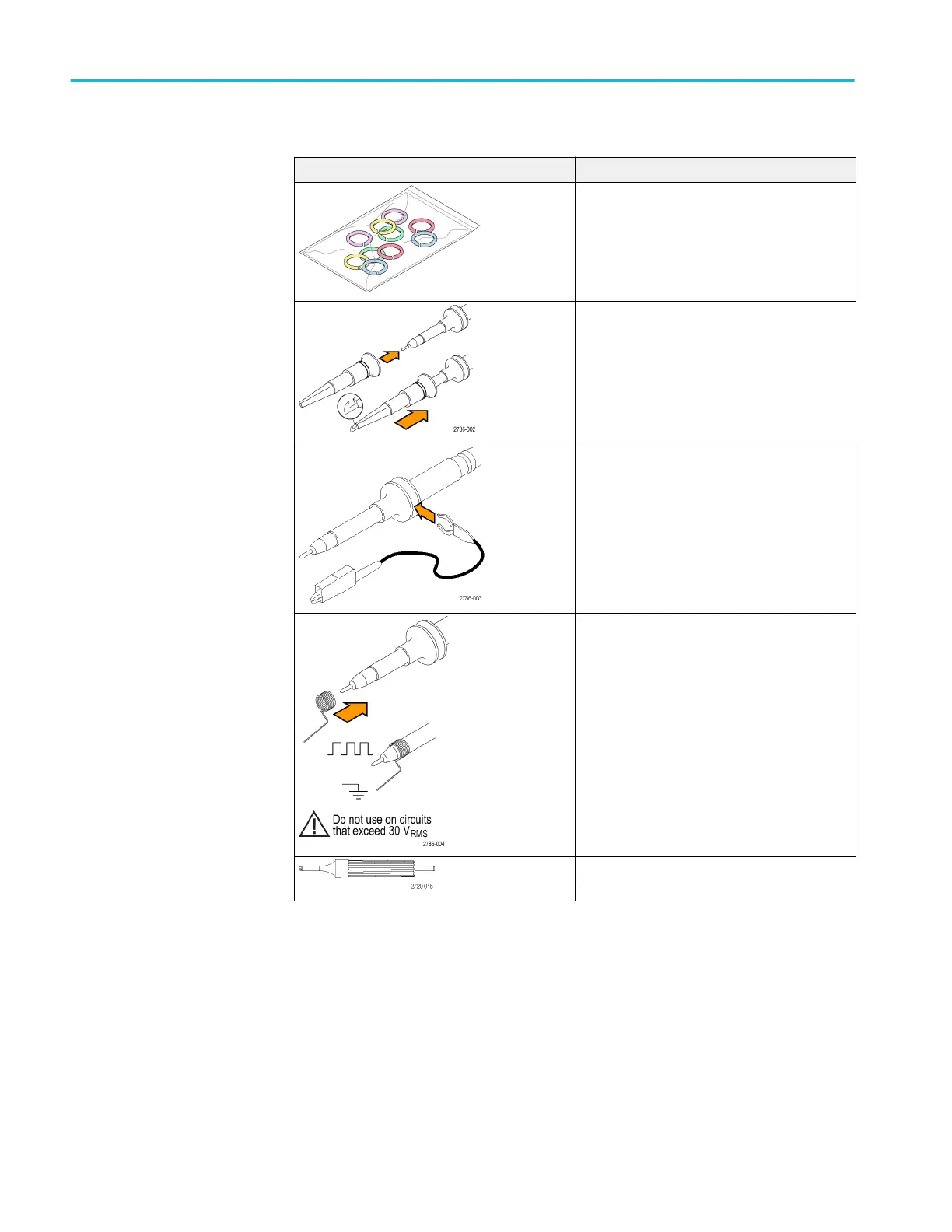

The accessories included with the probe are shown below.
Item Description
Color bands
Use these bands to identify the oscilloscope
channel at the probe head.
Reorder Tektronix part number 016-0633-xx
(5 pairs)
Hook tip
Press the hook tip onto probe tip and then clamp
the hook onto the circuit.
Reorder Tektronix part number 013-0362-xx
Ground lead, with alligator clip
Secure the lead to the probe head ground and
then to your circuit ground.
Reorder Tektronix part number 196-3521-xx
Ground spring
The ground spring minimizes aberrations on
high-frequency signals caused by the
inductance of the ground path, giving you
measurements with good signal fidelity.
Attach the spring to the ground band on the
probe tip. You can bend the spring out to
~0.75 in. away from the signal test point.
Reorder Tektronix part number 016-2028-xx
(2 ea.)
Adjustment tool
Reorder Tektronix part number 003-1433-xx
Operating requirements
10 TBS1000C Series Oscilloscopes User Manual
