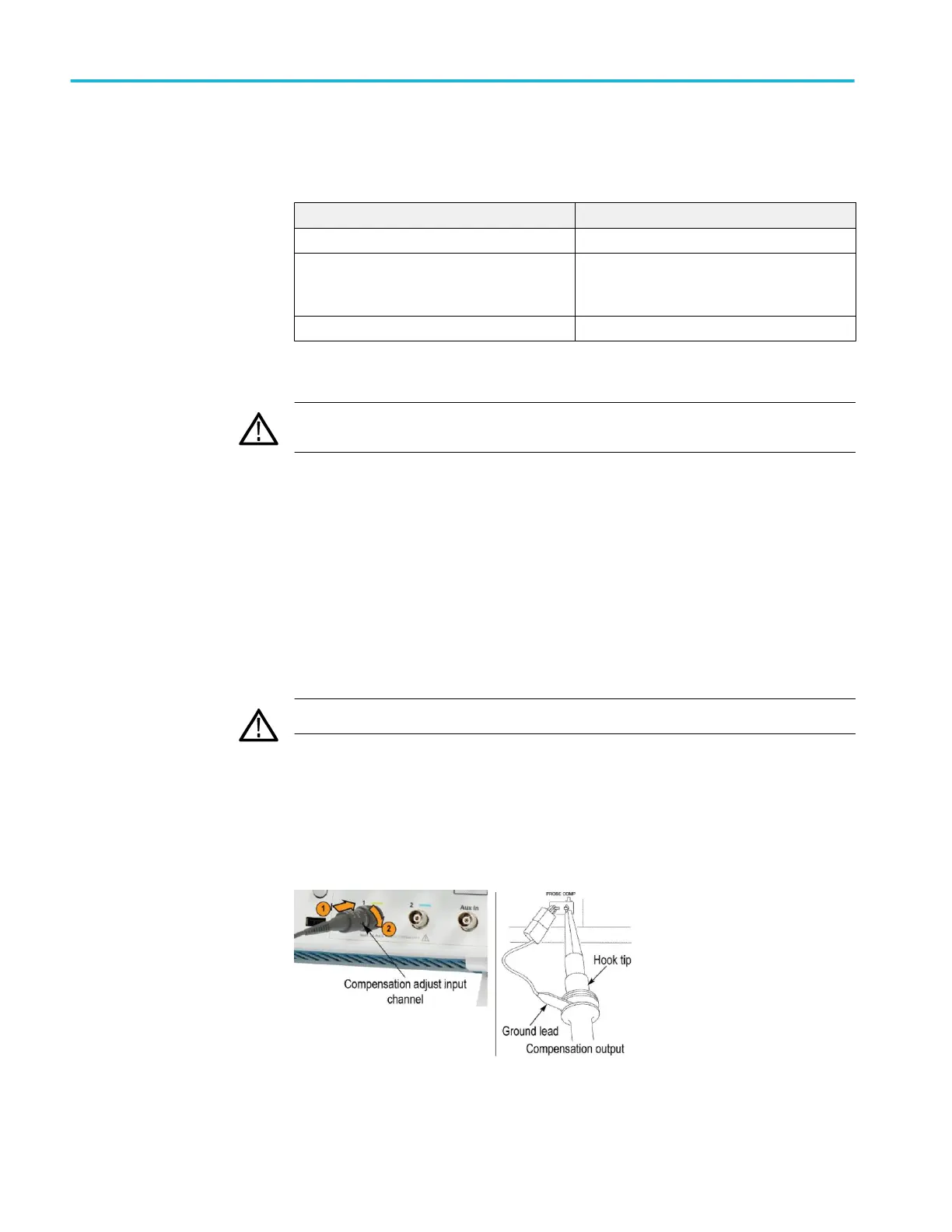

Power requirements
Characteristic Description
Power source voltage 100 to 240 V
AC
RMS ±10%, Single Phase
Power source frequency 50/60 Hz over entire source voltage range
400 Hz (360 Hz to 440 Hz) for 115 V
AC
(100 V
AC
- 132 V
AC
) RMS source voltage range
Power consumption All models: 80 W maximum
CAUTION. A ground connection through the power cord grounding conductor is
essential for safe operation.
TPP0100, TPP0200 series 10X passive probes information
The TPP0100, TPP0200 Series 10X Passive Probes are high impedance, passive
probes with 10X attenuation. They are designed for use with TBS1000C
oscilloscopes. These oscilloscopes have 14 pF of input capacitance.
The compensation range of these probes is 8 to 18 pF.
The probes have no user- or Tektronix-serviceable parts.
WARNING.
Do not float the TPP0100, TPP0200 probes on any oscilloscope.
Connecting the probe to
the oscilloscope
Connect the probe as shown in the illustrations below.
Operating requirements
8 TBS1000C Series Oscilloscopes User Manual
