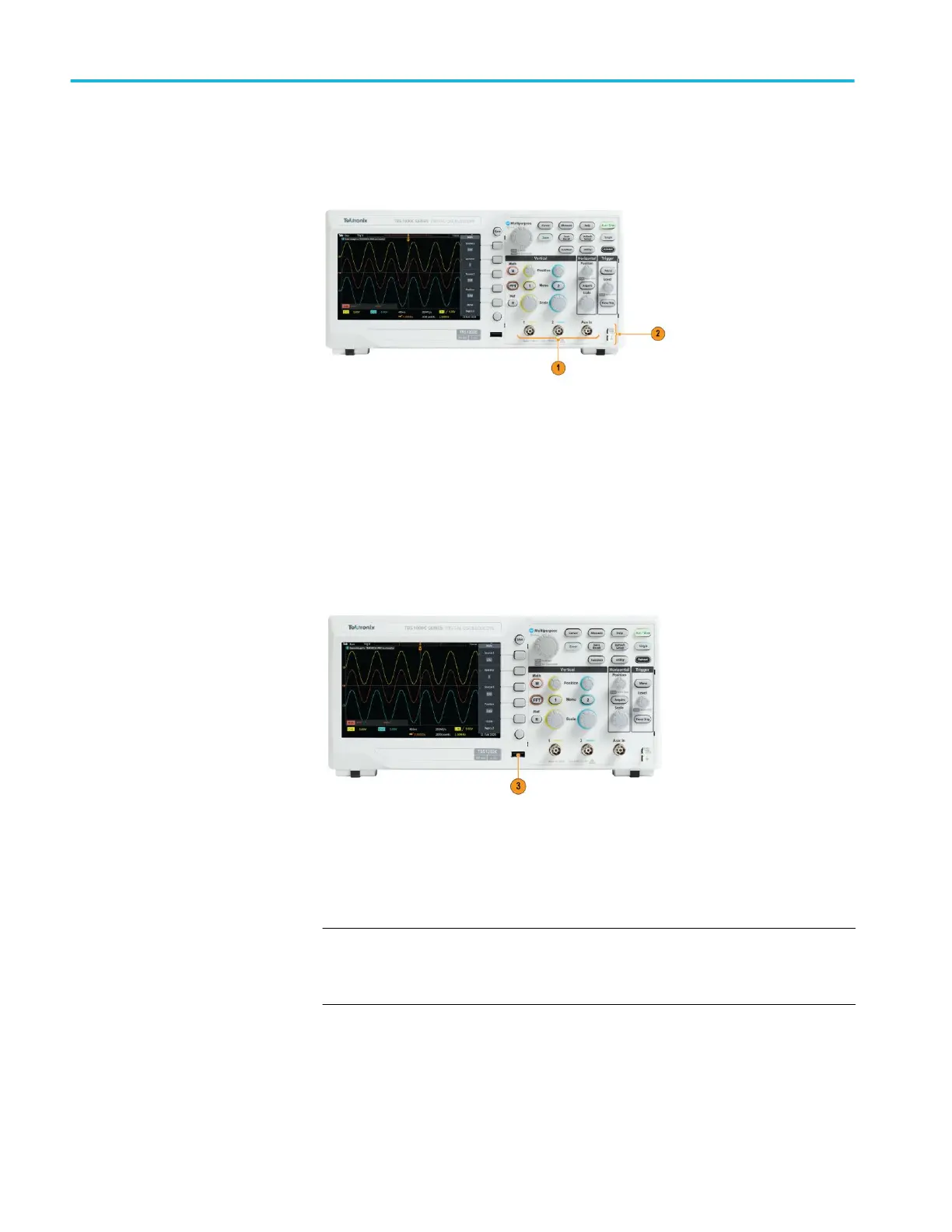

Front-panel connectors
1. Channel 1, 2, Aux In. Channel inputs with BNC Probe Interface.
2. PROBE COMP. A square wave signal source and ground connection used
to compensate probes.
Output voltage: ~ 5 V at ~1 kHz
Ground reference to which to connect the probe ground lead.
3. USB 2.0 Host port.
Rear-panel connectors
1. USB 2.0 Device port. Use the USB 2.0 Full Speed Device port to connect to
a PC for remote control.
NOTE. The cable connected from the USB 2.0 Device port to the host
computer must meet the USB2.0 specification for high speed operation when
connected to a high speed host controller.
Appendices
168 TBS1000C Series Oscilloscopes User Manual
