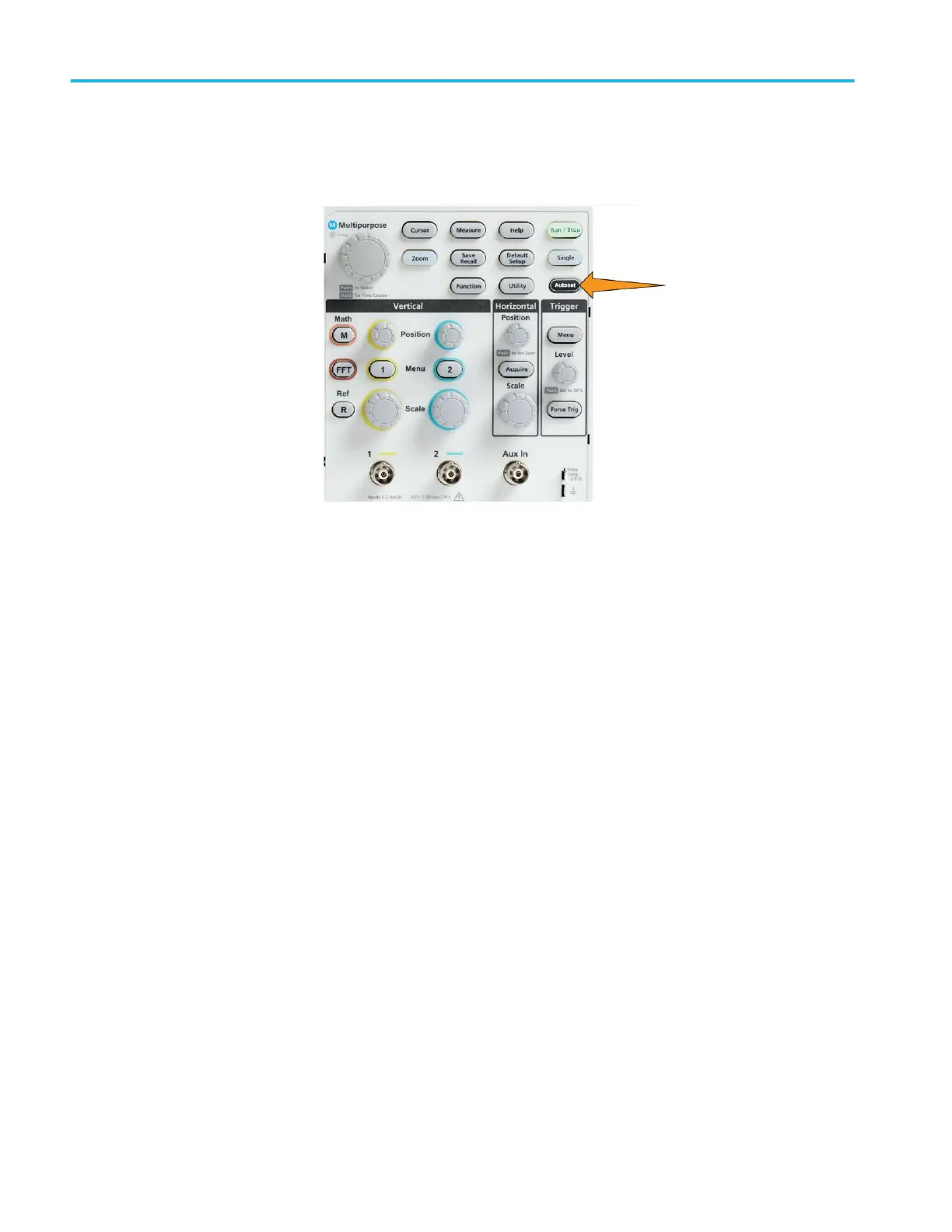

3. Push Autoset. The oscilloscope takes a few moments to analyze and display
the signal.
4. You can push the Undo Autoset side-menu button to undo the last Autoset.
Autoset tips
■
If more than one channel is active, Autoset triggers on the lowest-numbered
displayed channel, and displays all active channels from the top to the bottom
of the screen.
■
Autoset always sets vertical offset to 0 V.
■
Channel 1 is a special case: If all channels are off (not displayed), or channel
1 is on, Autoset attempts to detect, trigger, and display the waveform for
channel 1 even if no signal is present (resulting in a flat waveform for
channel 1). It will not trigger on, or display the other channels, even if there
are signals present on those channels.
Acquisition setup
66 TBS1000C Series Oscilloscopes User Manual
