Acquisition setup
Using Autoset
Autoset is a fast way to acquire and display a waveform. Autoset automatically
sets the trigger type to edge, sets the threshold level to 50% of the signal level,
and analyzes the input signal and adjusts the oscilloscope acquisition, horizontal,
and vertical settings to display five to six waveform cycles. Autoset is ideal for
quickly displaying a repeating signal waveform.
Complete the following steps to Autoset:
1. Connect a probe to the oscilloscope and signal source.

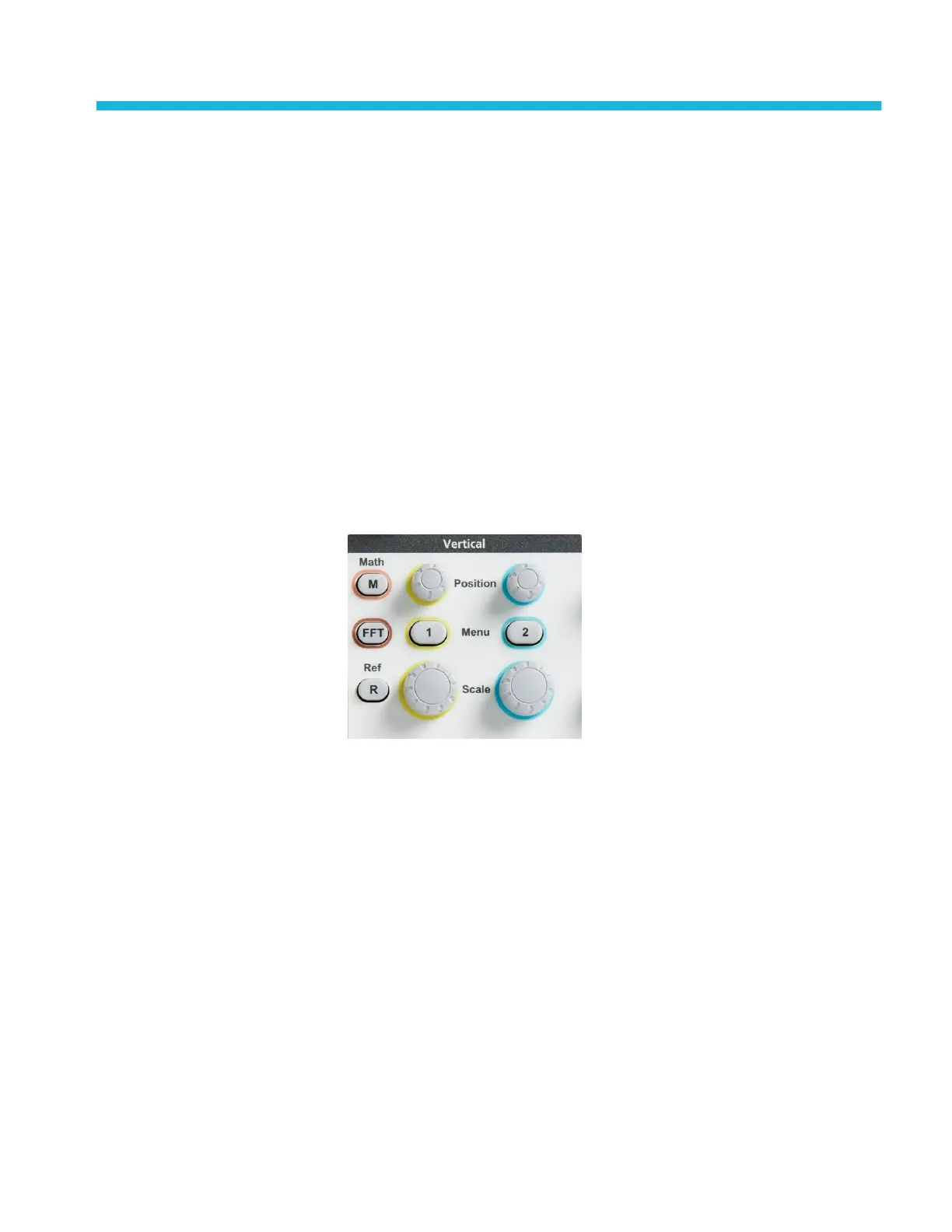

2. Push the Vertical Menu button for the channel input that you want to
Autoset, to enable that channel.
TBS1000C Series Oscilloscopes User Manual 65
To Next Page
