The oscilloscope controls
The front panel has menu buttons and control knobs for the functions that you use
most often. The following sections provide a high-level description of the
controls and what they do. Use the text links within these sections to go to
sections that contain more information about that control.
The Navigation controls
The buttons or knobs control waveforms, cursors, and other data input.
■

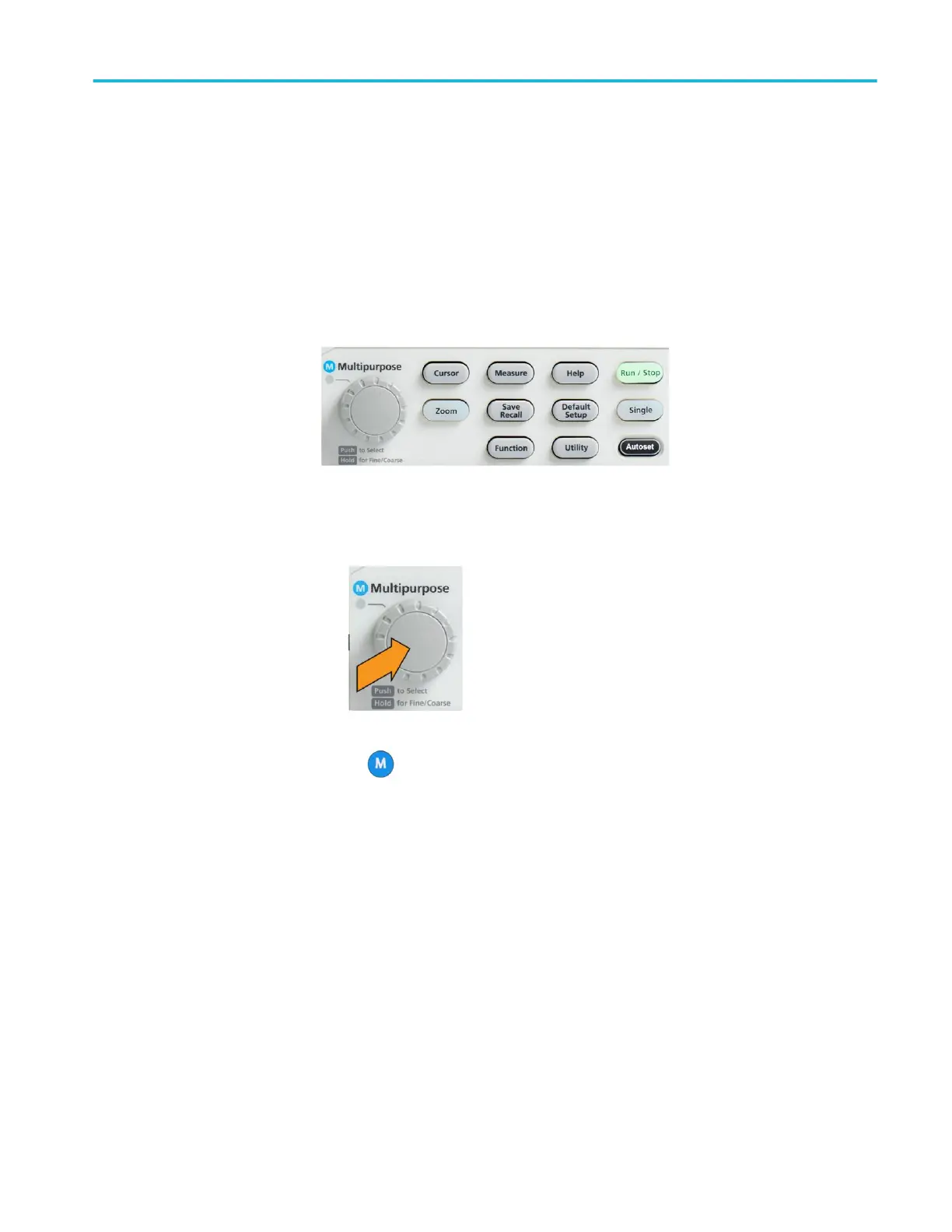

The Multipurpose knob lets you select and click menu or other choices, to
move a cursor, and to set a numerical parameter values for a menu item.
A
icon on a menu, message, or dialog box means to use the
Multipurpose knob to interact with that item.
Turn the knob to highlight a menu item or control a screen object (such as a
cursor, or when entering file name characters).
Push the knob to select or enter a highlighted menu item, switch between
cursors, or activate a menu field to enable entering values.
■
The Cursors button toggles on and off displaying cursors on the screen.
