Preface
Key features
This oscilloscope can help you verify, debug, and characterize electronic designs.
Key features include:
■
Bandwidth variants 50 MHz, 70 MHz, 100 MHz and 200 MHz.
■
2 channel models
■
Large 7 inch WVGA wide-screen color display
■
Sample Rates of 1 GS/s on all Channels
■
Up to 20K points record length on every channel
■
Up to 5,000 waveforms/second capture rate
■
Supports 32 automated measurements
■
Edge, Runt and Pulse Width triggers
■
FFT analysis for waveform spectrum analysis
■
USB 2.0 Host ports for quick and easy storage of screen images, instrument
settings, and waveforms to USB flash drives; installing firmware updates;
and loading waveforms and settings from saved files
■
USB 2.0 Device port for direct PC control of the oscilloscope using
TekVISA connectivity, and other remote connectivity tools that support
USBTMC
■
Scope Intro provides a built-in overview of oscilloscope concepts and an
introduction to the controls and features
■
Help Everywhere displays graphics and short text descriptions when you
access the menus for most oscilloscope settings
■
Courseware function provides on-oscilloscope teaching instruction, with
hundreds of courses available on the Tektronix Education Web page and the
ability to easily create courses specific to your education needs
Conventions used in this manual

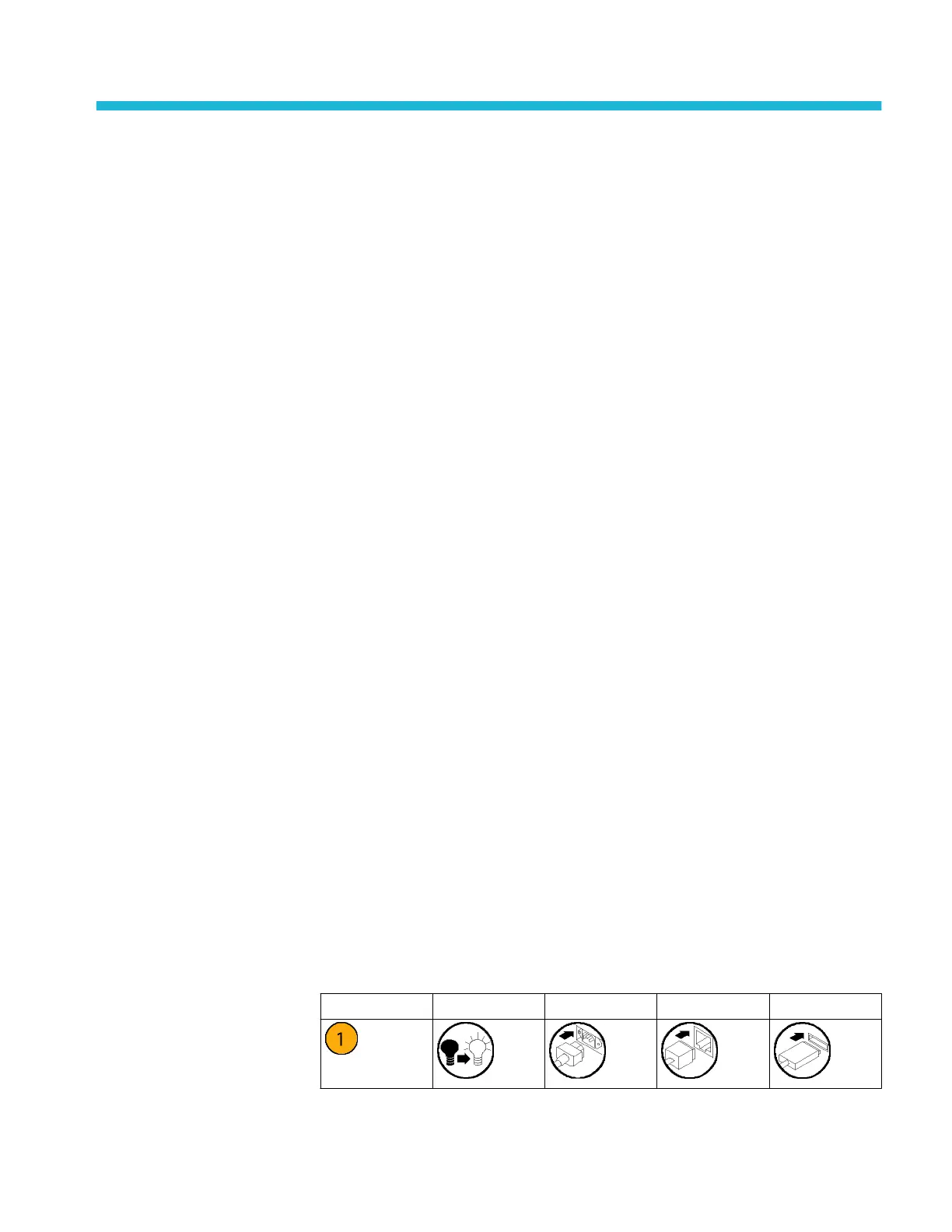

The following icons are used throughout this manual.
Sequence Step Front panel power Connect power Network USB
TBS1000C Series Oscilloscopes User Manual 1
