Tektronix TBS1000C Series User Manual

NOTE. You can choose the Fine knob sensitivity in the Function button
(Navigation controls) to enable smaller adjustments with the position knob.
The Acquire button opens the menu that you use to set the acquisition mode and
adjust the record length.

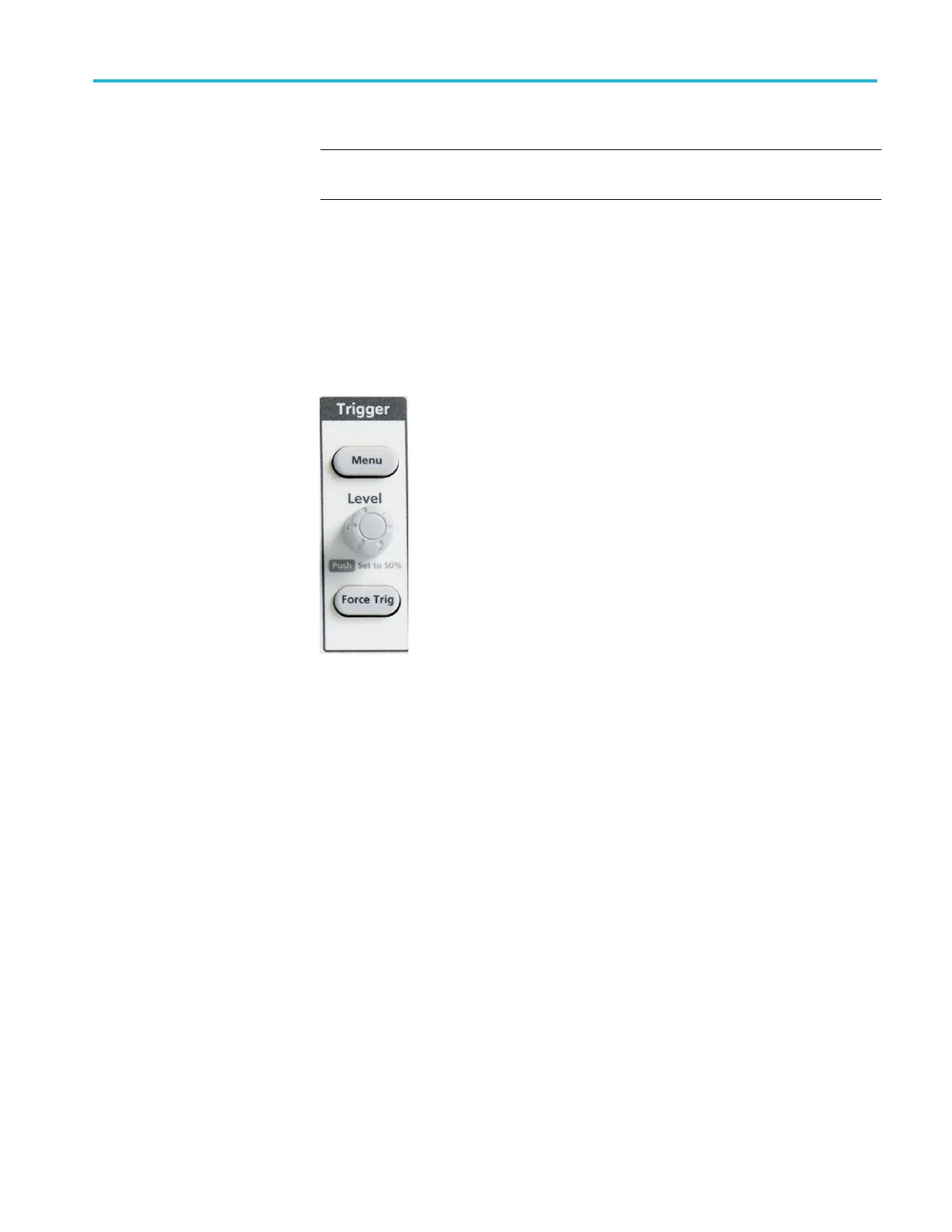

The Trigger controls
The Trigger controls set when the oscilloscope starts acquiring signal data to
create a waveform record. See Trigger concepts on page 38.See Trigger setup on
page 57.
The Trigger Menu button opens the side menu for trigger settings.
The Trigger Level knob adjusts the trigger level. Trigger level is shown with a
horizontal line when using this control.
Push the Trigger Level knob to set the trigger level to 50% (the vertical midpoint
of the waveform).
The Force Trig button forces an immediate trigger event.
