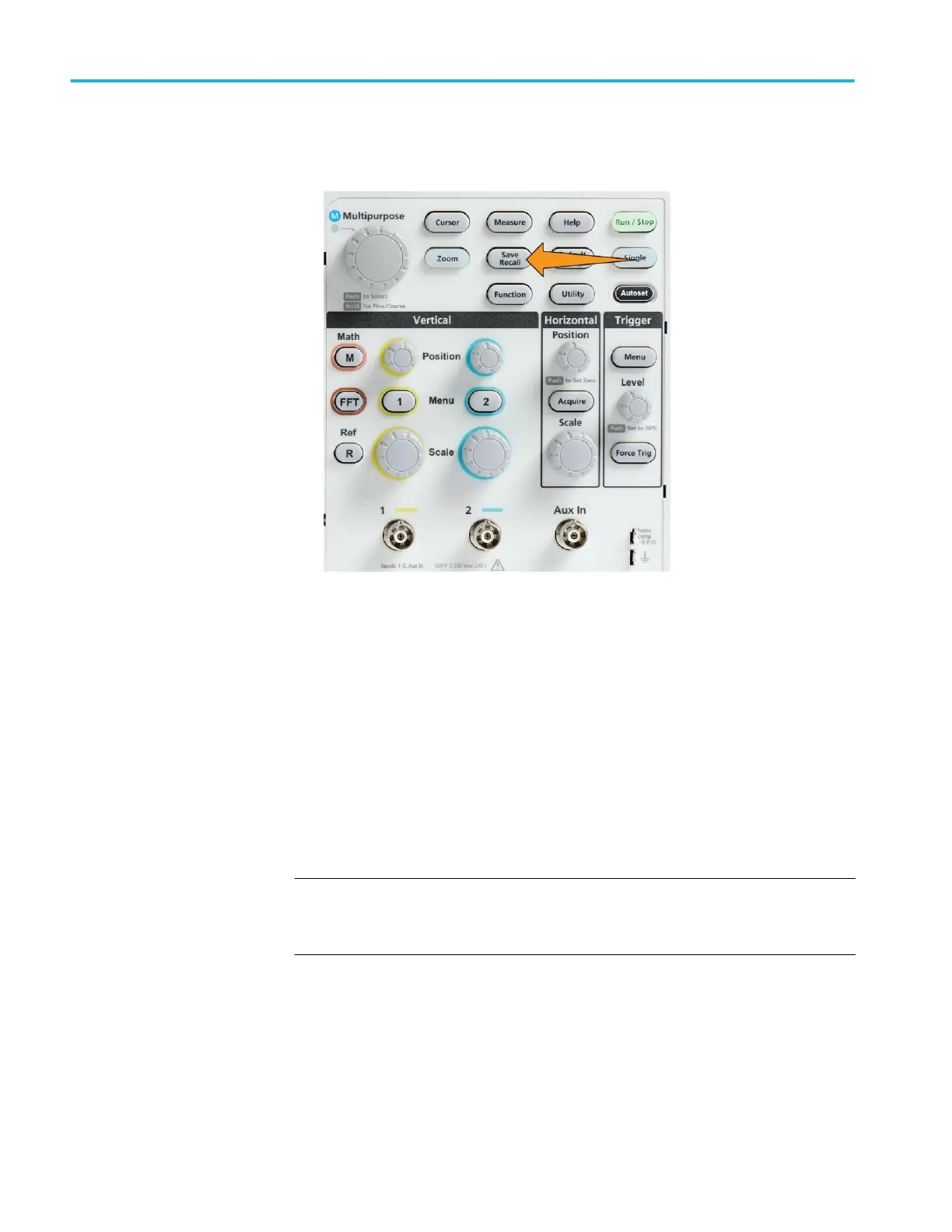

1. Push the Save Recall front-panel button.
2. Push the Settings side-menu button.
3. Push the Assign Save Button To side-menu button.
4. Push the side-menu buttons for the action that you want to assign to the Save
button (Screen Image, Waveform, or Setup). The save button is now
assigned to that action.
5. For image or setup files: Use the Save As side-menu buttons to select the
output format for the action you assigned to the Save button (BMP, JPG, or
PNG for screen images; .SET for Setup).
6. For waveform files: Use the Save As side-menu buttons to select the signal
source for saving waveforms (CH1, CH2, Math, FFT, Ref1-2).
NOTE. The Assign To button does not store the current save settings (such as file
format or waveform source). The Save button uses the settings of the Save As
side menu to save files.
