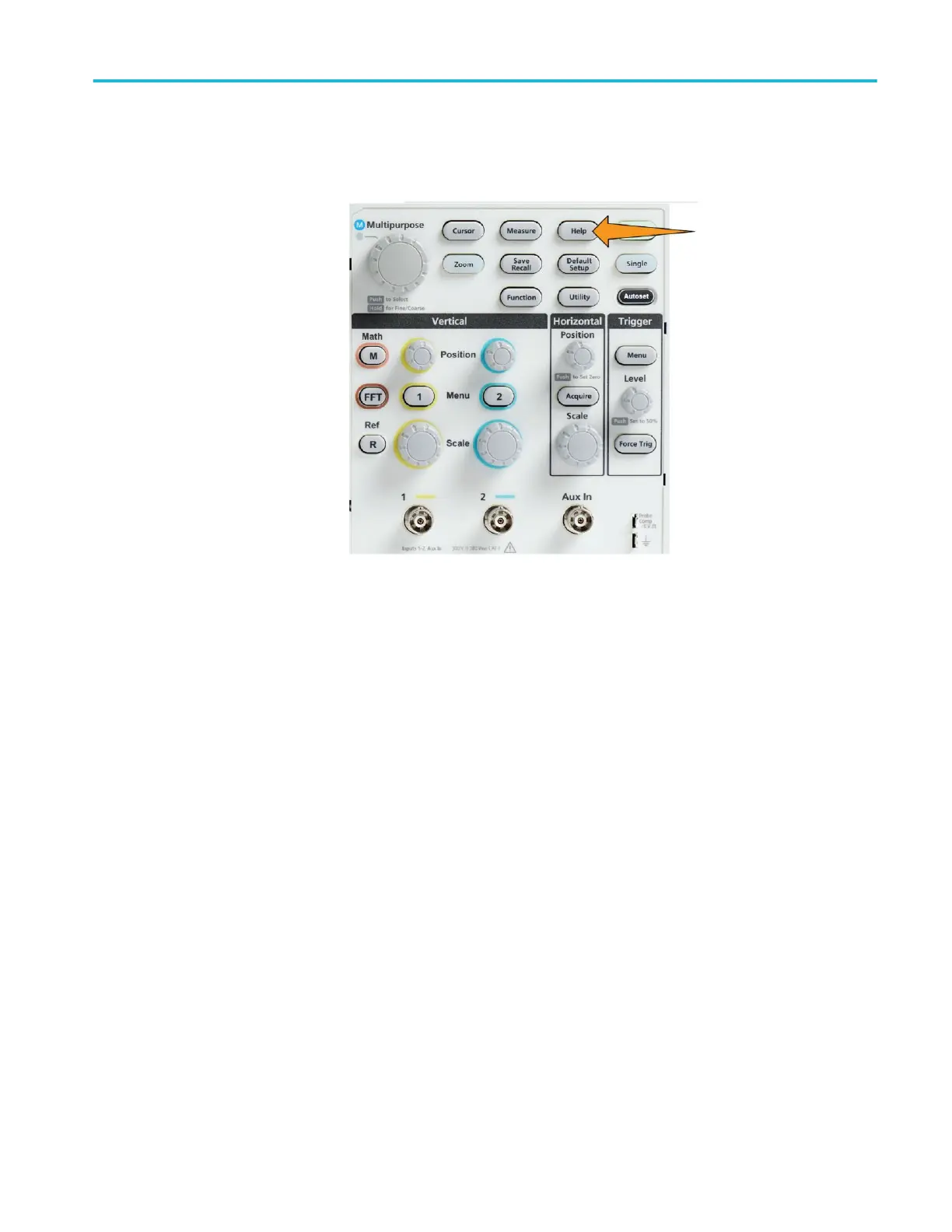

1. Push the Help front-panel button.
2. Push a side-menu button to select a course from those listed. The main screen
area lists the labs that are available for that course.
3. Turn the Multipurpose knob to select and click the lab to run (if there is
more than one lab).
4. Push the Overview side-menu button to read a high-level description of what
this lab will teach you.
5. Push the Procedure side-menu button. Follow the instructions in the
procedure:
■
If a step says to compare your results, push the Data Collection side-
menu button, push the Step side-menu button, use the Multipurpose
knob to select the step number, and push the Show Reference side-menu
button to On. The oscilloscope shows the reference material associated
with that step.
■
If a step says to show a waveform mask, push the Data Collection side-
menu button, push the Step side-menu button, use the Multipurpose
knob to select the step number, and push the WFM Mask side-menu
button to On. The oscilloscope shows a reference waveform mask and a
readout that counts the number of waveform mask errors (pass= the
waveform is within the waveform mask area; Fail = part or all of the
waveform is out of the mask area).
Appendices
TBS1000C Series Oscilloscopes User Manual 157
