Application Examples Specifying the Equipment-Reset from Suspend Measurement
Tektronix Specific

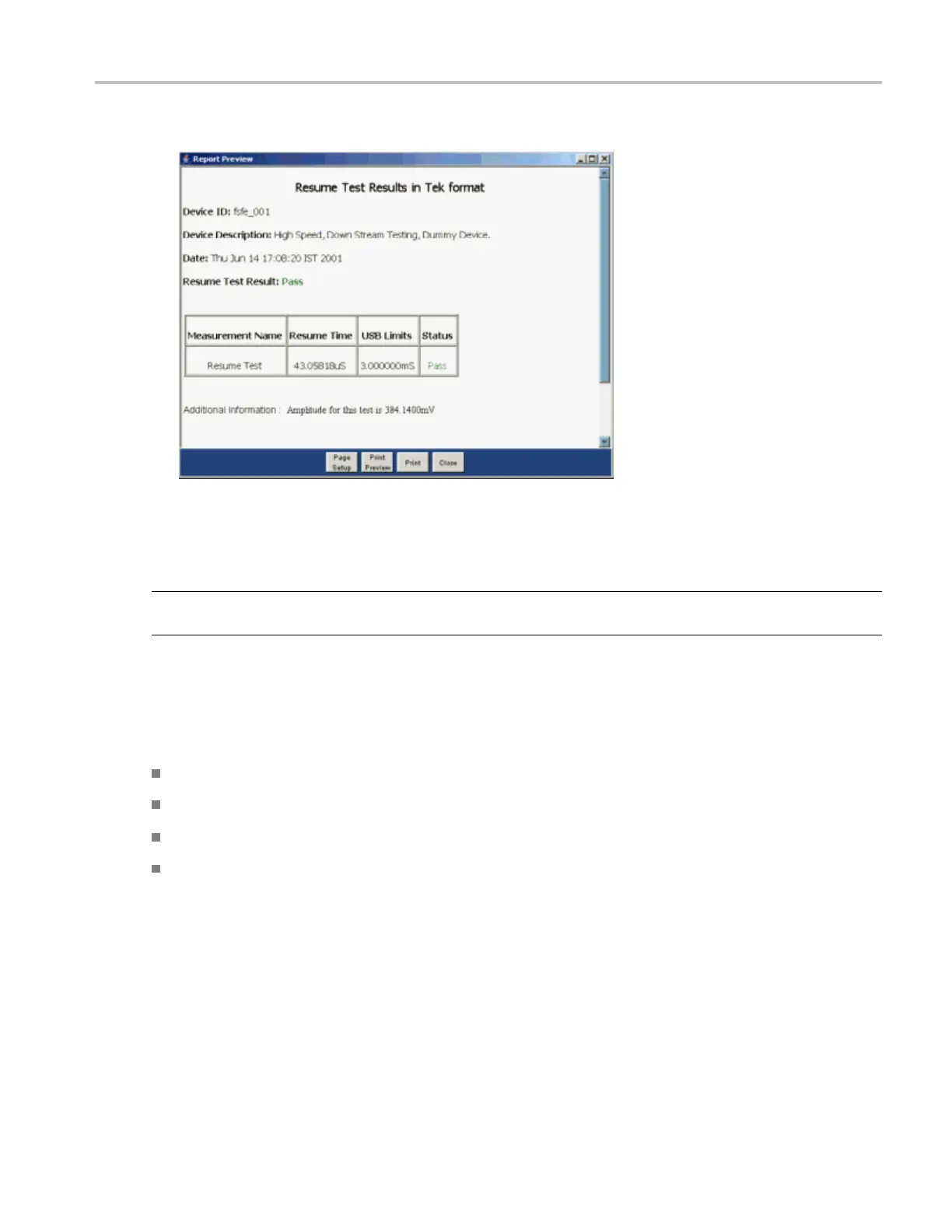

3. Select the manual generation m ode.
4. Select the Generate button to display and view the selected report format.
NOTE. You can view the Plug-Fest specific report format as HTML pages and the .csv format in Microsoft
Excel.
Specifying the Equipment-Reset from Suspend Measurement
The following equipment is needed for Reset from Suspend measurement:
Tektronix digital oscilloscope
TDSUSB2 application
TDSUSBF compliance test fixture (Revision B)
Two of the following single-ended voltage probes: P6245, P6243, TDP1500, TDP3500, or TAP1500.
Typical Equipment Setup-Reset from Suspend Measurement
To set up the Device SQ in the test fixture for the Reset from Suspend test, follow these ste ps :
1. Set the S6 switch to the Init position.
2. Use a standard length of the USB cable with an AplugononeendandaBplugontheotherend.
TDSUSB2 Universal Serial Bus Measurements Package 101
