Operating Basics Reset from Suspend Measurement

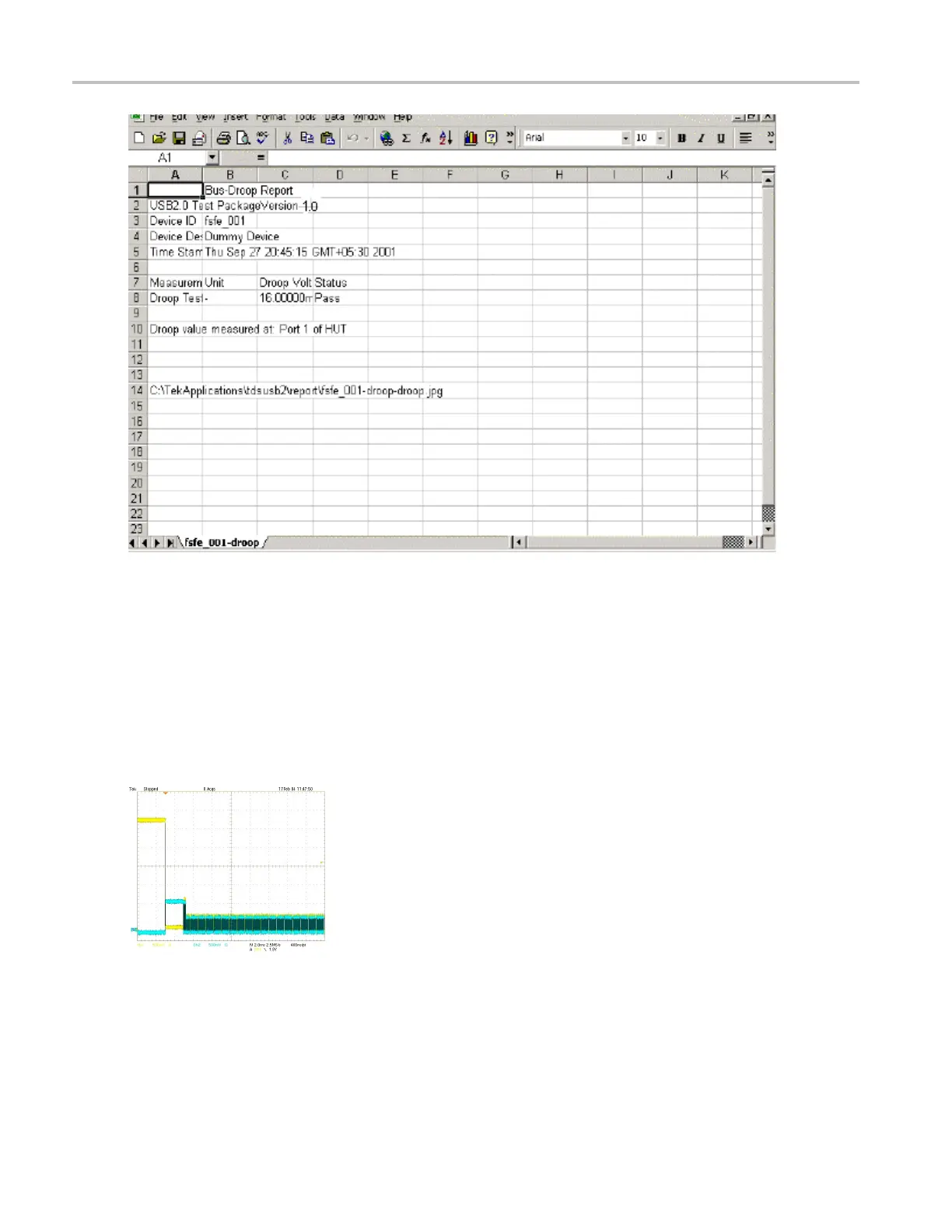

Reset from Suspend Measurement
This test calculates the time between the falling edge of D+ signal and the start of Device chirp-K for
the Device/HUB upstream. This must be between 2.5 us and 3 ms. To get the Reset from Suspend
Measurement signal, hot-plug the unit under test (device), and measure the signaling with single-ended
probes on both lines. The application a nalyzesdatafortheResetFromSuspendTime.
48 TDSUSB2 Universal Serial Bus Measurements Package
