Application Examples Selecting and Configuring Measurement-Reset from Suspend Measurement

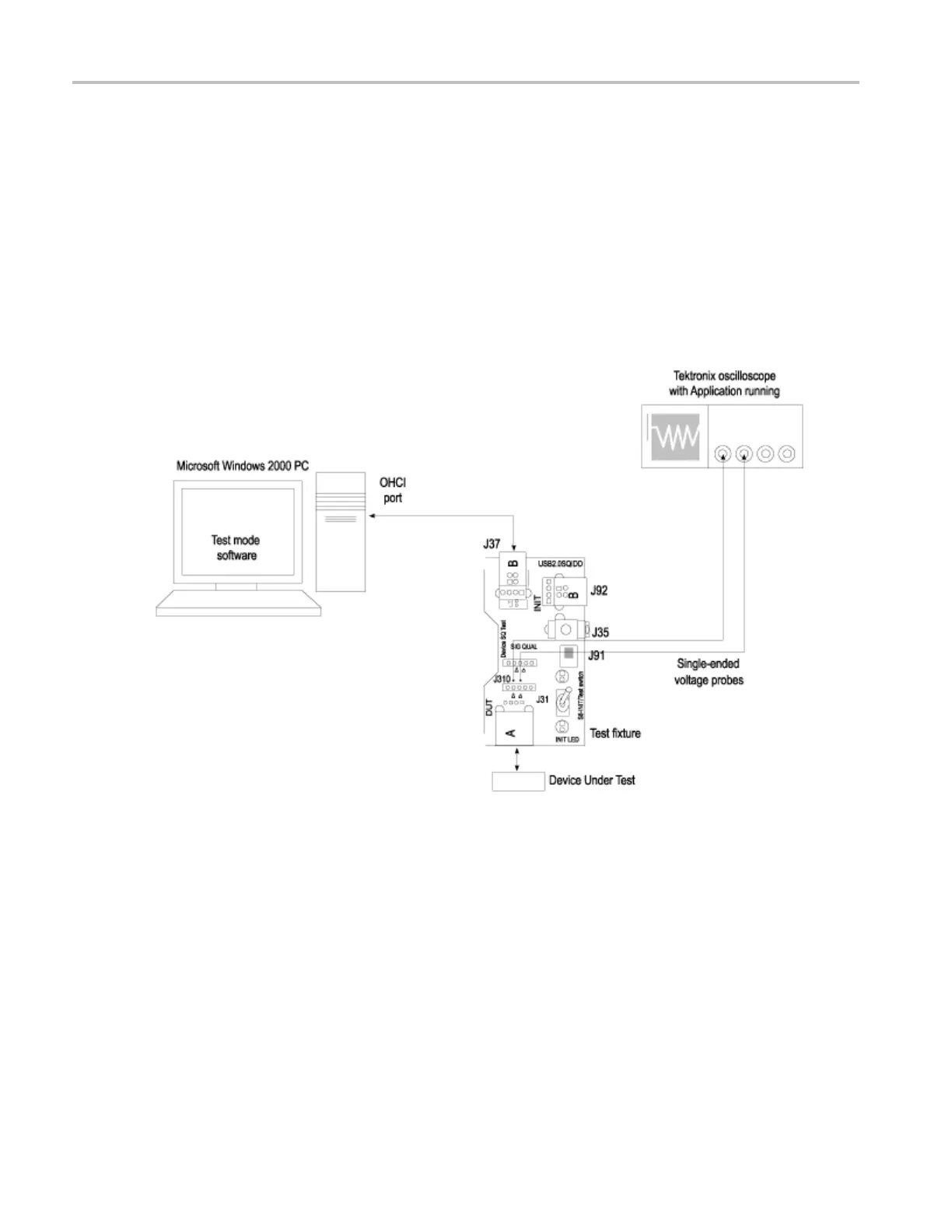

3. Connect one end of the cable to the B receptacle socket connector on the Init port of the Device SQ
section and the other end to the host port A socket.
4. Connect the A receptacle from the Device SQ test port to the unit under test (device).
5. Connect the single-ended probes of the oscilloscope to the D+ and D– pins.
6. Select the Reset from Suspend measurement from the application, configure its options, and select
the Run button to run the application.
7. Select OK after acquiring a waveform. Verify that it is a correct waveform.
Selecting and Configuring Measurement-Reset from Suspend
Measurement
Follow these steps to select meas urements for Reset from Suspend measurement:
1. From the application menu, select Measurement > Select > High speed tab.
102 TDSUSB2 Universal Serial Bus Measurements Package
