Operating Basics Configuring Packet Parameter Measurement

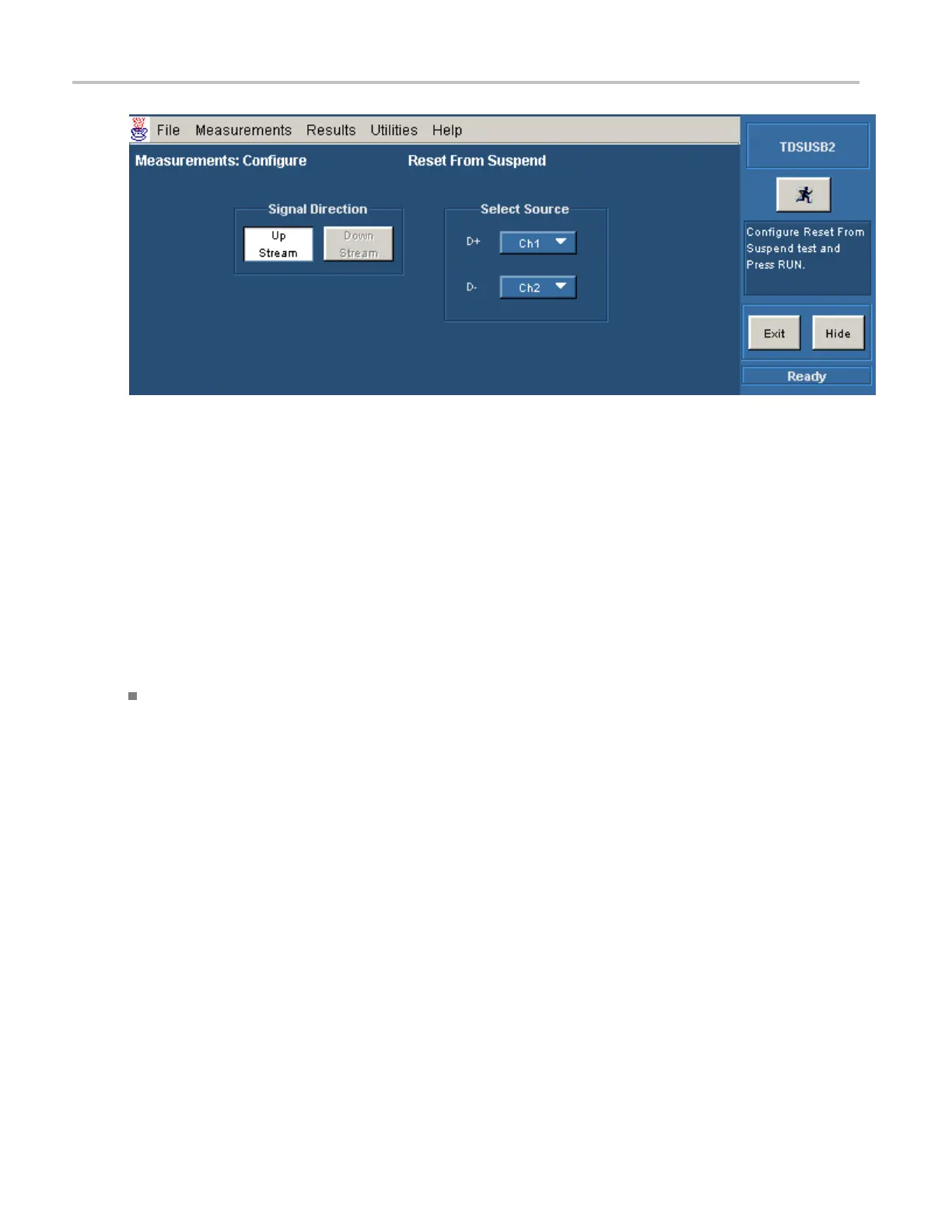

3. In the Configure tab, you can set the channel Source.
4. The signa
l direction is always set to Upstream. This is because you can measure Reset from Suspend
only on an upstream signal. The Downstream option is disabled.
5. Select t
he channel source in the D+ and D– fields. Use the drop down arrow in the D+, D– fieldtoset
the source. The available options are: Ch1- Ch4 and Ref1-Ref4.
6. Select
the Run button.
7. To generate reports, select Utilities > Report Generator.
See Also
Gene
rating Reports
Configuring Packet Parameter Measurement
To configure Packet Parameter measurement, follow these steps:
1. Select the High Speed measurement tab > More button > Packet Parameter measurement.
2. To access the Configure Measurements menu, go to Measurements > Configure.
3. In the Configure tab, you can select the DUT (Host or Device) and perform selected tests associated
with it.
44 TDSUSB2 Universal Serial Bus Measurements Package
