Operating Basics Configuring Packet Parameter Measurement

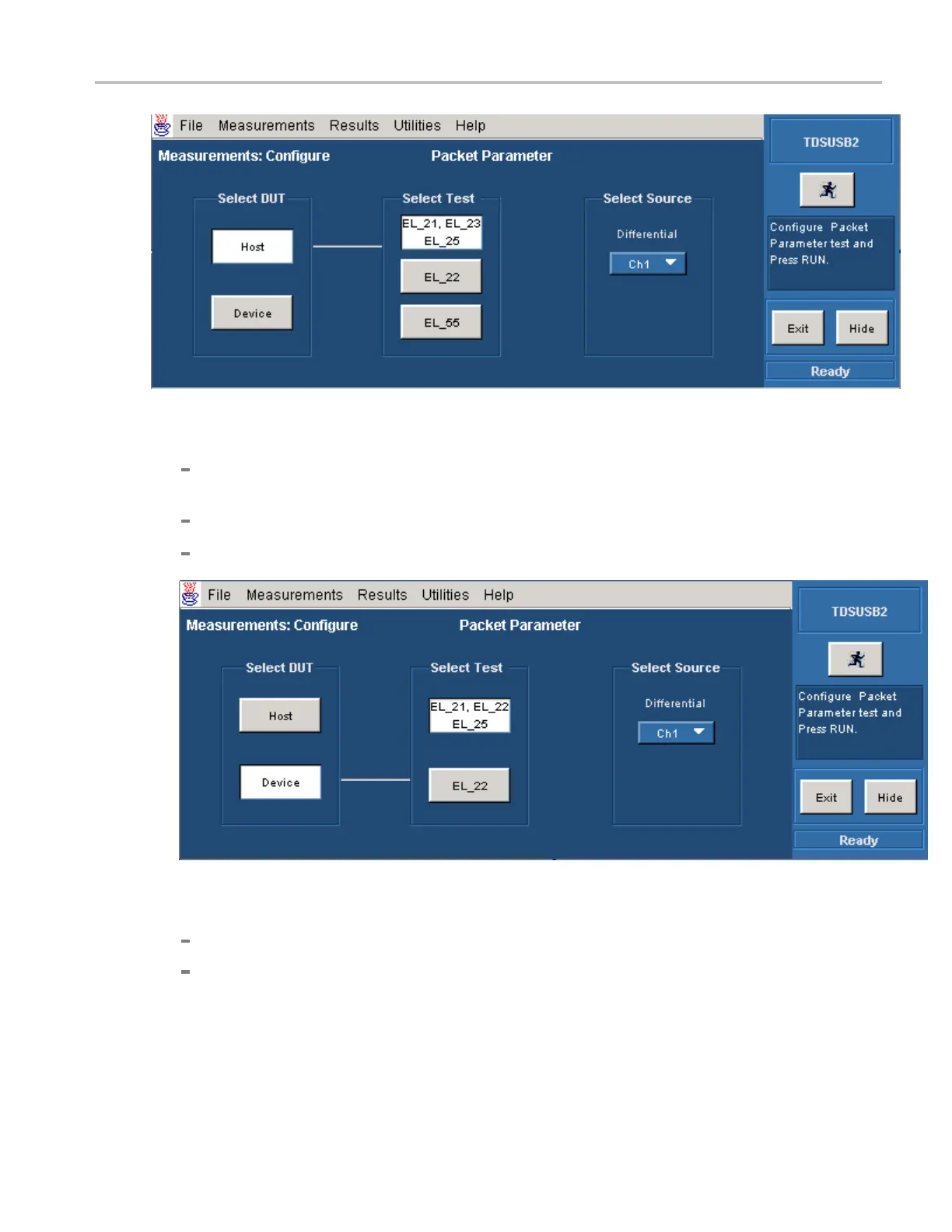

4. Select the Host option to display the different tests for the DUT. The available tests are:
EL_21, EL_23, EL_25: You can perform three separate measurements on a single acquire d
waveform.
EL_22: You can perform a single measurement on an acquired waveform.
EL_55: You can perform a single measurement on an acquired waveform.
5. Sel
ect the Device option to display the different tests for the DUT. The available tes ts are:
EL_21, EL_22, EL_25: You can perform three separate measurements on an acquired waveform.
EL_22: You can perform a single measurement on an acquired waveform.
6. Use the drop down arrow in the Differential fi eld to set the channel source. The available options
are: Ch1-C h4, Ref1-Ref4.
TDSUSB2 Universal Serial Bus Measurements Package 45
