Operating Basics Acquiring Data

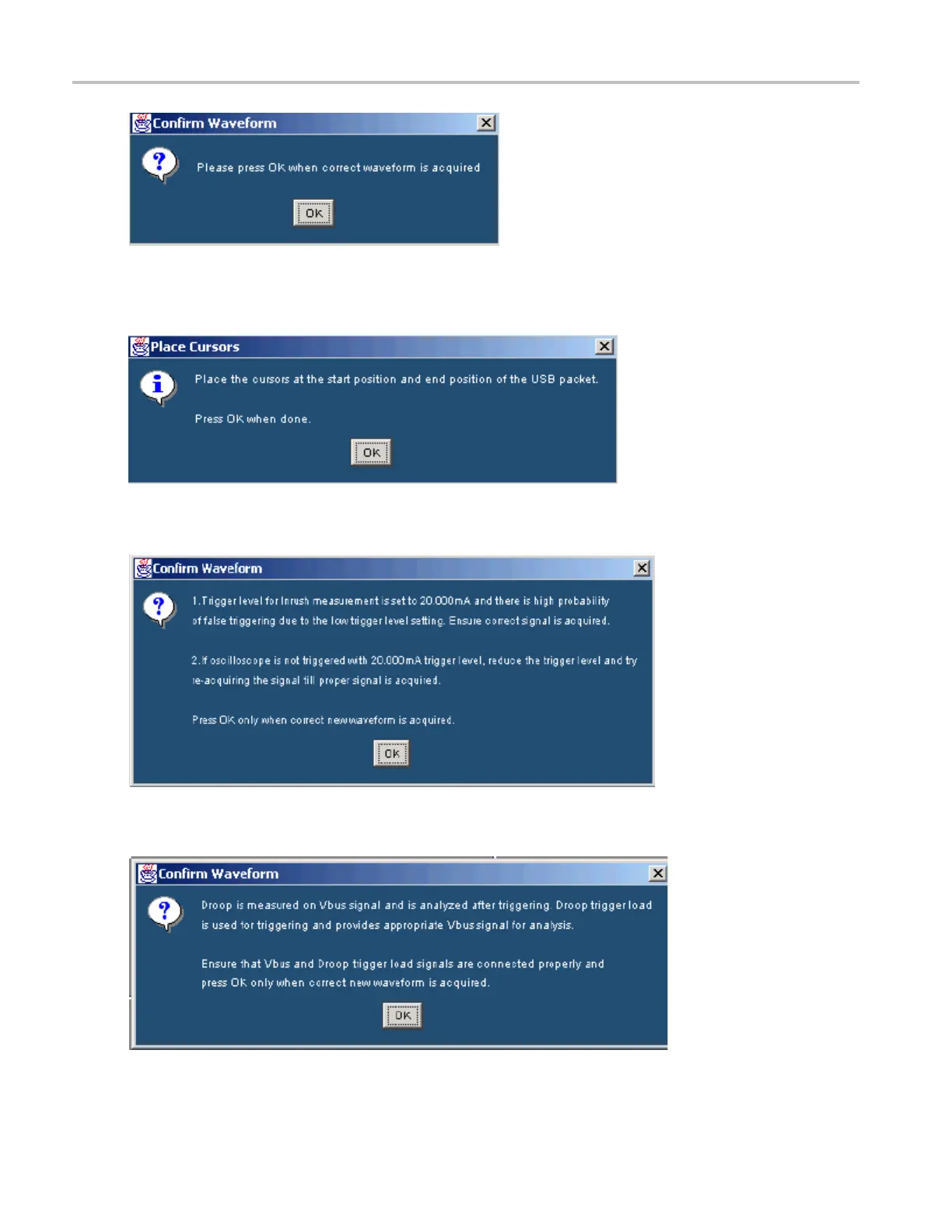

3. If you select the Cursor Mode, the application displays the message ‘Place the Cursors at the start and
end position of the USB packet. Press OK when done.’
4. If you select the Inrush measurement, the application displays the message in the next figure.
5. If you select the Droop measurement, the application displays the message in the next figure.
50 TDSUSB2 Universal Serial Bus Measurements Package
