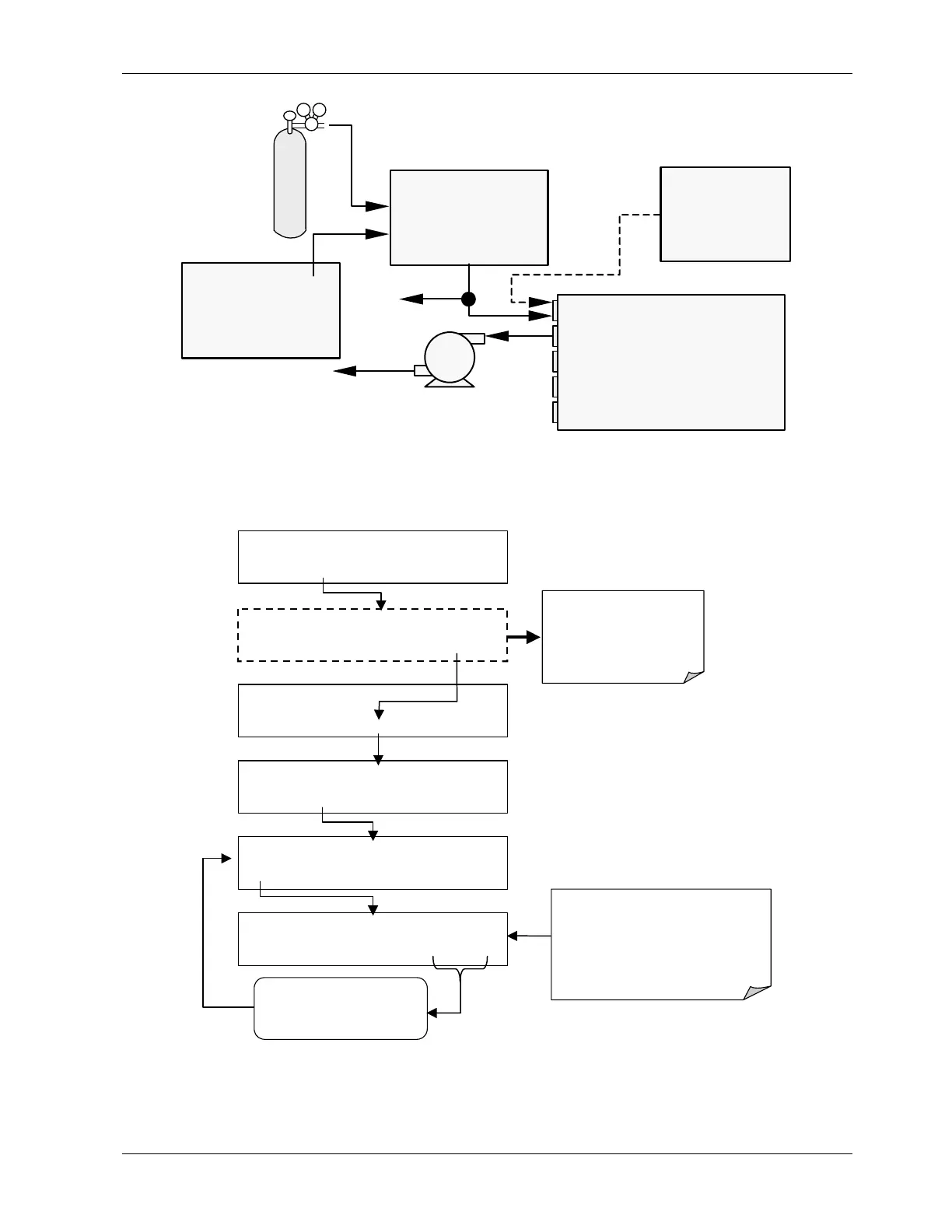

Teledyne 200E - Figure 7-1: Gas Supply Setup for Determination of no

Model 200E Instruction Manual Calibration Procedures
Pump
MODEL
200E
Sample
Zero Air
Exhaust
Span
Gas Dilution
Calibrator
(with O
3
generator
option)
Zero Air Source
VEN
T
Calibrated
NO
2
gas
(high
concentration)
Source of
SAMPLE Gas
removed
during
procedure
Figure 7-1: Gas Supply Setup for Determination of NO
2
Conversion Efficiency
Step two is to set the expected NO
2
span gas concentration:
M-P CAL CONCENTRATION MENU
NOX NO CONV EXIT
SAMPLE A
RANGE TO CAL: LOW
NOX=X.X
LOW HIGH ENTR
SAMPLE RANGE = 500.0 PPB NOX=X.X
< TST TST > ZERO CONC EXIT
M-P CAL CO SPAN CONC: 400.0 Conc
0 0 4 0 0 .0 ENTR EXIT
The expected NO
2
span concentration value
defaults to 400.0 Conc.
Make sure that you specify the actual
concentration value of the span gas. To
change this value to the concentration of the
span gas, enter the number by pressing the
key under each digit until the value is visble.
M-P CAL CONVERTER EFFICIENC
Y
MENU
NO
2
CAL SET EXIT
ENTR
accepts the expected NO
2
span
concentration value.
EXIT
ignores the expected NO
2
span
concentration value.
SAMPLE RANGE = 500.0 PPB NOX=X.X
< TST TST > CAL SETUP
This step only appears if the
analyzer’s reporting range is set
for AUTO range mode.
Select LOW and press ENTR.
Repeat entire procedure for
HIGH range.
