ROUTINE MAINTENANCE
Air Dryer: Post Filter Replacement
TP04300 Series Interface & Applications Manual 5-9
Air Dryer: Post Filter Replacement

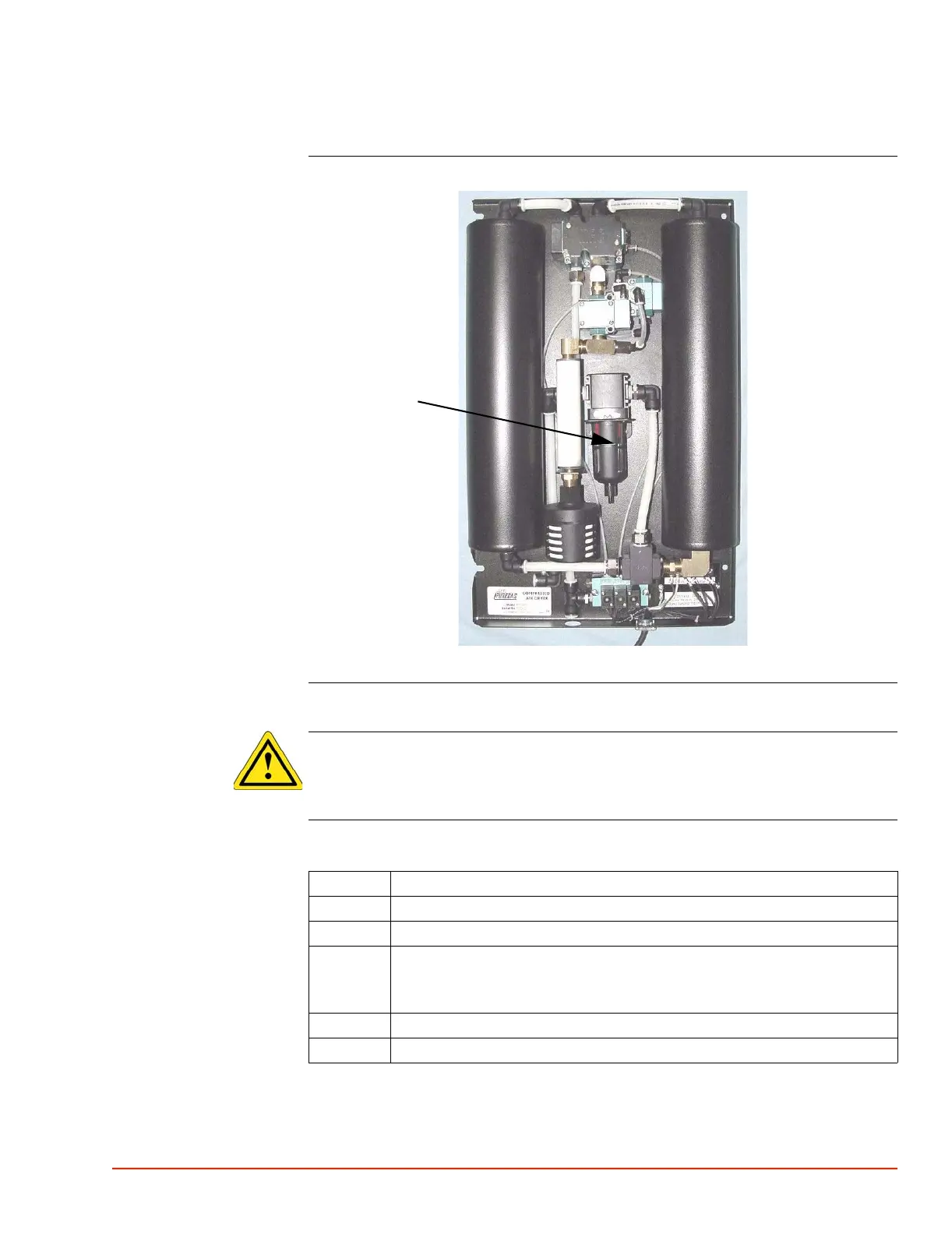

Post Filter
Detailed
Procedure To replace the Filter, use P/N ZZ10110.
WARNING
WARNINGS 1, 2, 3, 8, 9 in Chapter 1, Safety.
Post Filter
Step Action
1 Power down the TP04300A and disconnect power cord.
2 Disconnect the facility air supply from the TP04300A.
3 On the filter housing, push up, turn 1/4 turn counterclockwise, and then pull
down.
This will remove the housing and expose the filter element (red).
4 Unscrew the filter element.
5 Replace in the reverse order.
