SYSTEM OPERATION
Setup Screen (Full Access)
TP04300 Series Interface & Applications Manual 3-35
Setup Screen (Full Access)

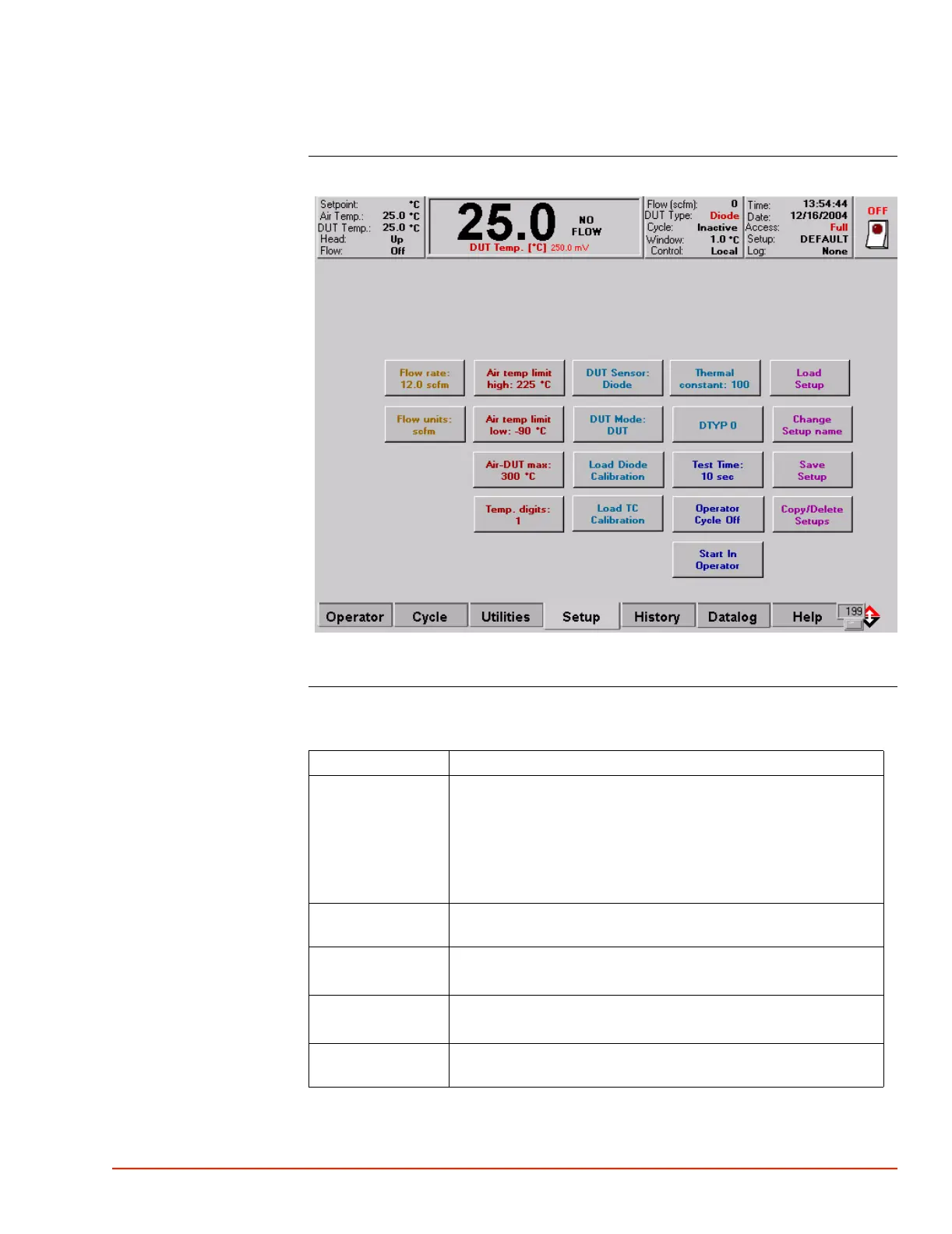

Setup Screen
Detailed
Field/Button
Descriptions
Field/Button Description
Flow Rate:
12.0 scfm
Flow Rate is the rate at which the air comes out of the main air
nozzle
Default setting is 12 scfm. Maximum setting is 18 scfm.
Press to display the Touch Screen Numeric “Keypad” and set the air
flow rate. The rate can be displayed in either standard cubic feet/
minute, or, liters/second.
Flow units:
scfm
Press to toggle the air flow as either standard cubic feet/minute, or,
liters/second.
Air temp limit
high: 225°C
Set the maximum hot air temperature for the system.
Default (and maximum) hot air temperature is 225°C.
Air temp limit
low: -90°C
Set the maximum cold air temperature for the system.
Default (and maximum) cold air temperature is -90°C.
Temp. digits:
1
Press to toggle temperature displays as either “0” (no decimal point
values shown) or “1” (1 decimal point value shown).
