PREPARATION FOR USE
TP04300 Series Interface & Applications Manual 2-17
Section F:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Panel, Air and Power Connections

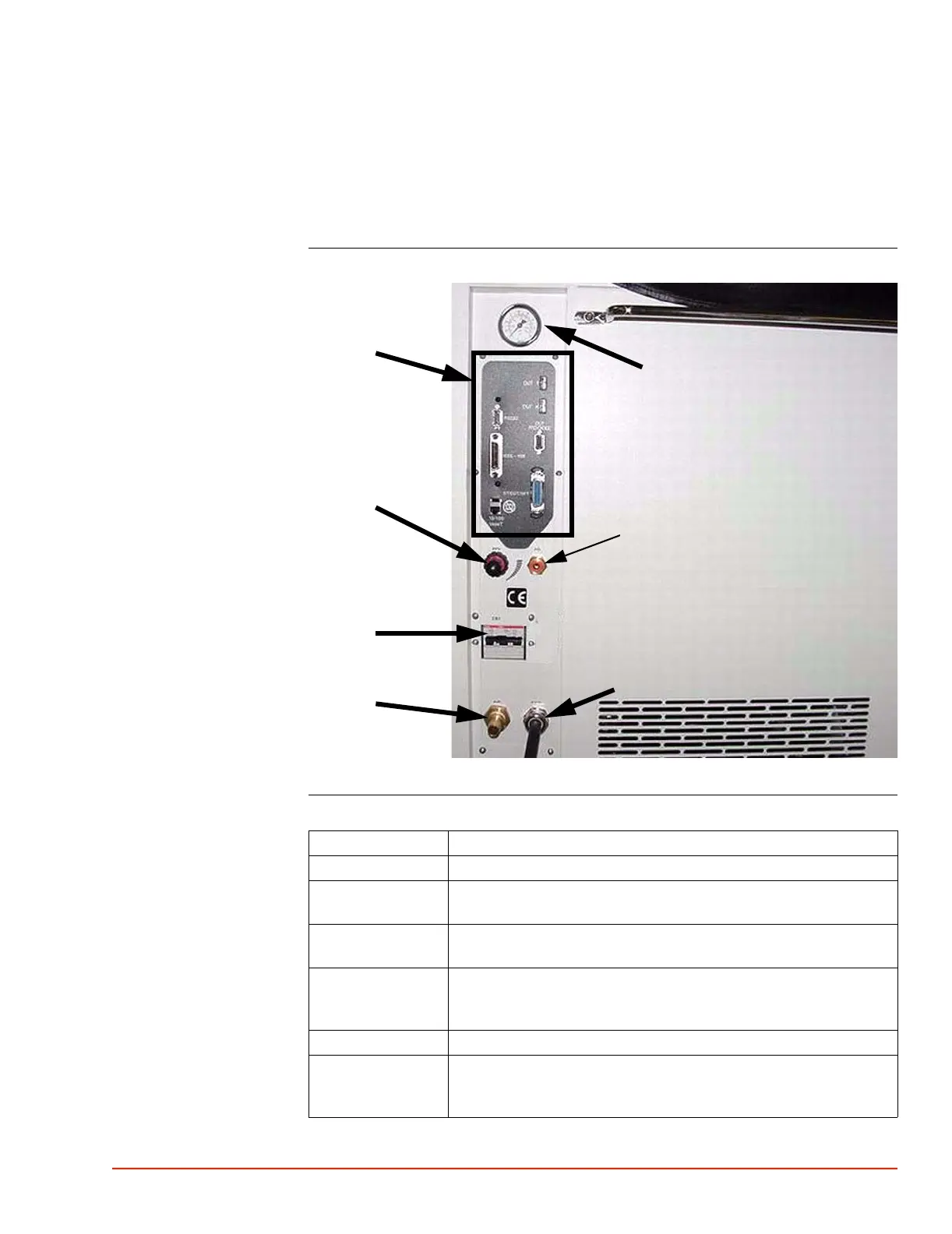

Rear Panel
Descriptions
Purge Air (Out)
Input/Output
(I/O) Panel
Input Air
Pressure Gauge
CB1
Main Air
(Air In)
Purge Flow Valve
(PFV)
Main Power Cord (Power In)
PART DESCRIPTION
Input/Output Panel Interface for an RTD/Diode sensor.
Input Air Pressure
Gauge
Monitors the pressure of the compressed air being supplied to the
system. This gauge is downline from particulate & coalescing filters
Purge Flow Valve
(PFV)
Used to adjust the flow of the Purge Air Out.
Purge Air Out (PO) Supplies clean, dry air to the Tester Platform. The purged air is used to
protect platform components from moisture related problems. For
greater detail, see Connecting Purged Air, page 2-29.
CB1 CB1, a 30 amp circuit breaker, the main power breaker
Main Air In The facility’s compressed air supply is connected here. For greater
detail, see Connecting the Main Air Supply (Compressed Air), page 2-
28.
