Diode Sensor Calibration (DUT Mode)
TP04300 Series Interface & Applications Manual 5-39
Diode Sensor Calibration (DUT Mode)
Diode Calibration
Introduction
There are 2 methods for calibrating a Diode.
• Manual
• External Sensor
Manual is the recommended method. This method requires the Diode Manufacturer’s
Specifications to be manually entered into the Calibration fields.
External Sensor is for unique applications and should only be used if the Diode
Manufacturer’s Specifications are not available. It is recommended that you contact a
Temptronic representative before calibrating with this method.
This method uses an external temperature sensor as a primary reference.

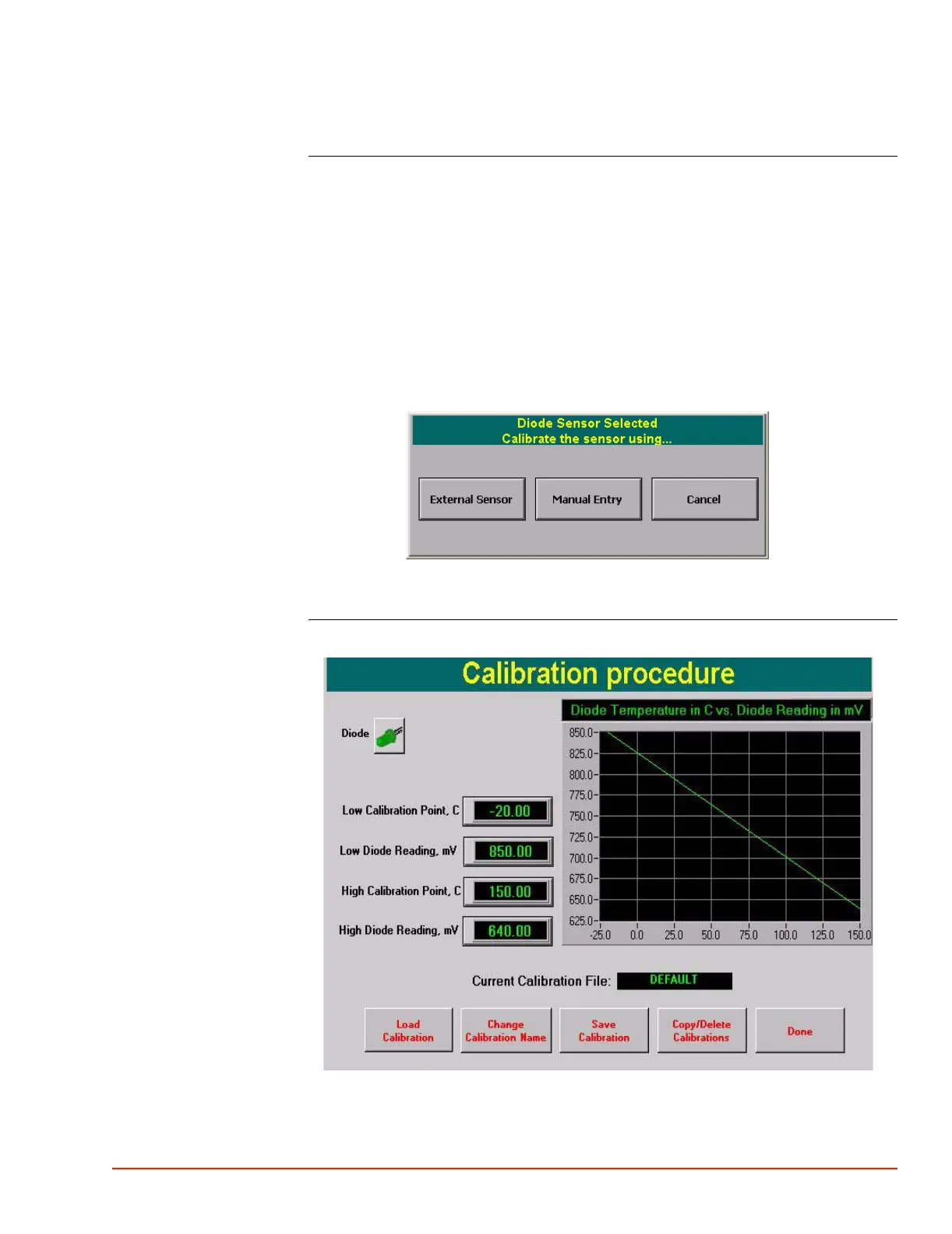

Once the Diode has been chosen from the Calibration Select Sensor Screen, the following
dialog box will appear:
Manual Method
(Diode)
To Next Page
