5
ROUTINE MAINTENANCE

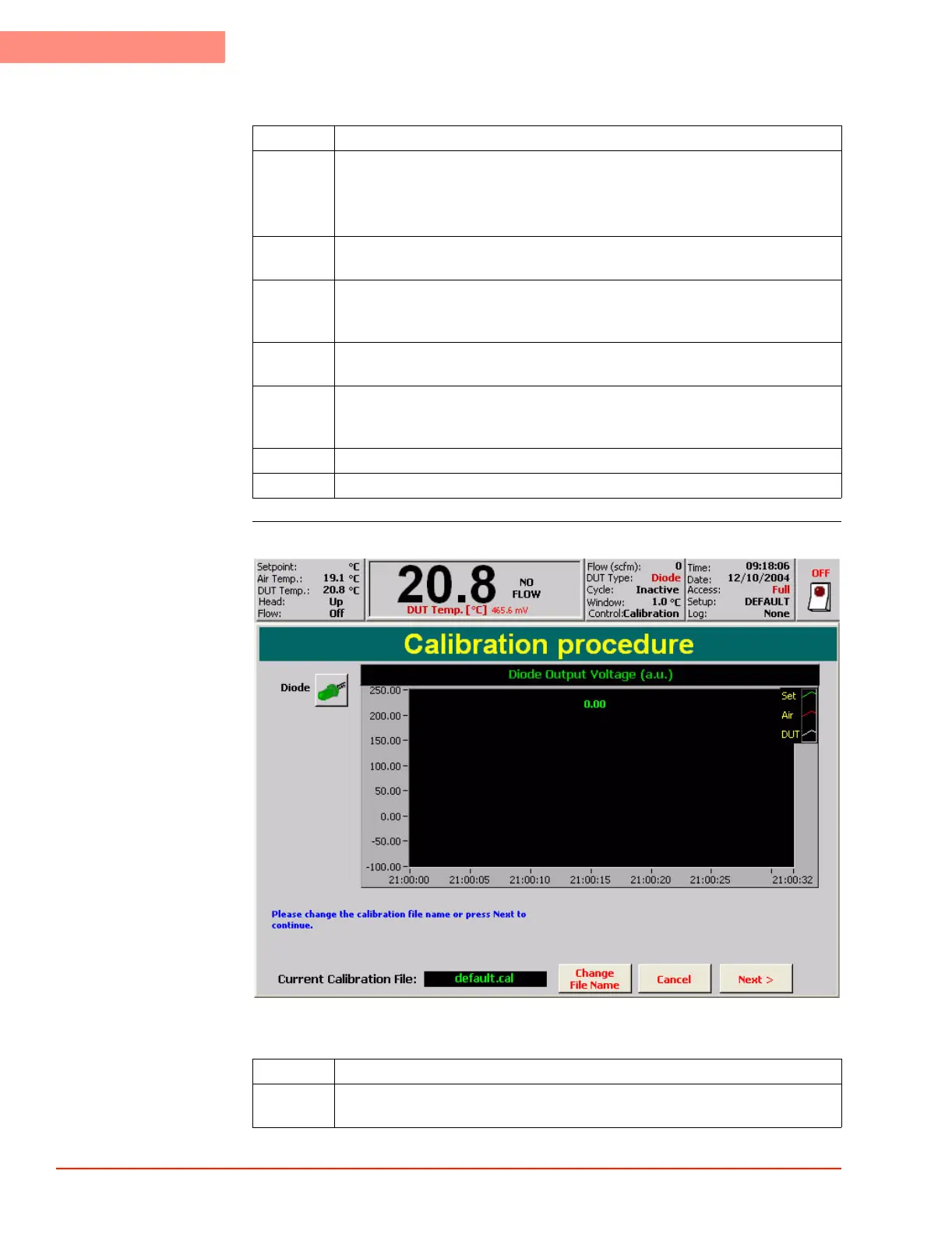

Diode Sensor Calibration (DUT Mode)
5-40 TP04300 Series Interface & Applications Manual
External Sensor
Method
(Diode)
.
Step Action
1 Press the Change Calibration Name button to re-name the calibration file as
desired.
If you do NOT re-name the Calibration file, you will overwrite the current
Calibration file.
2In the Low Calibration Point, C field, enter the low calibration point. This
value is provided by the Diode Manufacturer’s Specifications.
3In the Low Diode Reading, mv field, enter the millivolt value of the Diode at
the low calibration point. This value is provided by the Diode Manufacturer’s
Specifications.
4In the High Calibration Point, C field, enter the high calibration point. This
value is provided by the Diode Manufacturer’s Specifications.
5In the High Diode Reading, mv field, enter the millivolt value of the Diode at
the high calibration point. This value is provided by the Diode Manufacturer’s
Specifications.
6 Press Save Calibration and Done.
7 The Diode is now calibrated according to the Manufacturer’s Specifications.
Step Action
1 Run the system for half an hour at Ambient to stabilize components at normal
operating temperatures.
To Next Page
