ROUTINE MAINTENANCE
Diode Sensor Calibration (DUT Mode)
TP04300 Series Interface & Applications Manual 5-41
2 Toggle Head into Up position so System is not supplying main air flow
controlled to a setpoint (other than "Trickle" air flow).
NOTE: 4300B Systems should have the “Head: Lock” on. The “Head: Lock”
can be toggled on/off in the Utilities Screen.
3 Press the Change File Name button to re-name the calibration file as desired.
IF you do NOT re-name the Calibration file, you will overwrite the current
Calibration file.
4 Connect a Diode from the System’s rear I/O port to the Main Air Thermal Cap.
Connect a sensor from the Calibrator to the Main Air Thermal Cap:
5 Once the sensors have been properly connected, press “NEXT >”.
6 Enter the desired “Low Calibration” setpoint (between -60.0 and 0.0) and press
“OK”.
Once “OK” is pressed, the System will ramp to the “Low Calibration” setpoint.
Step Action

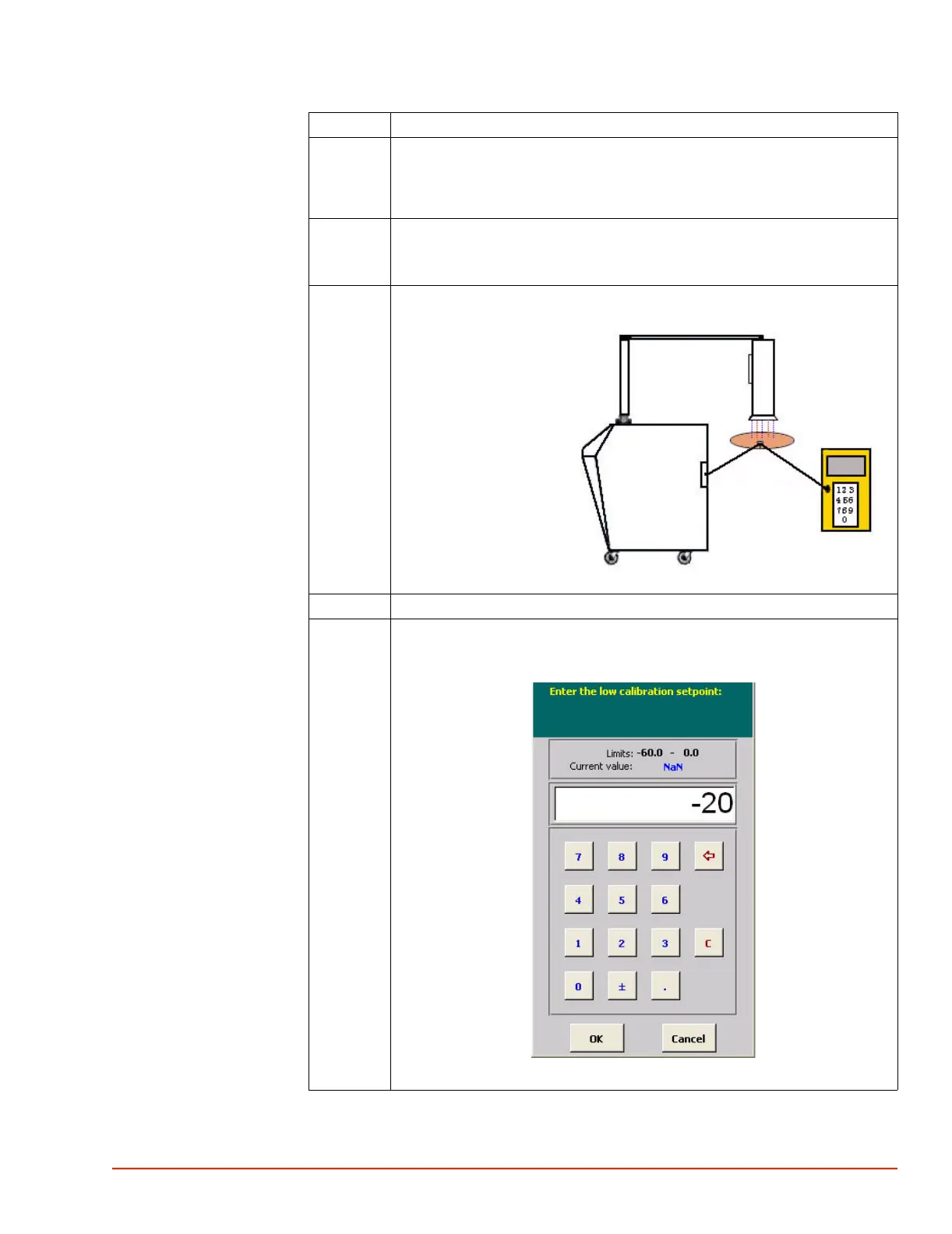

Diagram:
Diode and External
Sensor setup
To Next Page
