PREPARATION FOR USE
Configuring the Auto-Transformer Wires
TP04300 Series Interface & Applications Manual 2-23

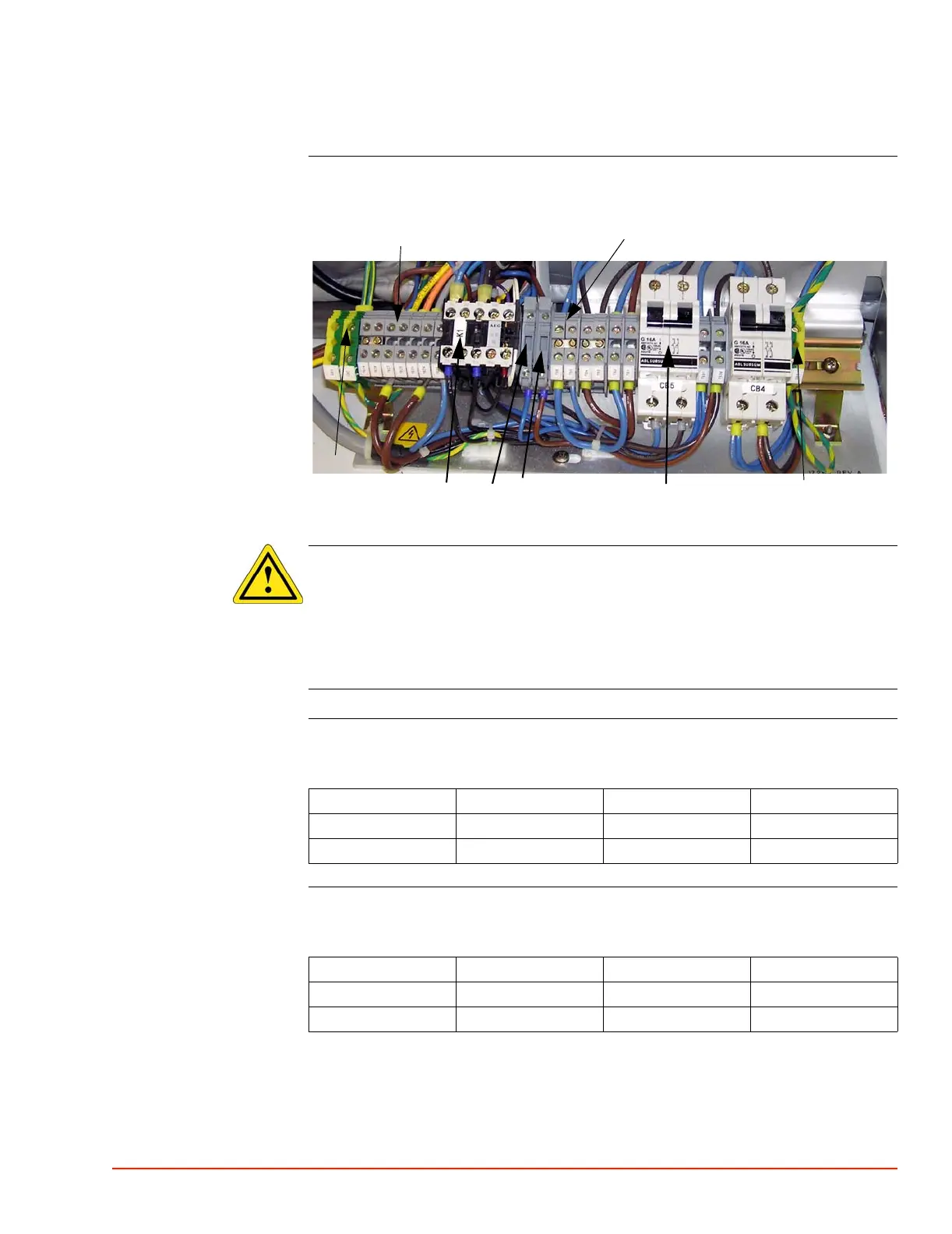

Configuring the Auto-Transformer Wires
High Voltage DIN
Rail (terminal
blocks) Detailed
WARNING
WARNING 1: Operating personnel should perform only the procedures described and
recommended in this manual. Only qualified service personnel familiar with the electrical
shock hazards present inside the equipment should perform any disassembly or corrective
maintenance.
Wiring for Input
Voltage of 235V to
250V:
Wiring for Input
Voltage of 200V to
214V:
GB1
GB2
CB4
CB5
F2
F1
K1
Terminal Blocks:
29, 28, 27, 26, 25, 24, 23
Terminal Blocks:
6, 5, 4, 3, 2, 1,
Wire Marker # Wire Color From To
104 Brown TB4-2 TB29-1
107 Brown TB1-2 TB28-1
Wire Marker # Wire Color From To
104 Brown TB4-2 TB27-2
107 Brown TB1-2 TB24-2
