PREPARATION FOR USE
Clearances, Dimensions, Weight
2-14 TP04300 Series Interface & Applications Manual
Section D:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Placement Requirements
Clearances, Dimensions, Weight
The proposed placement site for the TP04300 ThermoStream should be one near to necessary
ac power and compressed air service interconnections. Also, the proposed site should be near
any tester with which the TP04300 will be interfaced.
For proper internal ventilation (air intake through front, air exhaust out back) of the TP04300
and to provide for supply connections, the system should be located with an 8 inch minimum
clearance, behind the system.
The Clearance, Dimensions, and Weights of the TP04300A and TP04300B Systems are listed
in the Specification Sheet(s) in the back of this Manual.

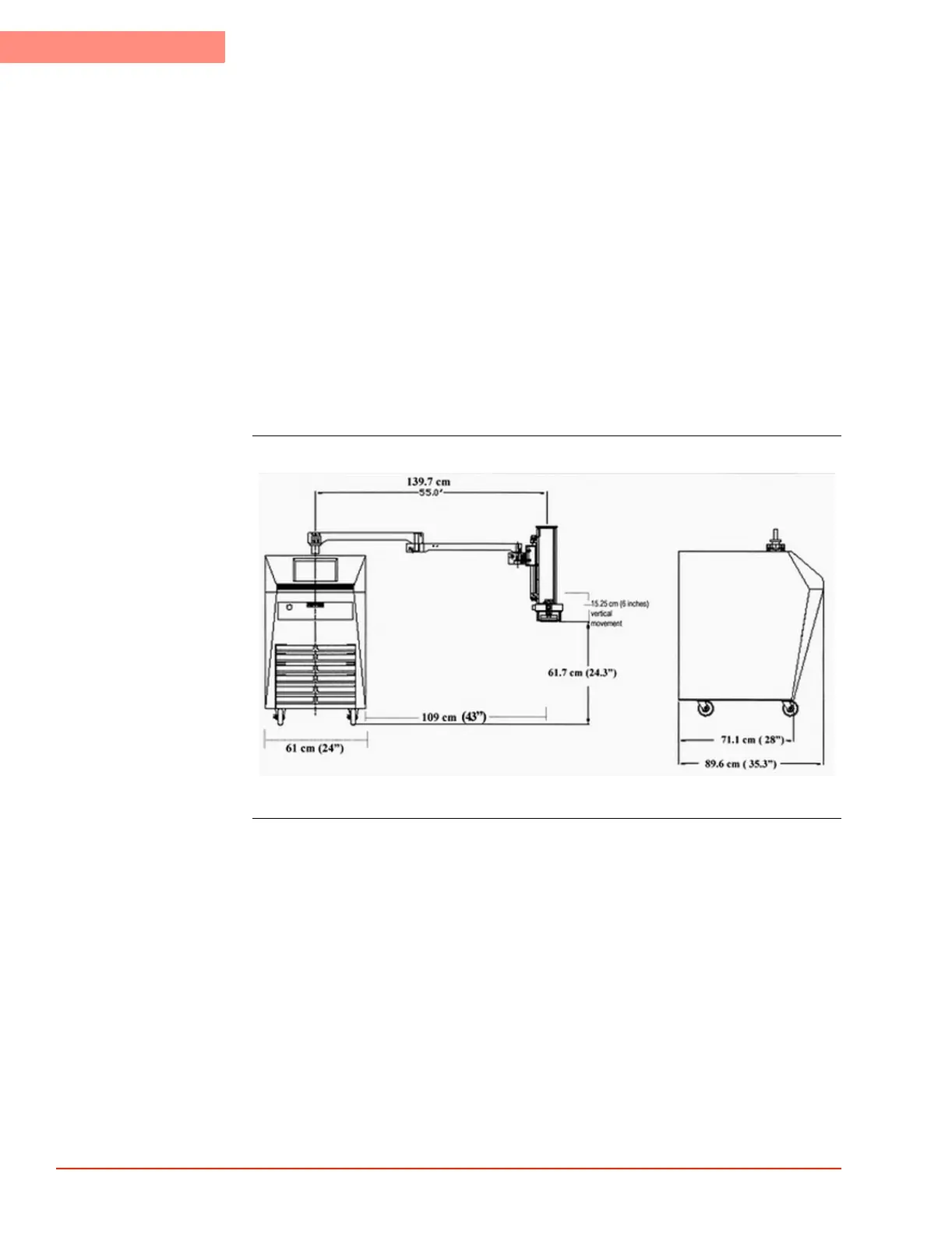

Dimensions, Full
Arm Radial
Clearance
(TP04300A)
