PREPARATION FOR USE
Connecting the Main Air Supply (Compressed Air)
2-28 TP04300 Series Interface & Applications Manual
Connecting the Main Air Supply (Compressed Air)
Introduction The TP04300 is supplied with a 3 meter long, 5/8-inch ID braid reinforced, rubber air hose,
two hose clamps, and two 1/2-inch NPT barb fittings.

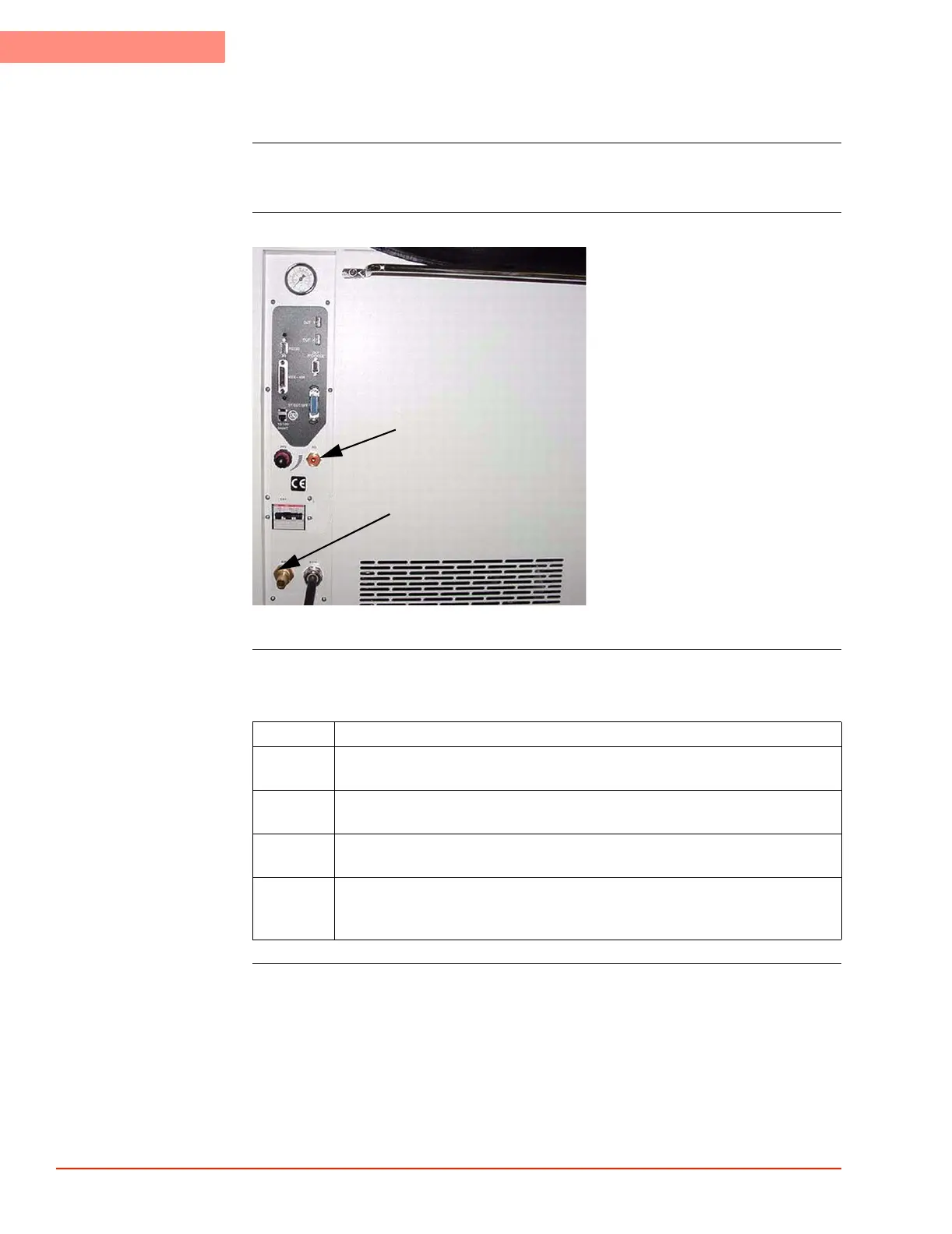

Rear Panel, Air
Connections
Procedure To connect the system to a compressed air supply:
Purge Air (Out)
Main Air
(Air In)
Step Action
1 A 1/2-inch NPT barb fitting is pre-installed at the factory into the system rear
panel, marked AIR.
2 Push the air hose over the rear panel AIR barb fitting and secure with a hose
clamp (supplied)
3 Connect other end of air hose to the facility compressed air supply and secure
with a hose clamp (supplied).
4 The facility air supply should have a dedicated shut off valve to allow the
system to be isolated from the air supply without disconnecting the hoses
during routine maintenance procedures.
