ROUTINE MAINTENANCE
Sensor Calibration: Type T, Type K Thermocouples (DUT Mode)
TP04300 Series Interface & Applications Manual 5-29

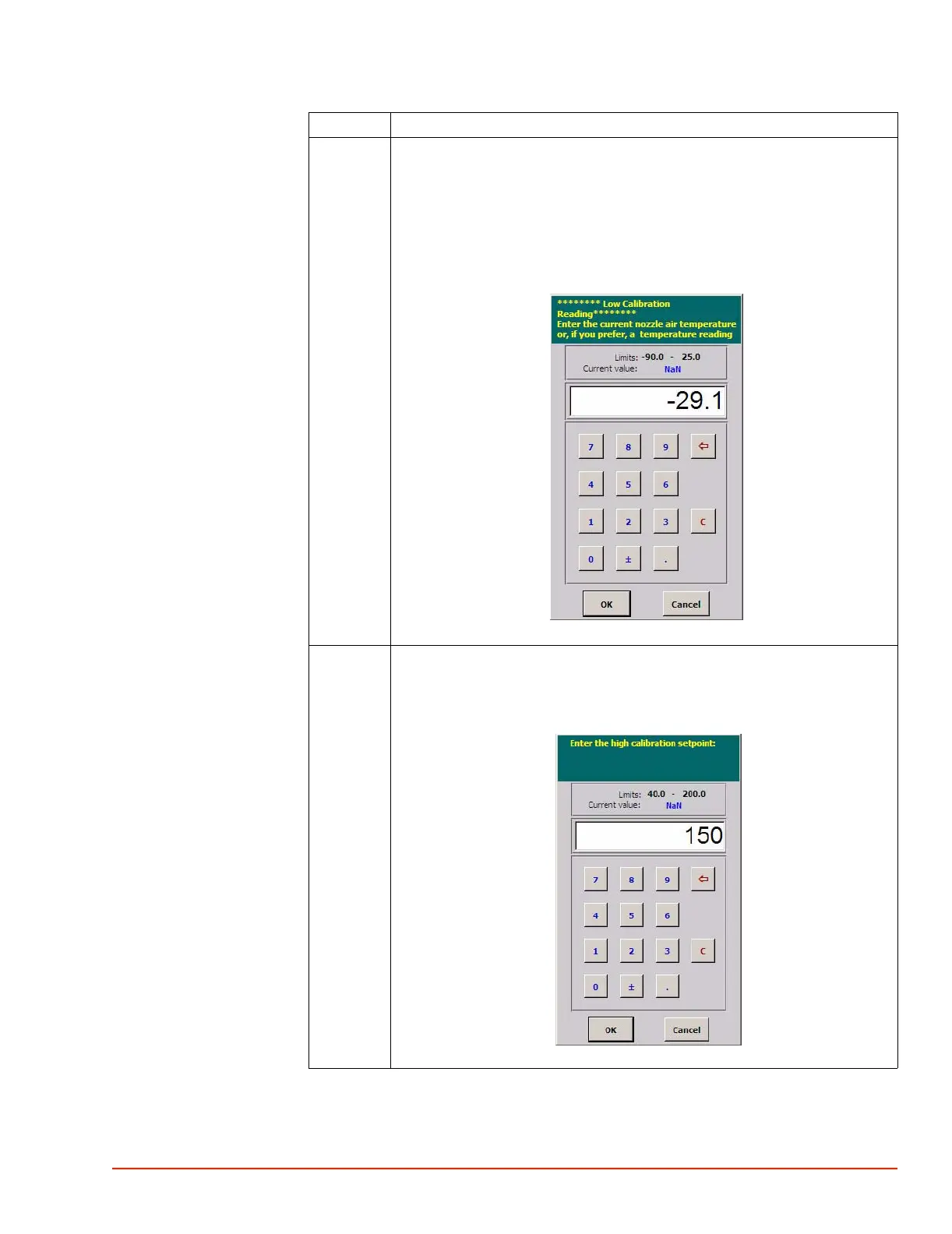

7 Enter the ***Low Calibration Reading***.
The Low Calibration Reading is the temperature that is displayed on the
External Meter.
In the Example below, -30.0 was the Low Calibration Setpoint, -29.1 was the
temperature displayed on the External Meter.
Enter the External Meter Reading.
Press “OK”.
8 Enter the desired “High Calibration” setpoint (between 40.0 and 200.0) and
press “OK”.
Once “OK” is pressed, the System will ramp to the “High Calibration” setpoint.
Step Action
