MISCELLANEOUS
4157082 First Edition 9-5
9

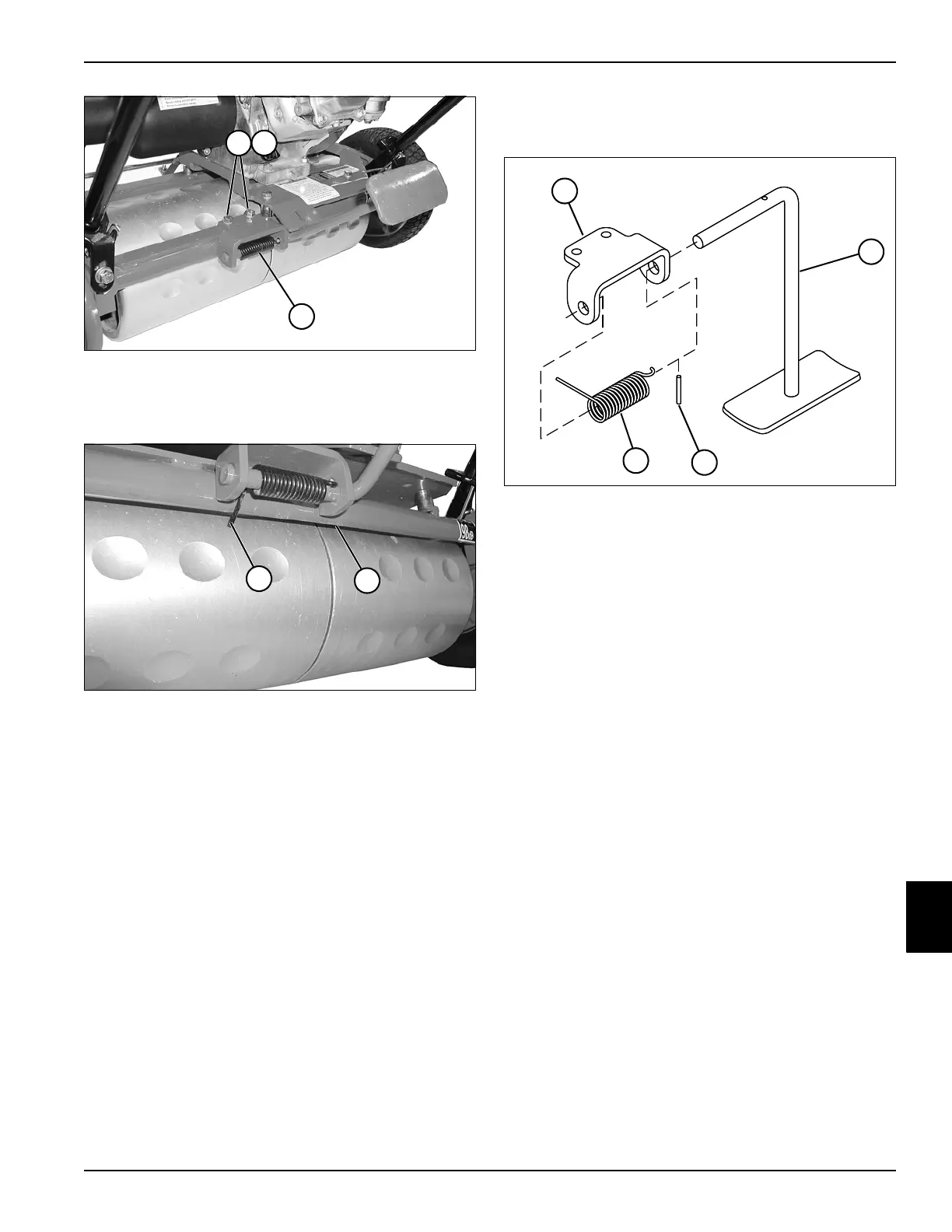

Figure 9-12
3. Remove two screws (1) and lock washers (2).
4. Remove kickstand assembly (3).
Figure 9-13
Installation Notes
• Install the kickstand by reversing the order of
removal.
• Make sure the end of the spring (4) is positioned
under the rear crossbar (5).
Disassembly and Assembly
See Figure 9-14.
Figure 9-14
1
TN0065
2
3
4
TN0067
5
1 Support Bracket
2 Support Rod and Foot Rest
3Groove Pin
4Spring
1
TN0066
2
3
4
To Next Page
