3-12 4157082 First Edition
ENGINE
3

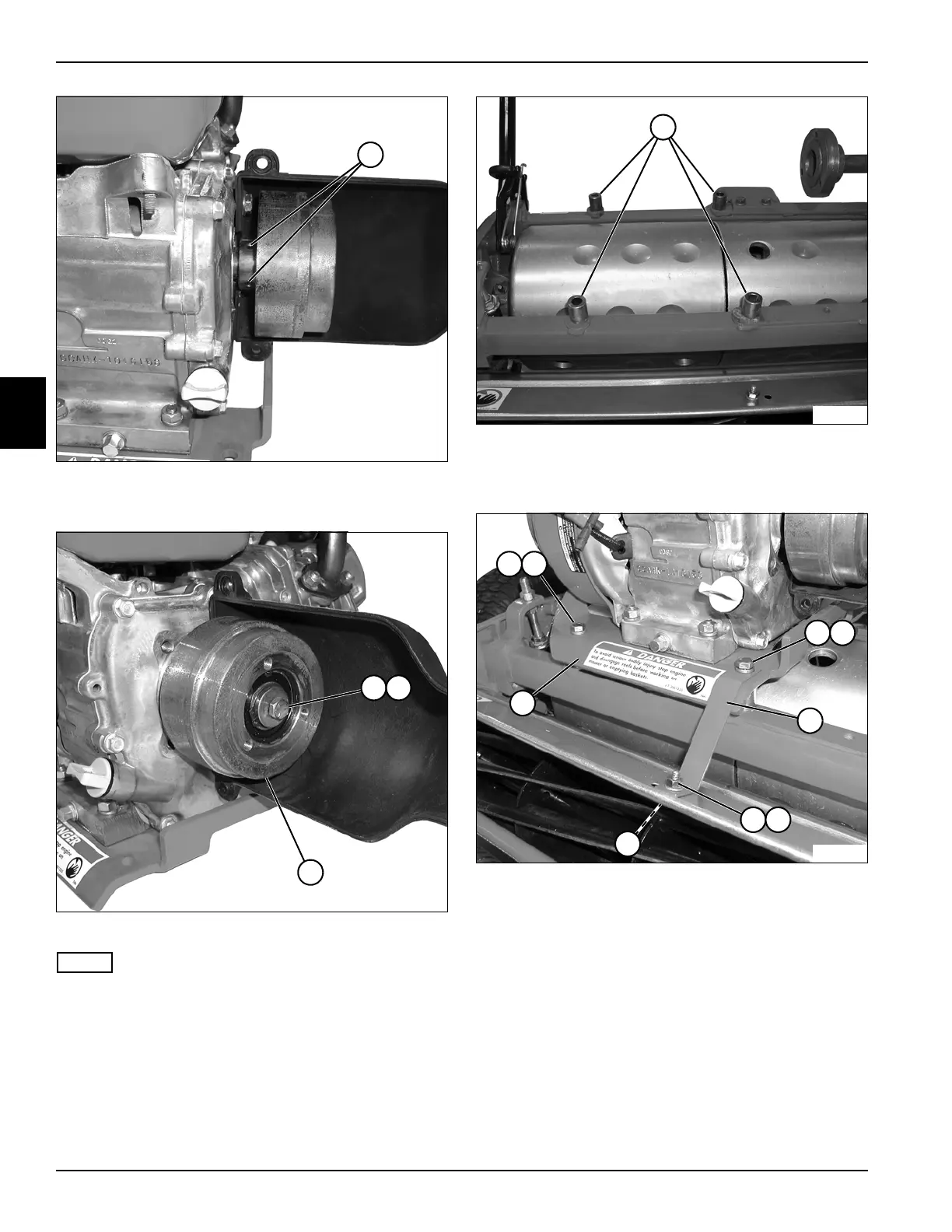

Figure 3-25
6. Tighten two set screws (15).
Figure 3-26
NOTE
Use a strap wrench to prevent clutch from turning while
installing screw.
7. Apply Loctite 242 (Blue) to threads of screw (16).
Install screw (16) and washer (17) on clutch (18).
Figure 3-27
8. Install four spacers (19) on frame and install
engine/clutch assembly.
Figure 3-28
9. Secure engine mounting plate (28) to frame using a
screw (20) and lock washer (21). Do not tighten
hardware at this time.
10. Install bracket (24) onto engine mounting plate (28)
using a screw (22) and lock washer (23). Do not
tighten hardware at this time.
11. Secure bracket to grass shield using a screw (27),
lock washer (25), and nut (26). Do not tighten
hardware at this time.
TN0076
15
16
TN0075
17
18
TN0079
19
20
TN0074
22
24
25
27
21
23
26
28
To Next Page
