ENGINE
4157082 First Edition 3-11
3
Installation

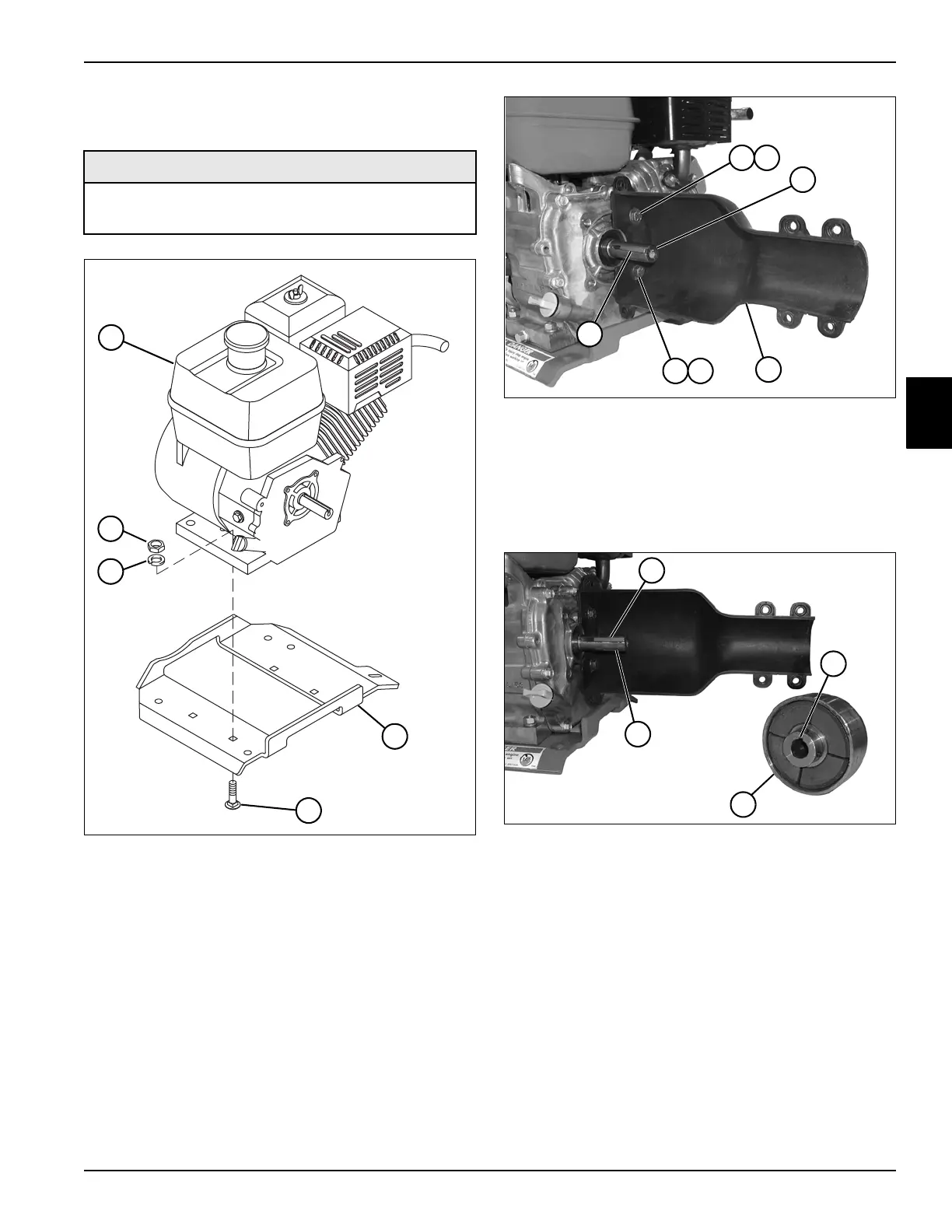

See Figures 3-22 through 3-33.
Figure 3-22
1. Install mounting plate (2) on engine (1) using four
carriage bolts (3), lock washers (4), and nuts (5).
Figure 3-23
2. Install rear half of clutch cover (9) on engine using
two screws (6) and washers (7).
3. Install key (10) in output shaft (8).
4. Apply a thin film of anti-seize compound to output
shaft (8).
Figure 3-24
5. Align slot (12) in clutch with key (11) on output shaft
(14) and install clutch (13) on output shaft (14).
Required Materials
Anti-Seize Compound
Loctite 242 (Blue) Thread Sealant
TN0045
1
5
4
3
2
TN0077
9
10
6 7
8
6 7
12
TN0078
13
14
11
