ENGINE
4157082 First Edition 3-13
3

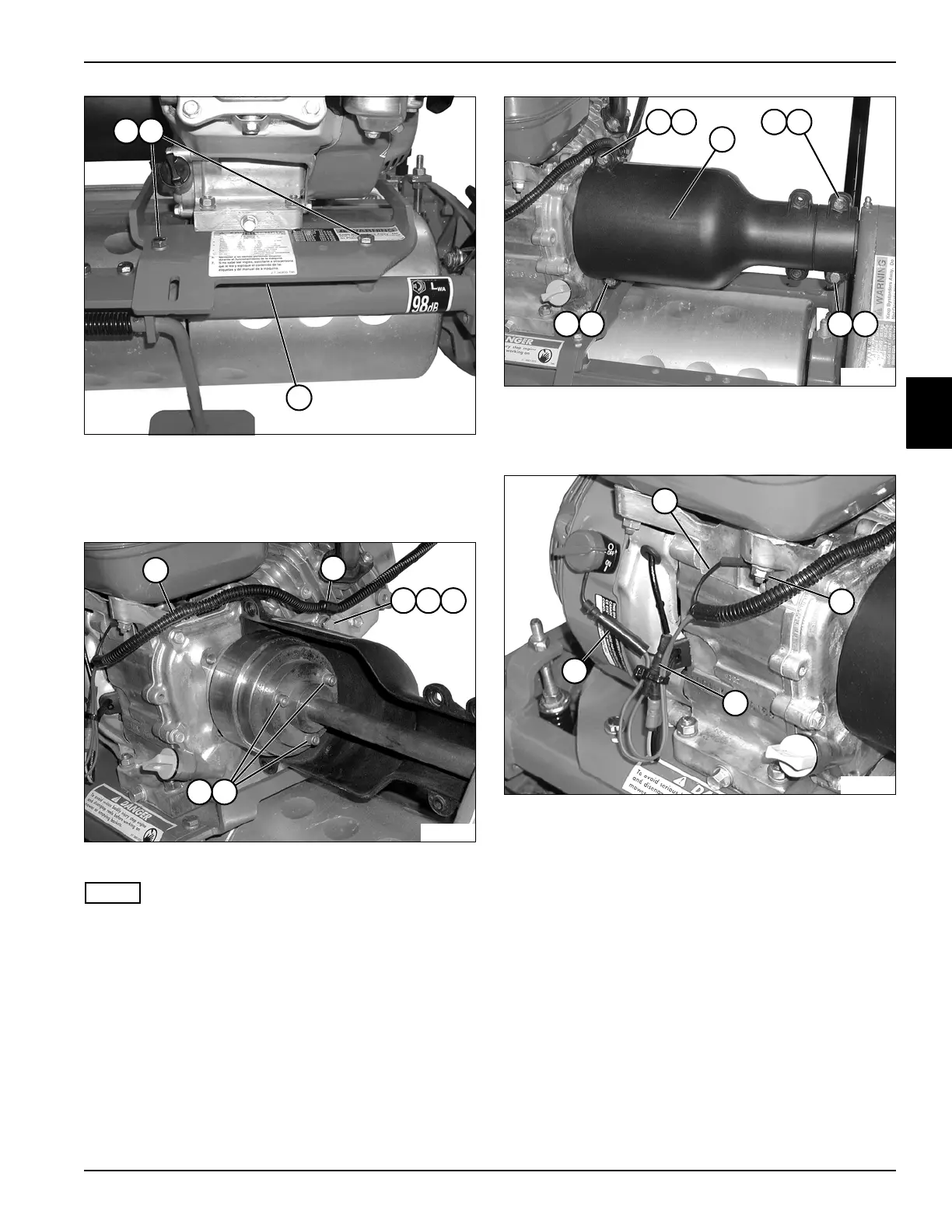

Figure 3-29
12. Install two screws (29) and lock washers (30) at rear
of engine mounting plate (31). Do not tighten
hardware at this time.
Figure 3-30
NOTE
Use a strap wrench to prevent clutch from turning while
installing screws.
13. Secure clutch/input shaft to clutch using three
socket-head screws (37) and lock washers (38).
14. Rotate engine and clutch shaft five times, using pull
start rope.
15. Tighten all engine mounting plate hardware
previously installed in Steps 9 through 12.
16. Secure wiring harness (32) to engine using a clamp
(33), screw (34), lock washer (35), and flat washer
(36).
Figure 3-31
17. Install front half of clutch cover (41) using four screws
(39) and lock nuts (40).
Figure 3-32
18. Connect wire (44) to engine harness.
19. Connect wire (45) to engine on/off switch.
20. Install ground wire (42) to stud and secure with nut
(43).
TN0073
31
29 30
34
TN0009
35
33
3837
36
32
TN0008
~
39 40
41
39 40
39 40
39 40
TN0072
42
43
45
44
To Next Page
