POWER TRAIN
5
Disassembly and Assembly
See Figure 5-69.

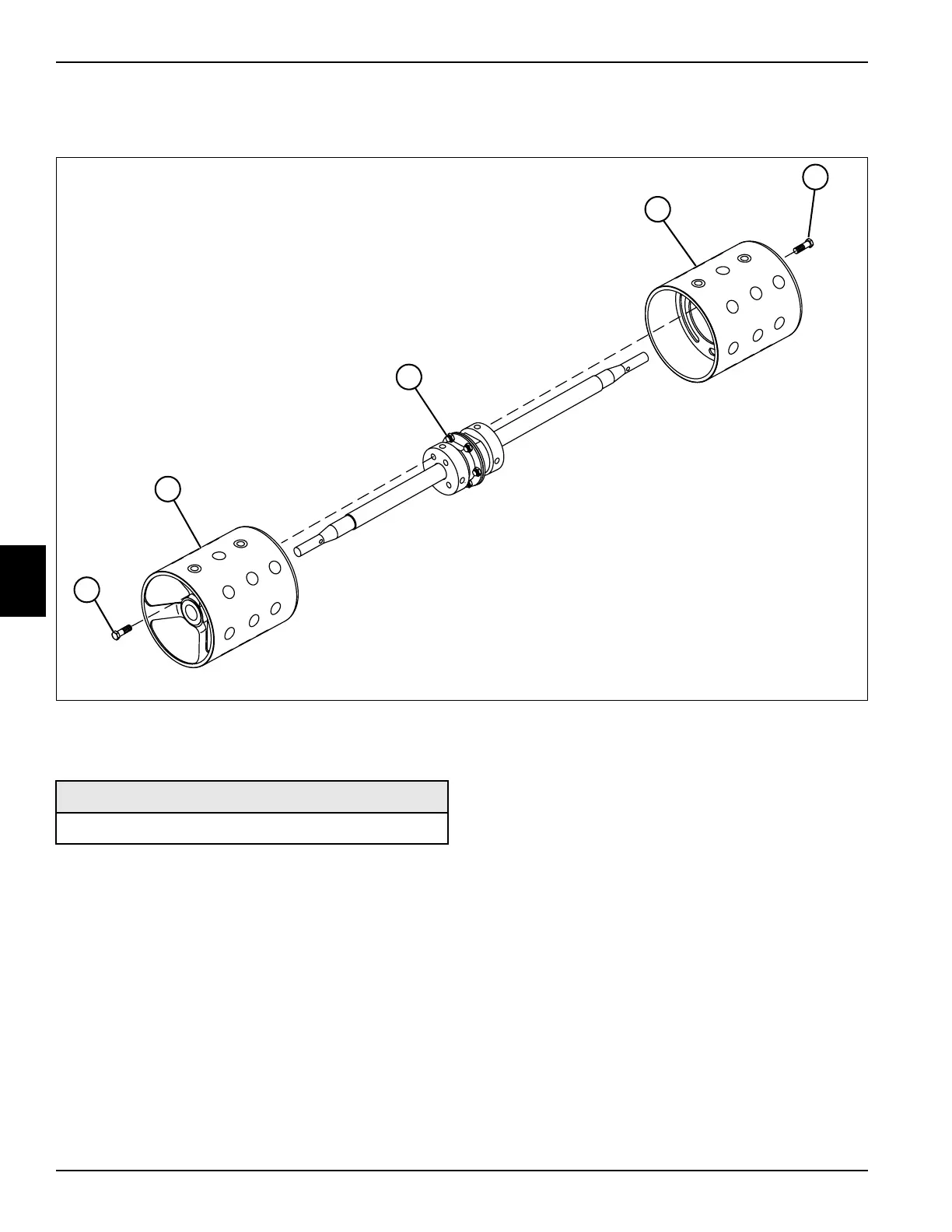

Figure 5-69
Assembly Note
Apply Loctite
®
242 (Blue) Thread Sealant to the threads
of the special bolts (1) before installation.
1 Special Bolt (4 per Drum)
2 Traction Drum (2)
3 Differential Assembly
TN0135
3
1
1
2
2
Required Materials
Loctite
®
242 (Blue) Thread Sealant
