Use a 1.5-kVA power line regulator in areas where the supplied power uctuates in
excess of ± 10% of the normal voltage. Power uctuations can adversely affect the
function of the systems.
Note: A power line regulator monitors the input current and adjusts the power
supplied to the systems. It does not protect against a power surge or failure.
Use a 10-kVA surge protector (line conditioner) in areas with frequent electrical
storms or near devices that are electrically noisy, such as refrigerators, air
conditioners, or centrifuges. Short-duration, high-voltage power uctuations can
abruptly terminate the function of, and thereby damage the components of, the
systems.
Note: A dedicated line and ground between the systems and the building’s main
electrical service can also prevent problems caused by power uctuations.
About the instrument

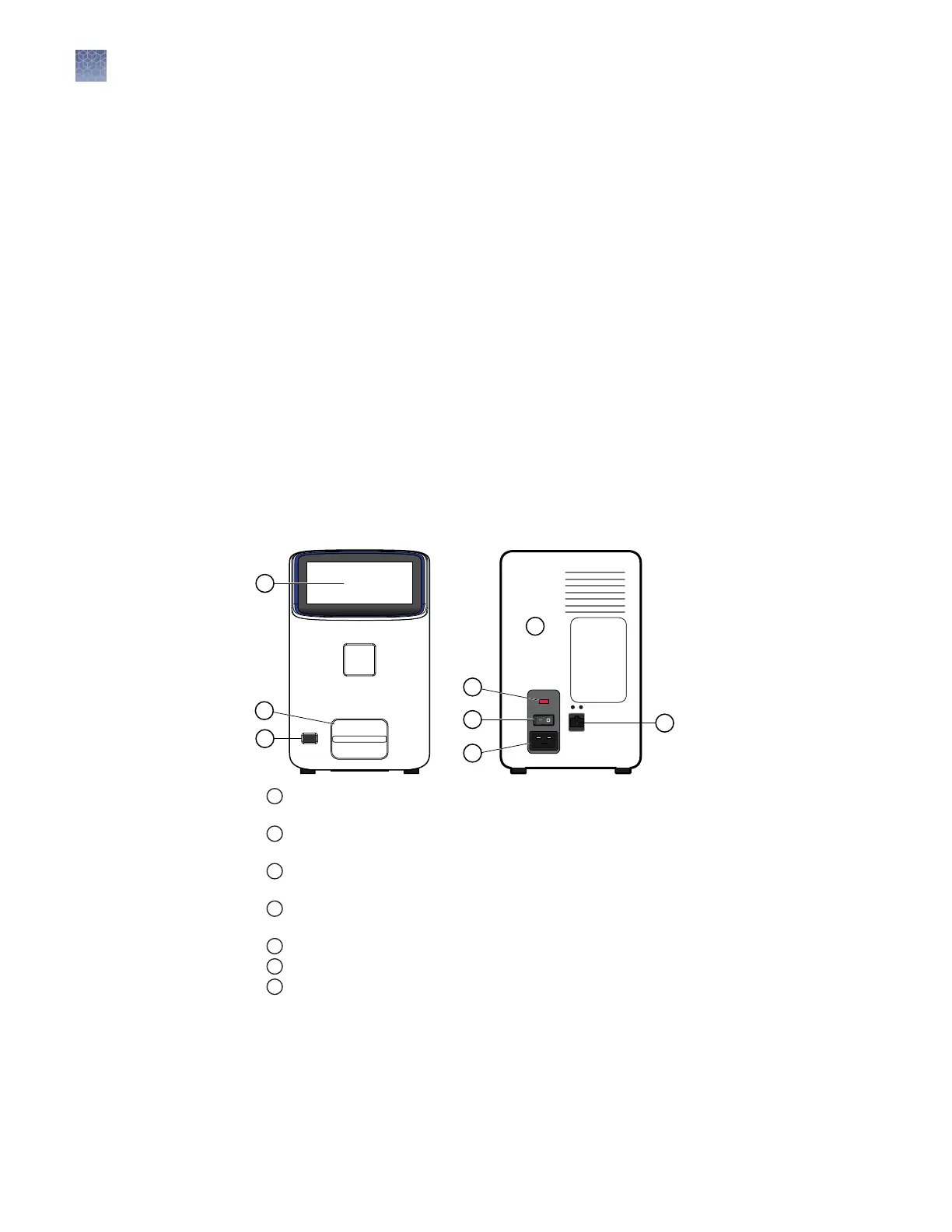

The QuantStudio
™
3D Digital PCR Instrument consists of the components shown in
the following gure.
1
2
3
4
5
6
7
8
1
Touchscreen—Provides access to the instrument functions, such as data transfer and
instrument operation.
2
Chip tray—Conveys the QuantStudio
™
3D Digital PCR 20K Chip v2 to and from the imaging
stage in the interior of the instrument.
3
USB port—Provides USB communication with the instrument. Can be used to transfer data to
and from the instrument.
4
Fuse cover—Dual 1.6A, Time Lag T, 250 VAC, 5 × 20-mm electrical fuses that protect the
instrument from excessive electrical current.
5
Power switch—Power switch for the instrument, where the states are on ( | ) or off ( O ).
6
Power port—A 100–240 VAC port that provides power to the instrument.
7
Ethernet port—An RJ45 port that provides Ethernet (gigabit) communication with the
instrument.
Power line
regulator
Surge
protector
