Thermo Scientific Applied Biosystems QuantStudio - Unpack and Install the Dual Flat Block Module

3.

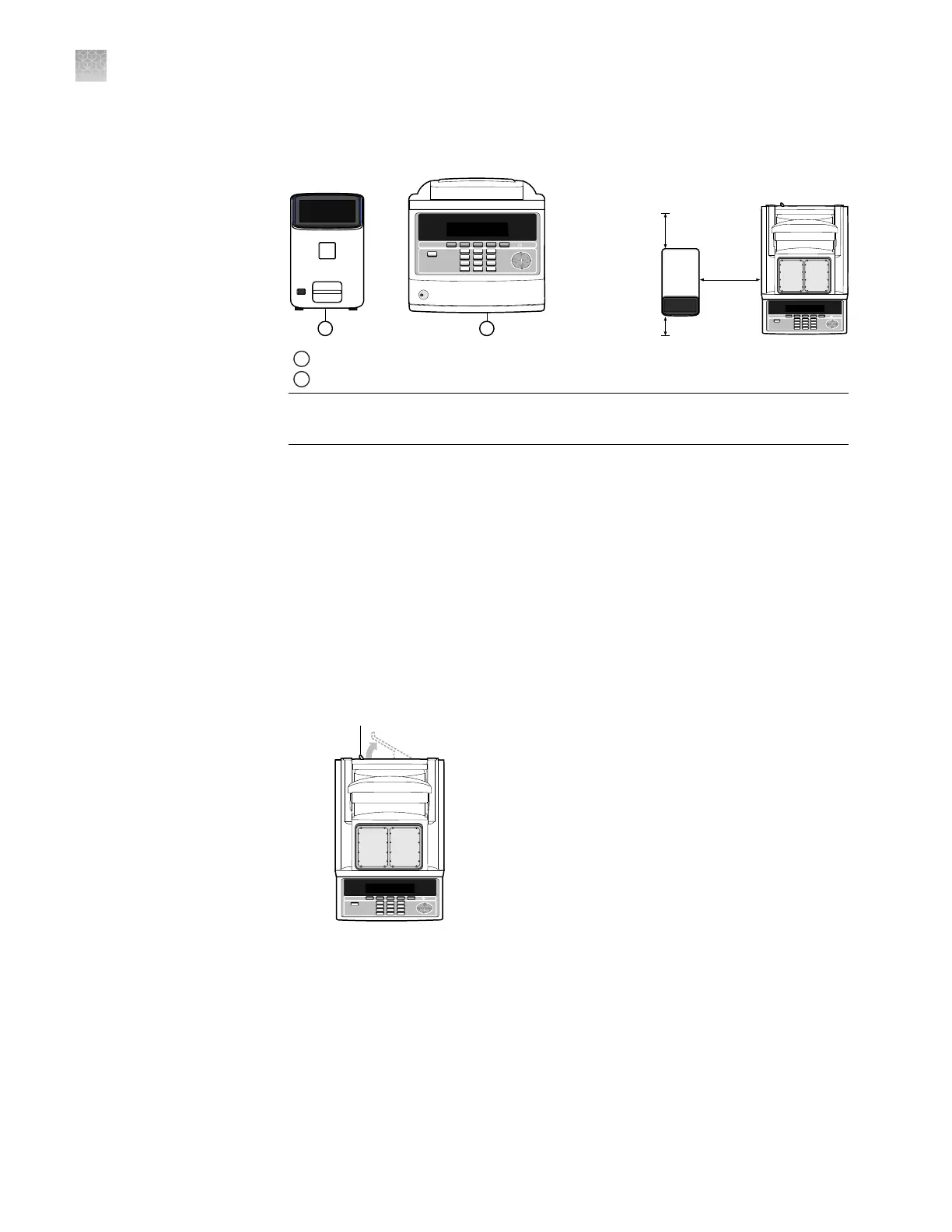

Remove the Base Module from the package and set it on a clean level surface,
then remove the protective cover.
5 cm
(2 in)
20 cm
(8 in)
2
1
15.2 cm
(6 in)
F1 F2 F3 F4
1 2 3
4 5 6
7 8 9
ENTER
STOP
0 CE
F5
GeneAmp
®
PCR System 9700
POWER
F1 F2 F3 F4
1
2 3
4 5 6
7 8 9
ENTER
STOP
0 CE
F5
GeneAmp
®
PCR System 9700
POWER
1
QuantStudio
™
3D Instrument
2
GeneAmp
™
PCR System 9700
IMPORTANT! The GeneAmp
™
PCR System 9700 must be installed on a level
surface.
Note: If not located next to the GeneAmp
™
PCR System 9700, the
QuantStudio
™
3D Instrument requires only 15.2 cm (6 in) of clearance on either
side of the instrument.
4.
Inspect the GeneAmp
™
PCR System 9700 Base Module for damage caused
during transportation.
If the instrument is damaged, note the location and appearance of the damage,
then contact customer support for assistance.
1.
Open the package containing the Dual Flat Block Module.
2.
Pull the lever out from the GeneAmp
™
PCR System 9700 Base Module.
F1 F2 F3 F4
1
2 3
4 5 6
7
8 9
ENTER
STOP
0 CE
F5
GeneAmp
®
PCR System 9700
POWER
Lever
3.
Remove the Dual Flat Block Module from the package, remove the protective
cover, place it onto the Base Module, then push the Dual Flat Block Module
back to seat the electrical connections.
4.
Push the lever into the Base Module to secure the Dual Flat Block Module.
5.
Inspect the Dual Flat Block Module for damage caused during transportation.
If the instrument is damaged, note the location and appearance of the damage,
then contact customer support for assistance.
Unpack and
install the Dual
Flat Block
Module
Appendix A Install the QuantStudio
™
3D Digital PCR System
Install the GeneAmp
™
PCR System 9700
A
74
QuantStudio
™
3D Digital PCR System User Guide
