QuantStudio
™
3D Digital PCR Instrument layout and connections

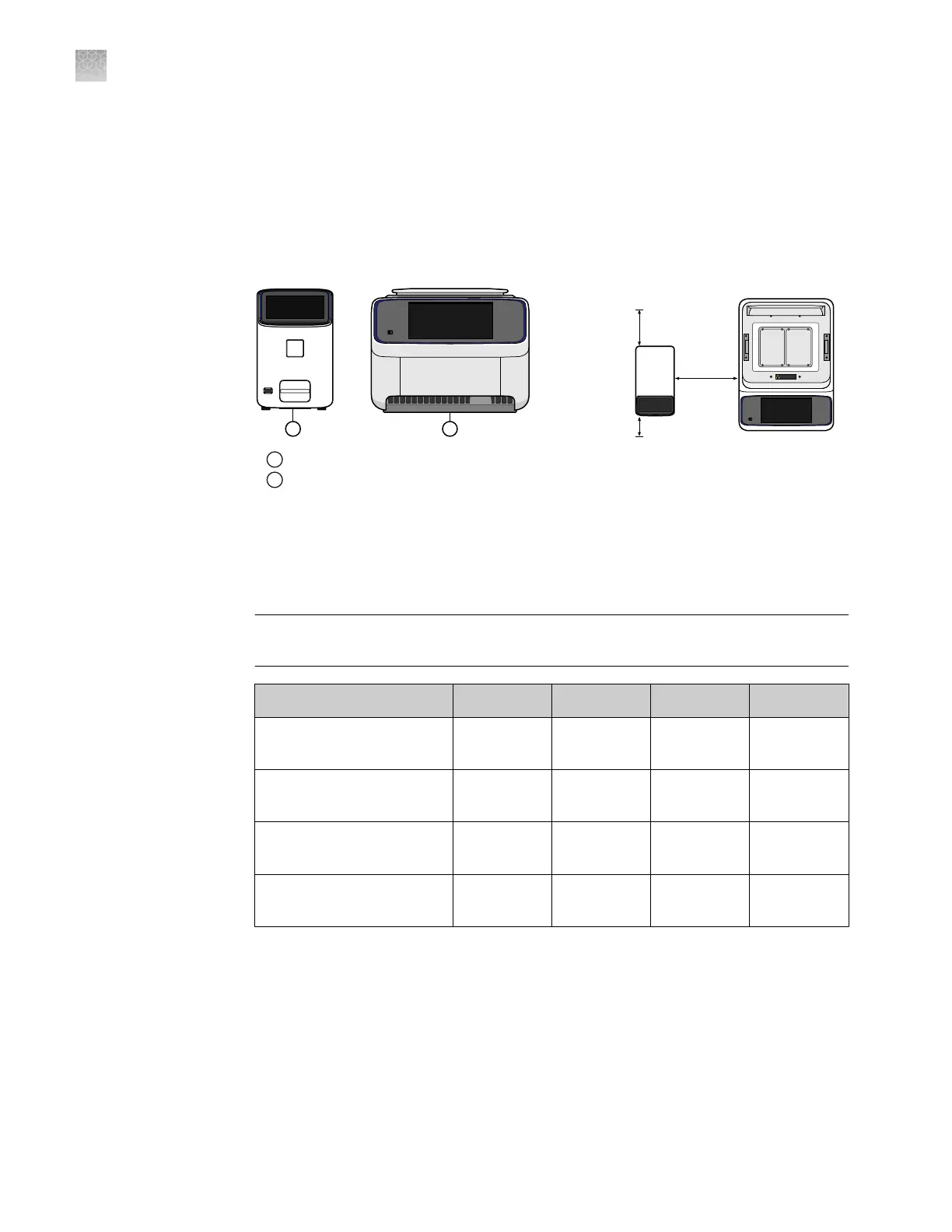

The QuantStudio
™
3D Digital PCR Instrument and the ProFlex
™
2 × Flat PCR System
(or Dual Flat Block GeneAmp
™
PCR System 9700) can be placed on separate
benches or collocated as shown in the following gure. If you place the units
adjacent to one another, provide at least 20 cm (8 inches) clearance between them to
allow for heat dissipation.
5 cm
(2 in)
20 cm
(8 in)
2
1
15.2 cm
(6 in)
ProFlex
PCR System
ProFlex
PCR System
CAUTION HOT
1
QuantStudio
™
3D Digital PCR Instrument
2
ProFlex
™
2 × Flat PCR System
Instrument clearances
The instruments require the following additional clearances:
IMPORTANT! For safety, the outlet used to power the instruments must be
accessible at all times.
Component Top Front Sides Back
QuantStudio
™
3D
Digital PCR Instrument
30.48 cm
(12 in.)
30.48 cm
(12 in.)
15.2 cm
(6 in.)
15.2 cm
(6 in.)
QuantStudio
™
3D
Digital PCR Chip Loader
25.4 cm
(10 in.)
15.2 cm
(6 in.)
15.2 cm
(6 in.)
25.4 cm
(10 in.)
ProFlex
™
2 × Flat PCR
System
15.5 cm
(6.1 in.)
[1]
— —
23.0 cm
(9 in.)
[2]
Dual Flat Block GeneAmp
™
PCR System 9700
20.38 cm
(8 in.)
—
20.38 cm
(8 in.)
20.38 cm
(8 in.)
[1]
With the heated cover open.
[2]
Ensures adequate airflow and cooling.
Appendix B Specifications and Layout
QuantStudio
™
3D Digital PCR Instrument layout and connections
B
80
QuantStudio
™
3D Digital PCR System User Guide
