About the QuantStudio
™
3D Digital PCR System
The QuantStudio
™
3D Digital PCR System provides quantitative and qualitative
detection of target nucleic acid sequences (targets) using post-PCR (endpoint)
analysis.
Use the QuantStudio
™
3D Digital PCR Instrument to perform imaging and preliminary
analysis of a QuantStudio
™
3D Digital PCR 20K Chip v2. The chip must have been
loaded with uorescent-labeled quantitative PCR reagents (TaqMan
™
probe-based
assays or SYBR
™
Green primer-based assays) and thermal cycled using a ProFlex
™
2 × Flat PCR System (or Dual Flat Block GeneAmp
™
PCR System 9700). The
QuantStudio
™
3D AnalysisSuite
™
Software performs subsequent analysis and post-
processing to yield relative or absolute quantication results from the raw imaging
data.
1
4
3
6
7
8
5
9
10
2
12
11

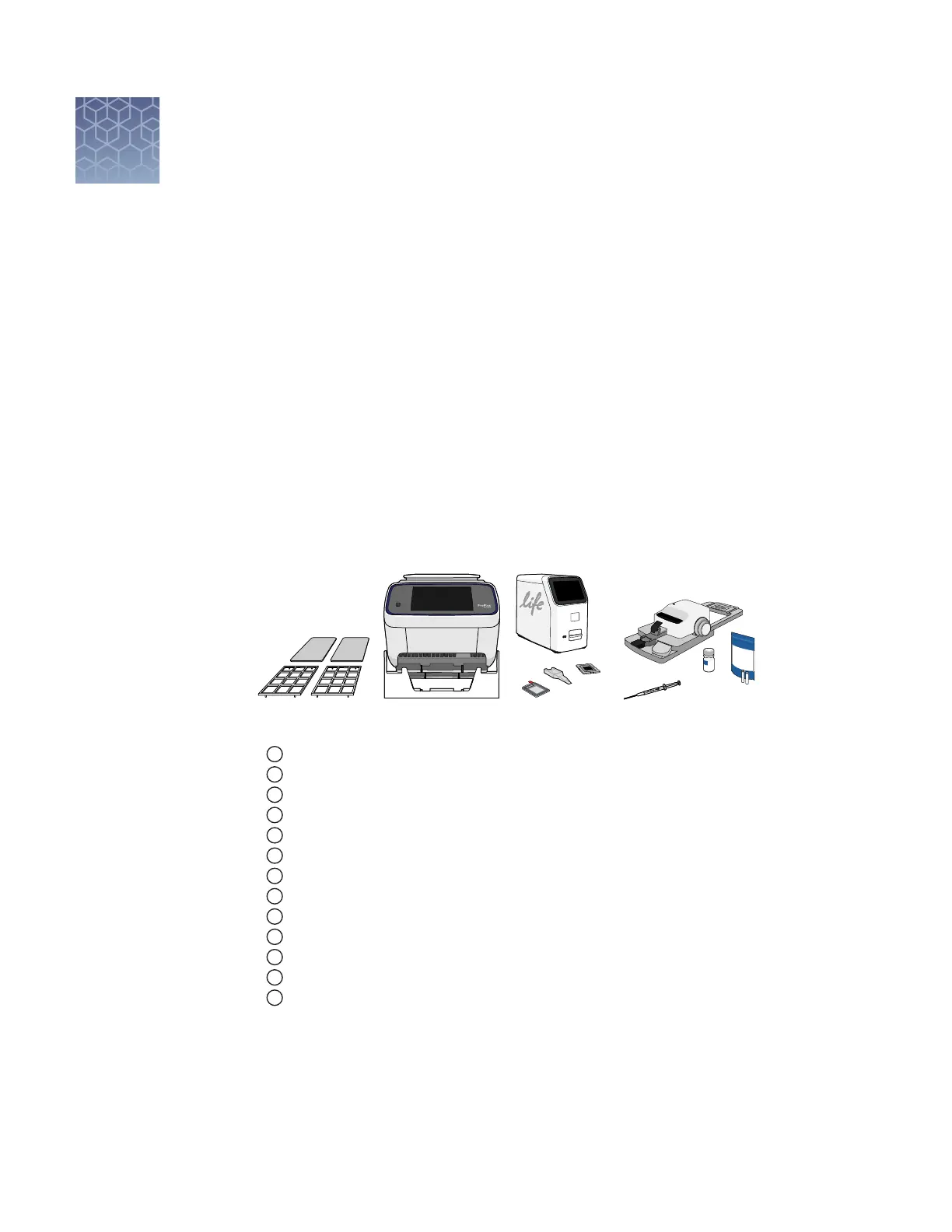

Figure 1 Components of the QuantStudio
™
3D Digital PCR System
1
QuantStudio
™
3D Digital PCR Thermal Pads
2
QuantStudio
™
3D Digital PCR Chip Adapters
3
ProFlex
™
2 × Flat PCR System (or Dual Flat Block GeneAmp
™
PCR System 9700)
4
QuantStudio
™
3D Tilt Base
5
QuantStudio
™
3D Digital PCR Instrument
6
QuantStudio
™
3D Digital PCR Chip Lid v2
7
QuantStudio
™
3D Digital PCR Sample Loading Blade
8
QuantStudio
™
3D Digital PCR 20K Chip v2
9
(Optional) QuantStudio
™
3D Digital PCR Chip Loader
10
Immersion Fluid syringe
11
QuantStudio
™
3D Digital PCR Master Mix v2
12
Fluorescent-labeled quantitative PCR reagents (TaqMan
™
Assays or SYBR
™
Green primers)
13
(Not shown) QuantStudio
™
3D AnalysisSuite
™
Software
1
8
QuantStudio
™
3D Digital PCR System User Guide
