GlowController
g346552

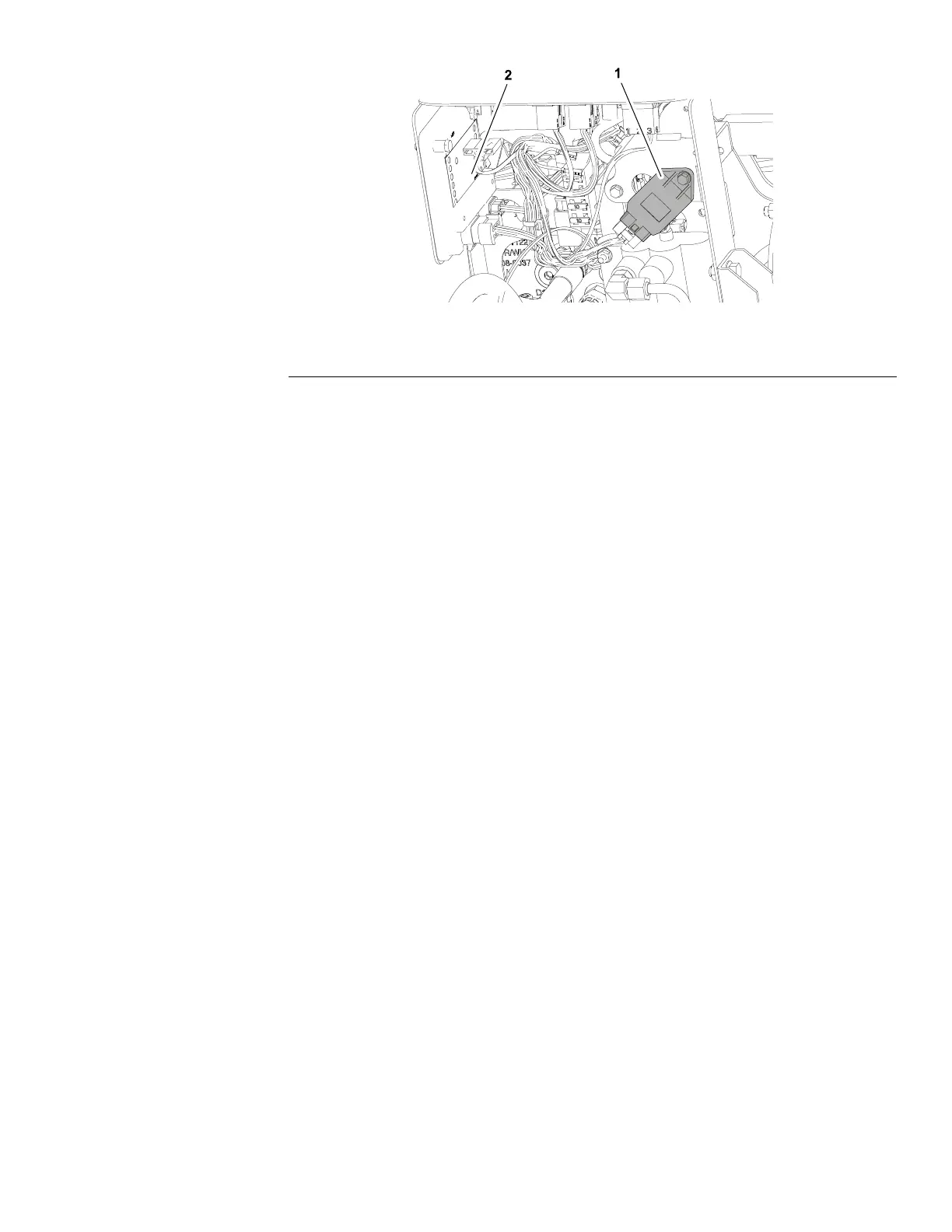

Figure141
1.Glowcontroller2.SCM
Thecontrollerislocatedundertherightlowercornerofthecontrolpanel(Figure
141).
Note:RefertotheElectricalSchematicsinAppendixA(pageA–1)when
troubleshootingtheglowcontrollercircuit.
ControllerOperation
1.WhenthekeyswitchisturnedtotheRUNposition,thecontrollerenergizes
theglowplugsandlightsuptheglowlampforapproximately6seconds.
2.WhenthekeyswitchisheldintheSTARTposition,theglowplugswill
energizewhiletheswitchisheldinSTARTandtheglowlampwillnotlight.
3.WhenthekeyswitchisreleasedfromSTARTtoRUN,theglowplugswill
de-energizeandtheglowlampwillremainoff.
ControllerChecks
1.Ensurethatthereispowerfromthebattery.
2.Disconnecttheelectricalconnectortothefuelstopsolenoidtopreventthe
enginefromstarting.
3.TurnthekeyswitchtotheRUNposition.Checkthefollowingwhileinthe
RUNposition:
A.Glowindicatorlampison.
B.Glowrelayisenergized.
C.Glowplugsareenergized.
D.Glowindicatorlampgoesoutandglowplugsde-energizeafter
approximately6seconds.
4.TurnthekeyswitchtotheSTARTposition.Checkthefollowingwhilein
theSTARTposition:
A.Glowindicatorlampisout.
B.Glowrelayisenergized.
C.Glowplugsareenergized.
D.Powerexistsatterminal1oftheglowcontroller.
Note:Ifthereisnopowertoterminal1oftheglowcontroller,checkthe
continuityofthecircuitryfromthekeyswitchtotheglowcontrollerand
performstep4again;refertotheElectricalSchematicsinAppendixA(page
A–1).
Reelmaster
®
3100-D/3105-D
Page6–41
ElectricalSystem:ComponentTesting
20252SLRevA
