Toro Reelmaster 3100-D Service Manual

ControlValve(Model03171)
g345779

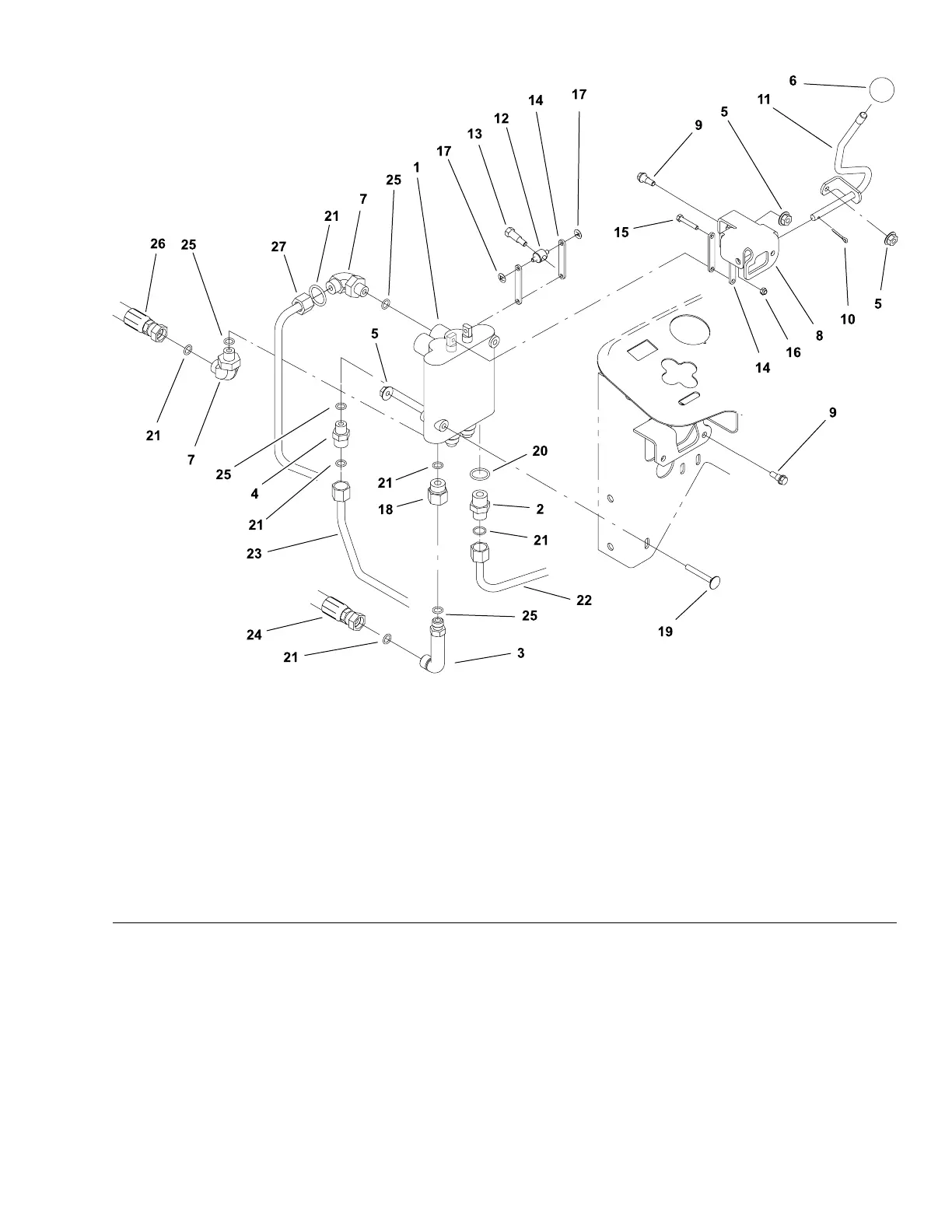

Figure96
1.Controlvalve(2-spool)10.Cotterpin19.Carriagescrew(2each)
2.Hydraulictting(straight)
11.Valvelever
20.O-ring
3.90ºhydraulictting
12.Valveactuatortrunnion
21.O-ring
4.Hydraulictting(straight)
13.Shoulderbolt
22.Hydraulictube
5.Flangenut
14.Link(4each)
23.Hydraulictube
6.Knob15.Bolt24.Hydraulichose
7.90ºhydraulictting
16.Locknut
25.O-ring
8.Valveactuatorbracket17.Pushnut26.Hydraulichose
9.Shoulderbolt18.Hydraulictting
27.Hydraulictube
RemovingtheControlValve
1.Thoroughlycleanhydraulichoseendsandttingsonliftcylindertoprevent
hydraulicsystemcontamination.
Reelmaster
®
3100-D/3105-D
Page5–125
HydraulicSystem:ServiceandRepairs
20252SLRevA
