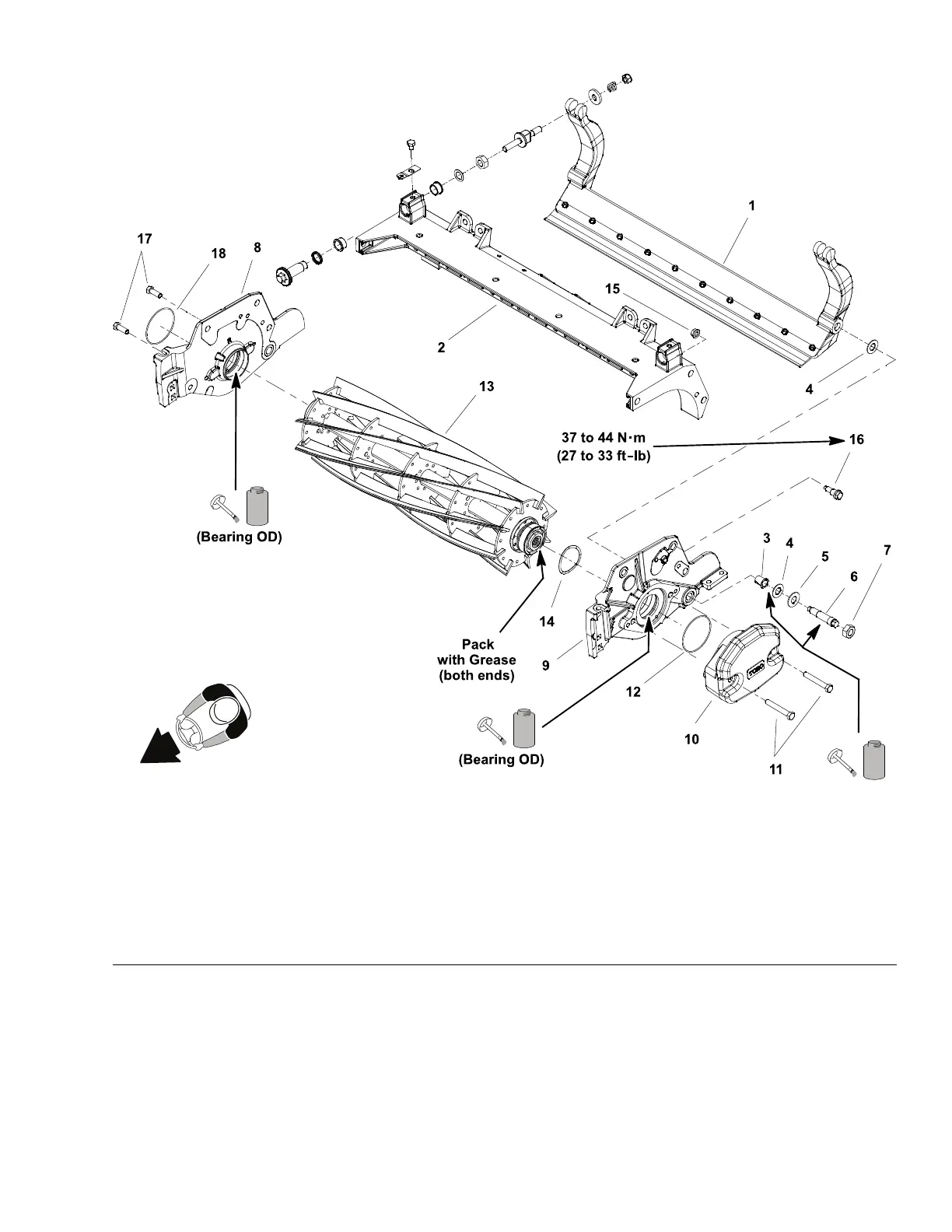

ReelAssembly

g343551

Figure177

1.Bedbarassembly

7.Locknut(2each)13.Cuttingreelassembly

2.Cuttingunitframe

8.RHsideplate14.Wirespring

3.Flangebushing(2each)

9.LHsideplate

15.Flangenut(3eachpersideplate)

4.Plasticwasher(4each)

10.Weight

16.Shoulderbolt(3eachpersideplate)

5.Metalwasher(2each)11.Capscrew(2each)17.Capscrew(2each)

6.Bedbarpivotbolt(2each)12.O-ring18.O-ring

Note:Thissectionprovidestheprocedureforremovingandinstallingthecutting

reelassembly(cuttingreel,splineinserts,greasesealsandbearings)fromthe

cuttingunit.

Note:RefertoReelAssemblyService(page8–26)forinformationonreplacing

cuttingreelsealsandbearings.

Reelmaster

3100-D/3105-D

Page8–19

DPACuttingUnits:ServiceandRepairs

20252SLRevA
