ServiceandRepairs
StandardSeat
g344103

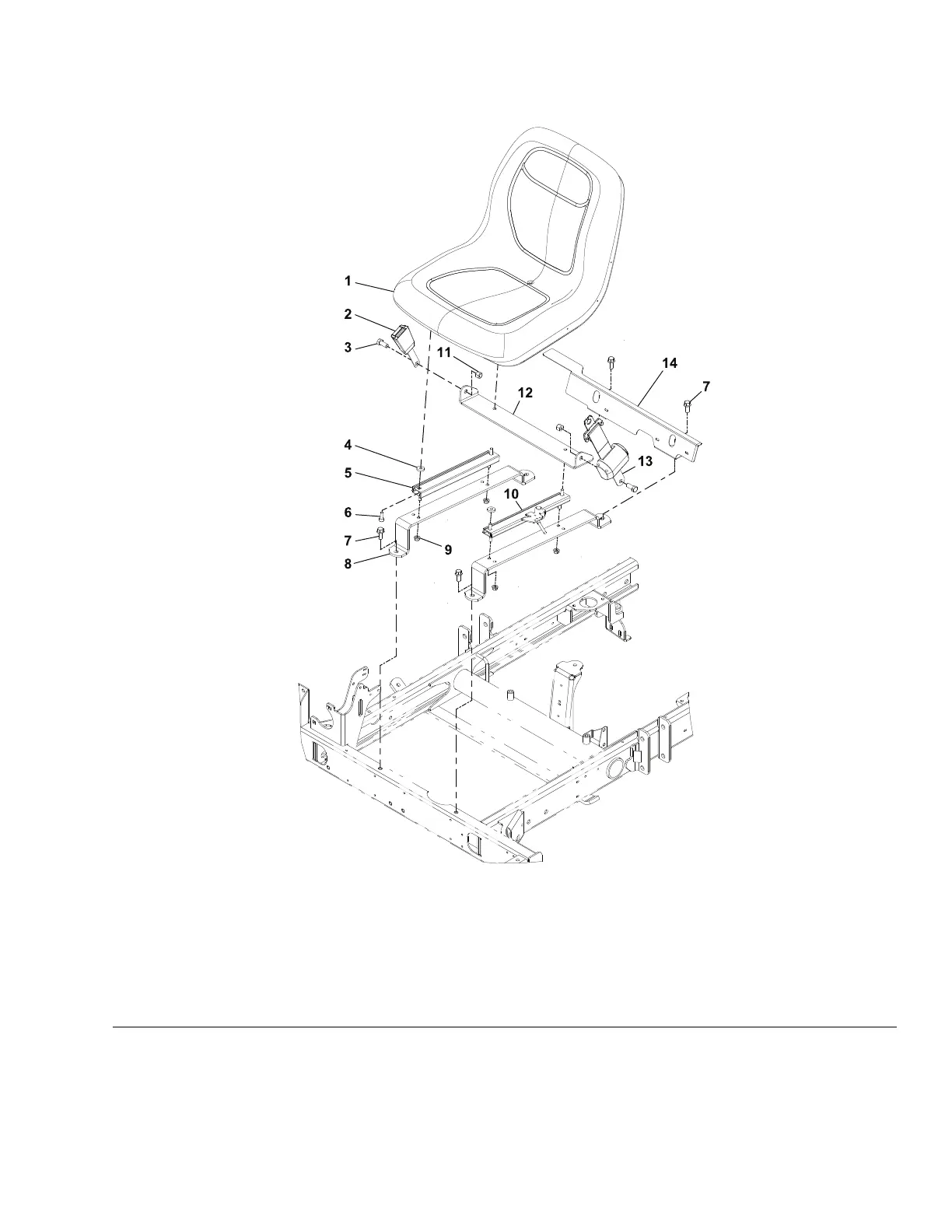

Figure149
1.Seatassembly6.Socketheadscrew(4each)11.Locknut(2each)
2.Seatbeltbuckle7.Flangeheadbolt(4each)12.Seatbeltbracket
3.Bolt(2each)8.Seatsupportstrap(2each)13.Seatbelt
4.Spacer(2each)9.Flangenut(4each)
14.Heatshield
5.Seatslider10.Seatadjuster
Reelmaster
®
3100-D/3105-D
Page7–5
Wheels,BrakesandChassis:ServiceandRepairs
20252SLRevA
