Configuring the EPW 400
OM 100.EPW 400.202002.en 105

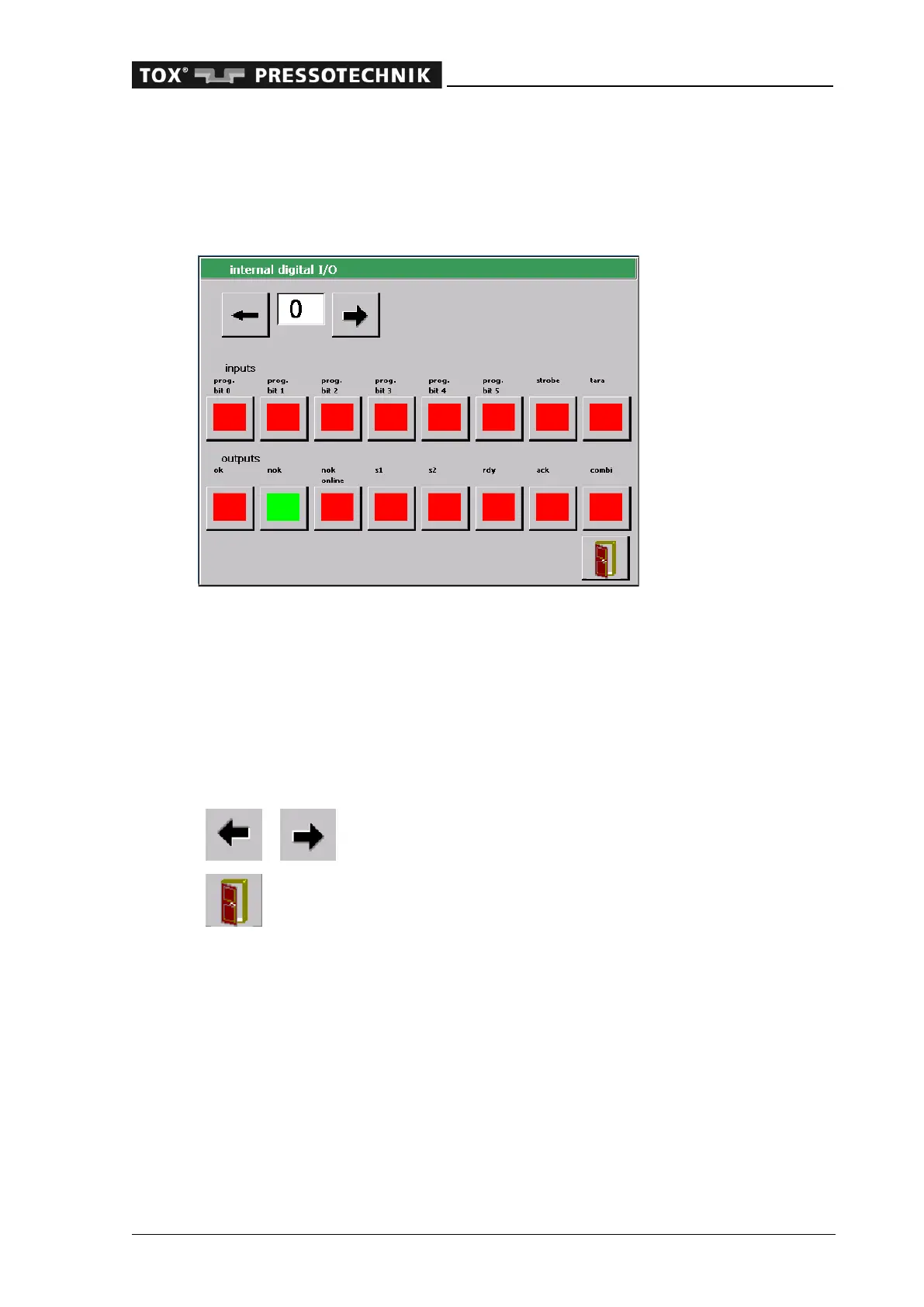

6.6.7 Internal digital I/O
An activated input/output is marked by a green rectangle, a deselected input/output
is marked by a red rectangle. The function of the occupied inputs and outputs is de-
scribed in clear text.
The status of the digital inputs on the EPW 400 is displayed.
The outputs to which a signal is currently being emitted by the
EPW 400 are displayed.
By tipping on the button of the corresponding output, the output is activated or
deactivated. The color of the rectangle will correspondingly change.
Changes are applied without further confirmation. The changes remain effective until
the 'Inputs/outputs' submenu is exited.
Using the arrow keys you may change between byte 0 and
byte 1.
To close the window, tap the 'Exit' button.
