Technical data
32 OM 100.EPW400.202002.en
3.3 Overview of wall-mounted version
3.3.1 Power supply
Connection
M12 connector
Pin
Voltage
Type
Designation
1 24 V DC i 24 V supply voltage
3 0 V DC i GND supply voltage
5 PE i PE

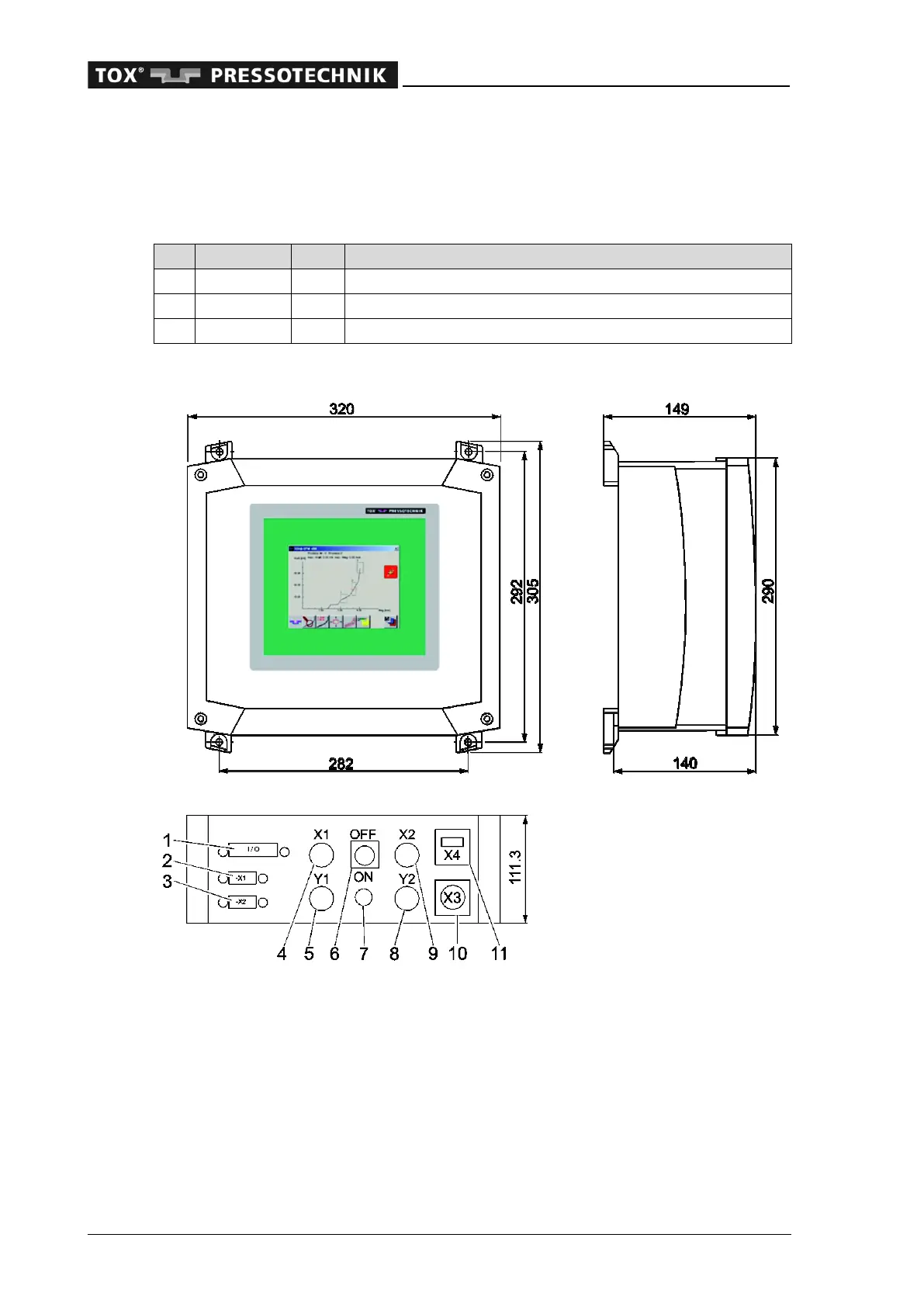

3.3.2 Dimensions of wall-mounted version
1
Input / output
7
Supply voltage 24 V DC
2
Profibus interface (optional)
8
Force transducer Y2 (only Version
22)
3
RS232 interface (optional)
9
Distance transducer X2 (only Ver-
sion 22)
4
Distance transducer X1
10
Ethernet interface
5
Force transducer Y1
11
USB interface
6
Main switch
