Technical data
34 OM 100.EPW400.202002.en

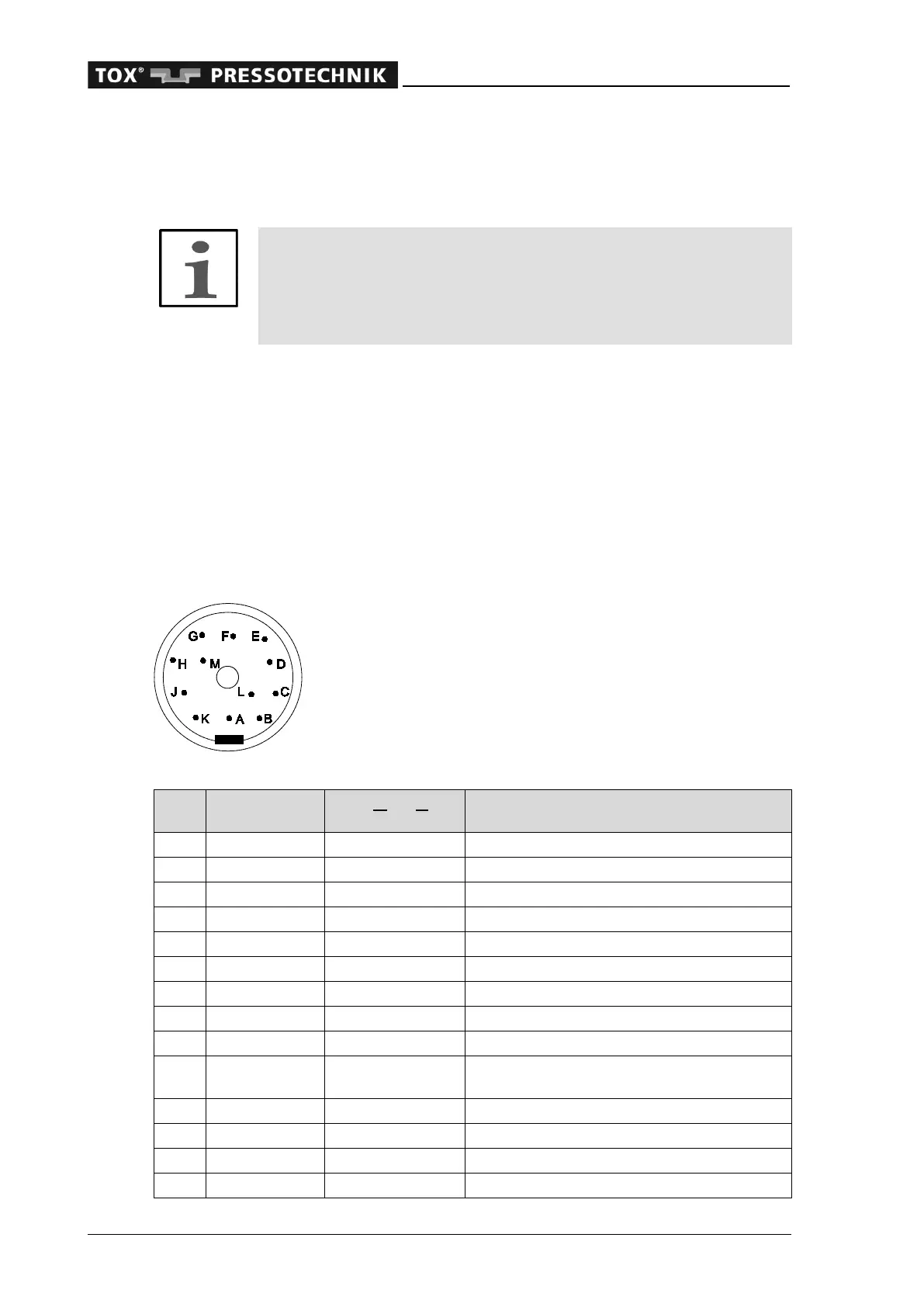

3.3.5 Standard wall-mounted housing: pin assignment, DMS force transducer
(channel Y)
Only hardware model EPW 400.202.0X (with DMS subprint)
Note
For hardware model EPW 400.022.0X (2-channel) the second ana-
log input card is installed for channel pair 2 X/Y!
The connections are occupied the same as for the first card.
(12-pin round socket)
The force measurement on channel Y is optionally carried out using a DMS force
transducer or a measuring sensor with standardized process signal 0 - 10 V.
Standardized measuring sensor
24 V ± 5%, max. 100 mA (x = 100 mA, y = 100 mA)
Pin assignment force signal (channel Y)
12-pin round socket
put
C V+ o Supply DMS V+
B V- o Supply DMS V-
f S- DMS i Measuring signal DMS -
G S+ DMS i Measuring signal DMS +
e F- DMS o Sensor cable DMS -
d F+ DMS o Sensor cable DMS+
j Shield o Shield
k 24 V DC o Auxiliary power for external measuring sen-
sor 24 V
a 0 V DC o Earth external
L Signal + i Input standardized measuring signal
m Signal - o Measuring signal earth
h Tare Signal tare
