TOX EPW400 User Manual

Technical data
18 OM 100.EPW400.202002.en
3.1.7 Ethernet
1 channel
Twisted pair (10/100BASE-T),
Transmission according to IEEE/ANSI 802.3, ISO 8802-3,
IEEE 802.3u
Transmission
speed
10/100 Mbit/s
Connecting line
Shielded,
at 0.14 mm²
Max. 300 mm
At 0.25 mm²:
max. 600 mm
Length
max. 100 mm
Cable
Shielded, impedance 100 Ω

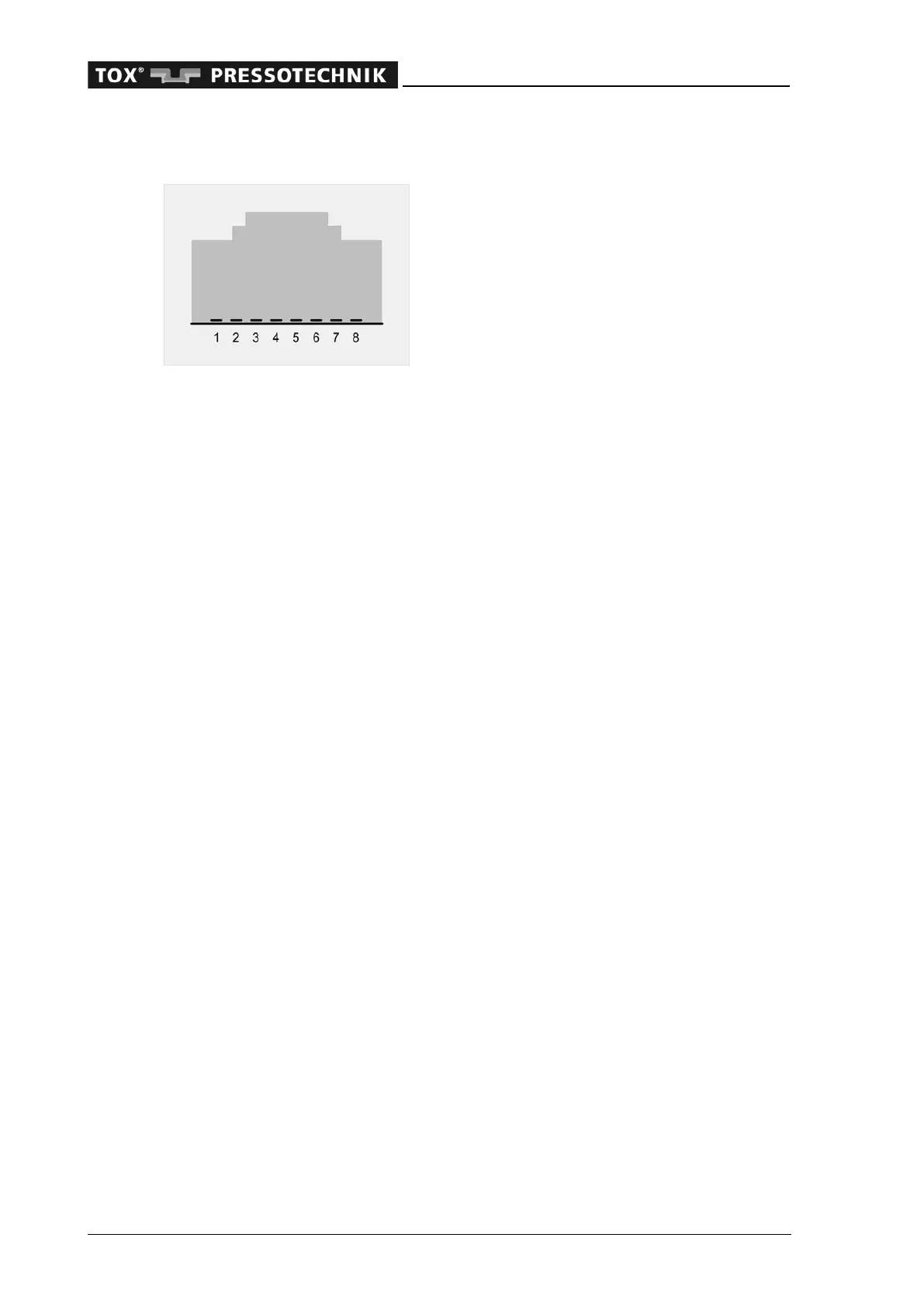

Connector
RJ45 (modular connector)
LED status indica-
tor
Yellow: transmis-
sion
Green: ready
3.1.8 Environmental conditions
Temperature
Operation
0 to +45°C
Storage
-25 to +70°C
Relative humidity without condensation (acc. to RH2) 5 to 90%
Vibrations according to
IEC 68-2-6
15 to 57 Hz,
Amplitude 0.0375 mm,
occasionally 0.075 mm
57 to 150 Hz,
Acceleration 0.5 g
occasionally 1.0 g
