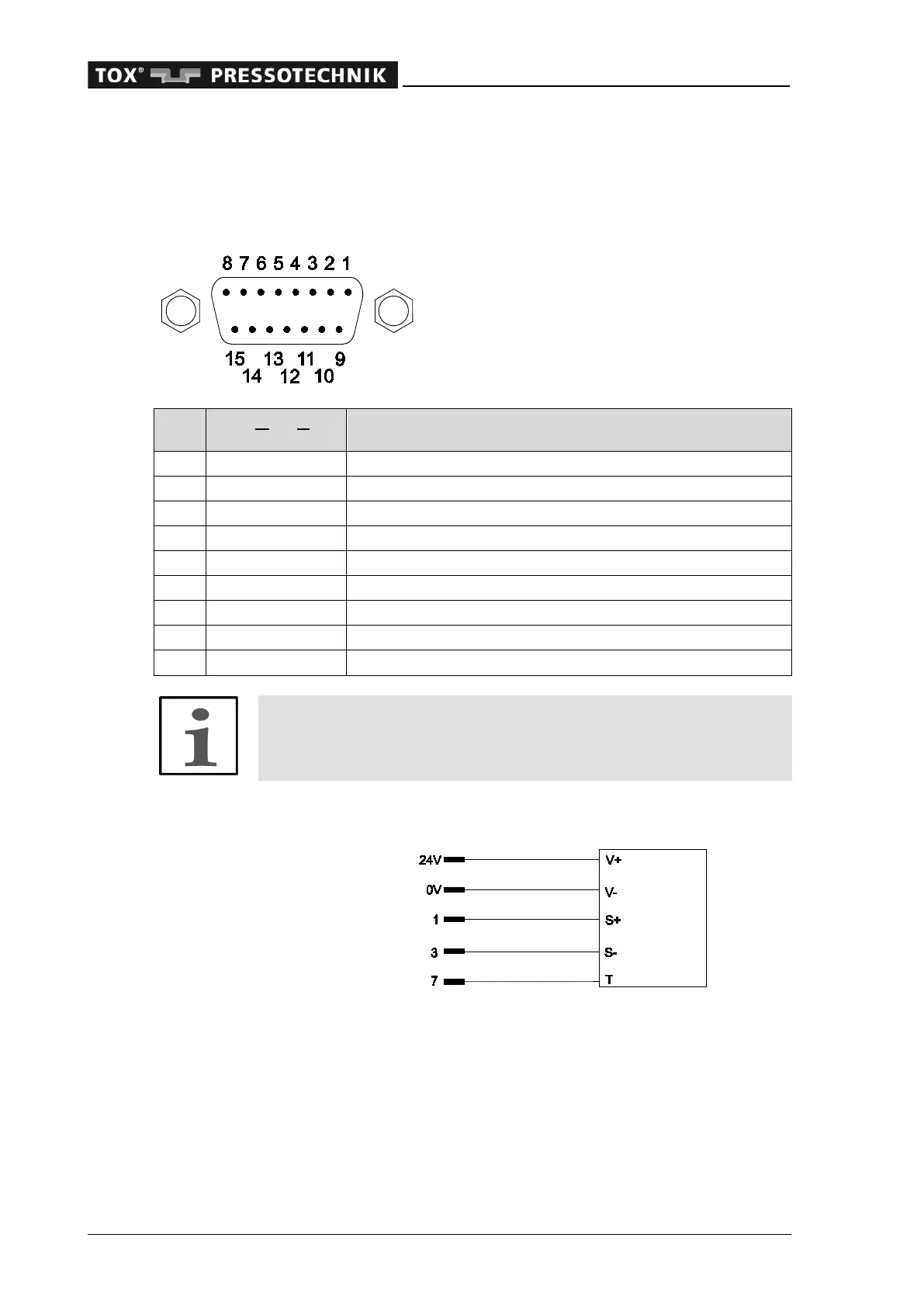

3.2.9 Built-in version: pin assignment, analog standard signals
Only hardware model EPW 400.002.1X (without DMS subprint)
Sub-D 15-pole female connector (designation analog I/O)
Pin Type Input/Out-
put
Analog signal
1 i Force signal 0 - 10 V channel Y /1
3 i Ground, force signal channel Y /1
4 i Travel signal 0 - 10 V channel X /2
6 i Ground, travel signal channel X /2
7 o Analog output 1: tare +10 V
8 o Ground
13 o Analog output 2: 0 - 10 V process-bound
14 o Ground
15 o +10 V sensor supply
Note
Hardware model (2-channel) Version 22 is not provided with EPW
400.XX2.1X!
Channel Y force transducer
Connection example of sensor with standard signal 0 - 10 V (ZKN with tare)
15-pin D-sub con-
nector, analog I/O
